|Profile Type:||Horizontal Corrugated Sheet Machine||Raw Material:||Galvanized Color Sheet G550|
|Rolling Speed:||0-15m/min||Material Thickness:||0.13-0.4mm|
|Roller Stations:||About 6 Stations||Motor:||11KW|
Roll Former Machine,
Roll Forming Equipment
G550Mpa High Strength Round Wave Steel Sheet Barrel Type Horizontal Corrugated Machine With Coil Thickness 0.18-0.4mm
Main Technical Data
1). Coil Material Thickness: 0.13-0.3mm
2). Feeding width: 910mm,1000mm,1200mm, or customized
3). Material: Galvanized color steel G550Mpa
4). Max. width: 4.5m
5). Roller stations: 6 stations
6). Roller diameter: 200mm, Material: 45# steel
7). Speed: 0-15m/min (Not including cuttingtime)
8). Voltage: 230V, 60Hz, 3 Phase
9). Motor: 11KW
10). Drive Type: By gears
11). Material of chain: 45# forged steel with frequency quenching
12). Material of cutting: Cr12Mov, with quench HRC58-62
Description of Horizontal Corrugated Sheet Roll Forming Machine
This high strength Round wave steel sheet horizontal corrugated roll forming machine is professional for the thin steel sheet with the Coil material thickness:0.18-0.4 mm, and with the material harness as high as 550 MPA, full hard of the material. The max width of this machine is 4.5 m. There are s sets of the solid axle rollers of this machine, and the roller diameters is about 300 mm , machine material is: 45# steel, speed is about 15 pieces / min. and the machine weight is about 8.5 Ton.The machine voltage is 230 v,60 hz,3 ph and 380 v,50 hz,3 ph, The voltage can be customized made according to customer's requirements.
More than 10 years' rich experience!
a.Specialized in Manual Curved Arch Roof Sheet Forming Machine;
b.Keeping improving the quality.
|2. Reasonable price||
We can save your money from every part!
a. Low labor cost;
b. Convenient transportation;
c. Complete supporting industries.
|3. Easy to operate||
c. Reliable working
|4. ONE-Years warranty, whole life service.||
Keep troubles far away from you!
Within the ONE-YEARS period, we could offer the replacement parts to the client free of charge for any parts damaged due to quality problems

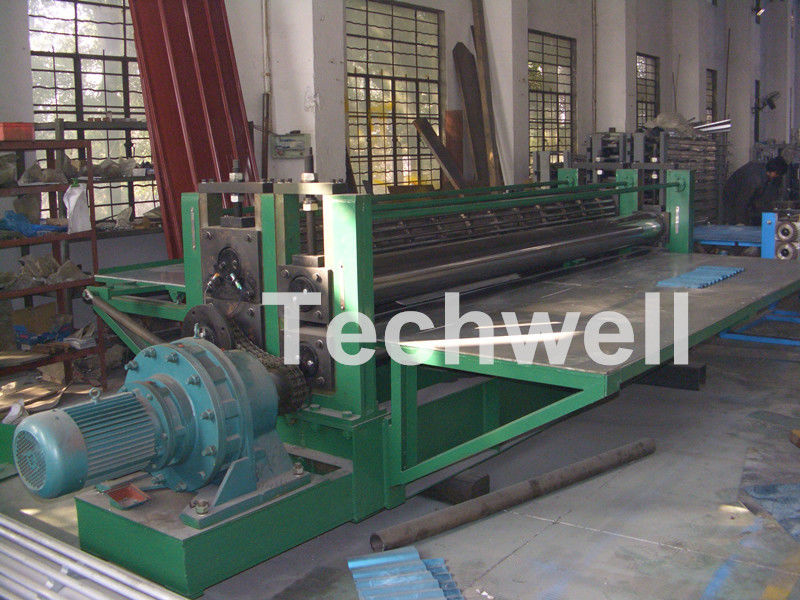

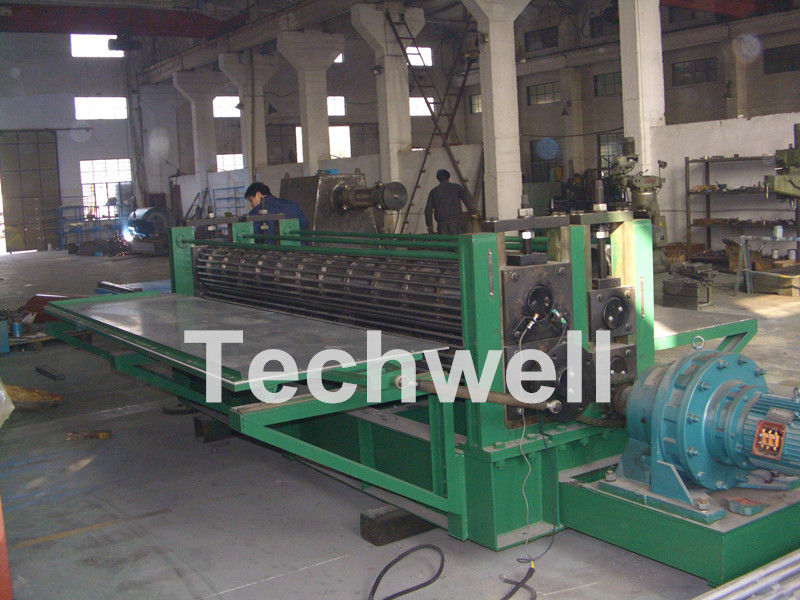

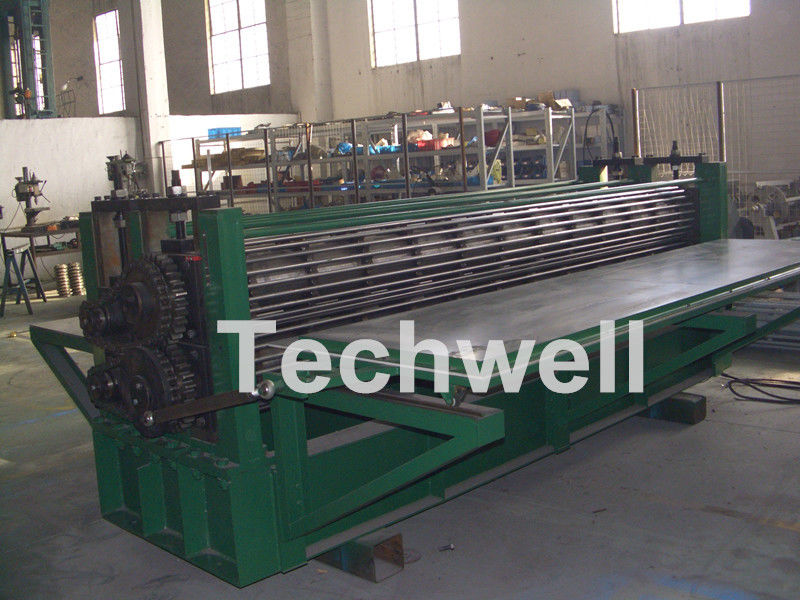

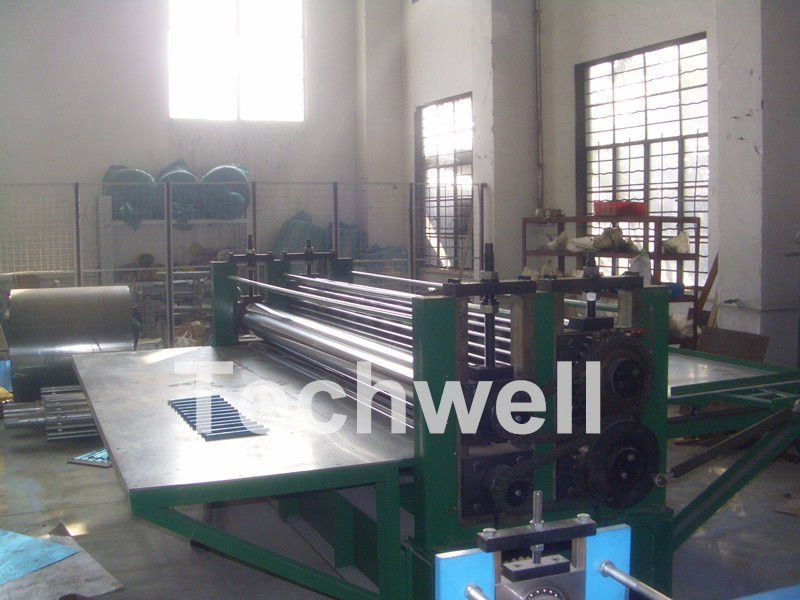

More Machine Photos
Workshop Machine Photos
