Light Steel Truss Stud Roll Forming Machine Thickness 0.4-1.0mm , 70mm Axis Diameter

Light Steel Truss Stud Roll Forming Machine Thickness 0.4-1.0mm , 70mm Axis Diameter
Light Steel Truss Stud Roll Forming Machine Thickness 0.4-1.0mm , 70mm Axis Diameter Light Steel Truss Stud Roll Forming Machine Thickness 0.4-1.0mm , 70mm Axis Diameter Light Steel Truss Stud Roll Forming Machine Thickness 0.4-1.0mm , 70mm Axis Diameter Light Steel Truss Stud Roll Forming Machine Thickness 0.4-1.0mm , 70mm Axis Diameter

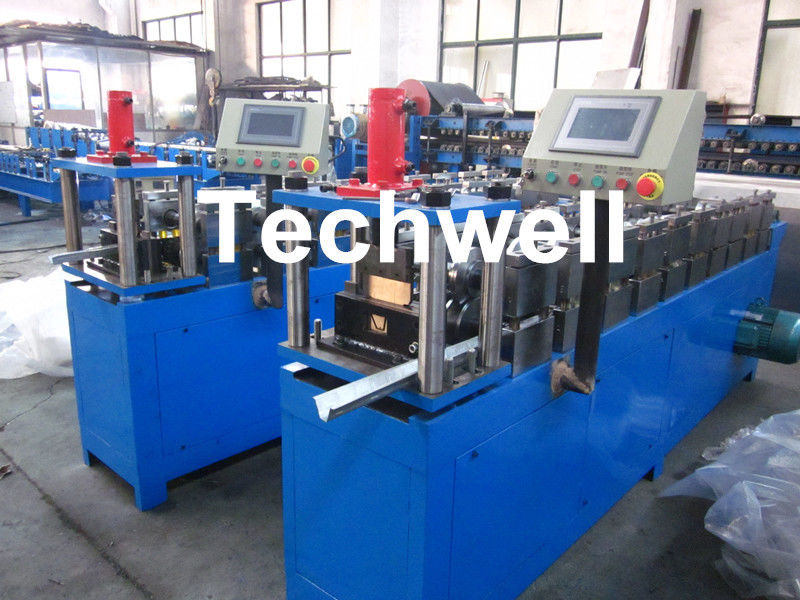

Large Image :  Light Steel Truss Stud Roll Forming Machine Thickness 0.4-1.0mm , 70mm Axis Diameter

Product Details:
Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-ST65
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Detailed Product Description
Material: GI, PPGI Material Thickness: 0.4-1.0mm
Cutting Material: Cr12Mov Cutting Type: Hydraulic Cutting
Operate Type: Touch Screen Button Voltage: 380V,50HZ,3Phase
High Light:

Stud and Track Roll Forming Machine

,

Steel Stud Roll Forming Machine

Light Steel Truss Roll Forming Machine With Material Thickness 0.4-1.0mm, 70mm Axis Diameter



   Main Technical Parameters



  • Main motor power; 7.5KW
  • Hydraulic station power: 3KW
  • Strength Yield: Q235
  • Forming station: 10-14steps
  • Roller material: 45# steel hard chrome plate with quenched treatment
  • Length of production line: 4.5m
  • Diameter of shaft: 75mm
  • Shaft material: 40Cr with tempering treatment
  • Material of blade: Cr12
  • Material thickness: 0.4-1.0mm
  • Length of tolerance: +/-1.5mm
  • Processing speed: 0-15m/min
  • Control system: PLC
  • Voltage: 380V,50HZ,3Phase or as customer's requirements



   Main Components



  • Decoiler / Uncoiler ----------------------------------------------------1 Unit
  • Feeding Device -------------------------------------------------------1 Unit
  • Main Roll Forming Machine------------------------------------------1 Unit
  • Hydraulic punching device ----------------------------------------- 1 Unit
  • Hydraulic cutting device -------------------------------------------- 1 Unit
  • Hydraulic Station ----------------------------------------------------- 1 Unit
  • PLC computer control ------------------------------------------------ 1 Unit
  • Output table ------------------------------------------------------------ 1 Unit



   Reference Profile Drawing



Light Steel Truss Stud Roll Forming Machine Thickness 0.4-1.0mm , 70mm Axis Diameter 0
Light Steel Truss Stud Roll Forming Machine Thickness 0.4-1.0mm , 70mm Axis Diameter 1

Light Steel Truss Stud Roll Forming Machine Thickness 0.4-1.0mm , 70mm Axis Diameter 2



   Applications



Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten,



roof truss, c truss, light weight steel truss...





   Competitive Advantages



1.Best design oriented for your special requirements

2. Durable and widely used products

3.Simple to operate when assemble

4.Easy to handle the products

5.Direct manufacturer, provide with high quality and best price.

6.Provide sample in free.

7.Cutting service.

8.Products and design solution supplied fast and freely

9.Best design oriented for your special requirements

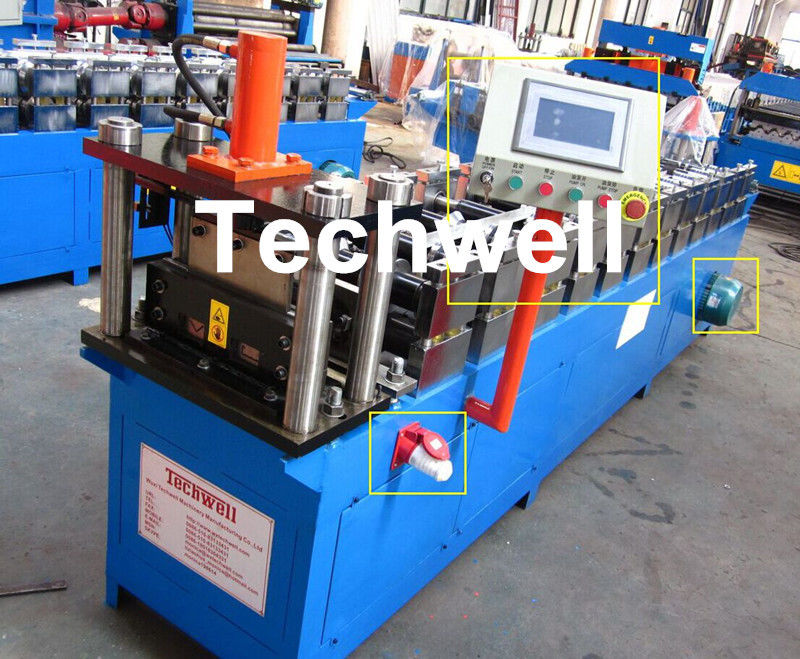

   Machine Reference Pictures



Light Steel Truss Stud Roll Forming Machine Thickness 0.4-1.0mm , 70mm Axis Diameter 3



   Pictures of The Loading The Container



Light Steel Truss Stud Roll Forming Machine Thickness 0.4-1.0mm , 70mm Axis Diameter 4
