PU Cold Roll Forming Equipment , Roof Panel Roll Forming Machine PLC Electrical Control

PU Cold Roll Forming Equipment , Roof Panel Roll Forming Machine PLC Electrical Control

Roll Former Machine

Roll Forming Equipment

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE, ISO

Model Number:

TW-RWM

Contact Us

Request A Quote
Product Details
Coil Width:
Custom-made, 1000mm Or 1250mm
Yield Strength:
250-350Mpa
Forming Stations:
About 18 Stations (Depend On Profiles)
Profile Description:
Roof Sheet For Making The Pu Panels
Shaft Material:
45# High Grade Steel Tempering Treatment (HB220-260)
Roller Material:
45# High Grade Steel, And Roller Surface With Hard Chrome ≥ 0.05mm
Product Description





PU Cold Roll Forming Equipment , Roof Panel Roll Forming Machine PLC Electrical Control





   Main Technical Specifications



  • Raw Material: GI, PPGI
  • Yield Strength: 250-350Mpa
  • Material thickness: 0.3-0.8mm
  • Material width: depend on customer’s requirement
  • Decoiler Type: manual or automatical type ( depend on customer’s requirement )
  • Main Motor Power: 7.5 Kw
  • Hydraulic Motor Power: 4.0Kw
  • Forming Station: 13-20 stations ( depend on profile drawing )
  • Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
  • Main Axis Material: High grade 45#, quenched and heat treatment.
  • Axis Diameter: ¢ 75mm
  • Working Speed: 0-15 m/min
  • Transporting Type: Chain Transmission
  • Heat Treatment of Cutting Blade: HRC 50-60
  • Type of Cutting: Hydraulic cutting
  • Material Of Cutting Blade: Cr12Mov



   Main Components



  • Decoiler / Uncoiler-----------------------------------------------------------------------------1 Unit
  • Feeding Guide---------------------------------------------------------------------------------1 Unit
  • Main Roll Forming-----------------------------------------------------------------------------1 Unit
  • Hydraulic Cutting Device---------------------------------------------------------------------1 Unit
  • Hydraulic Station-------------------------------------------------------------------------------1 Unit
  • PLC Computer Control Board---------------------------------------------------------------1 Unit
  • Support Tables---------------------------------------------------------------------------------1 Unit



   Working Flowing



Decoiler / Uncoiler --- Pinch Feeding --- Main Roll Forming --- Hydraulic Cutting --- Support Table





   Competitive Advantages



  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

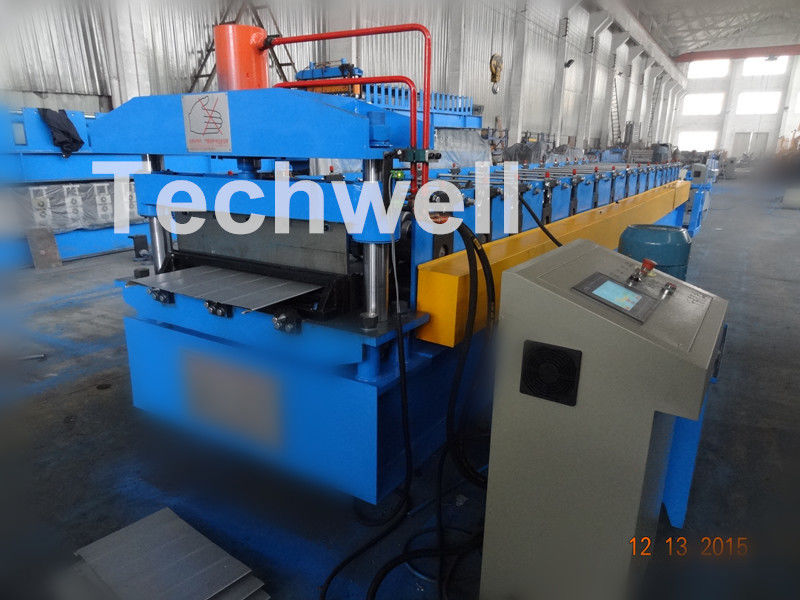

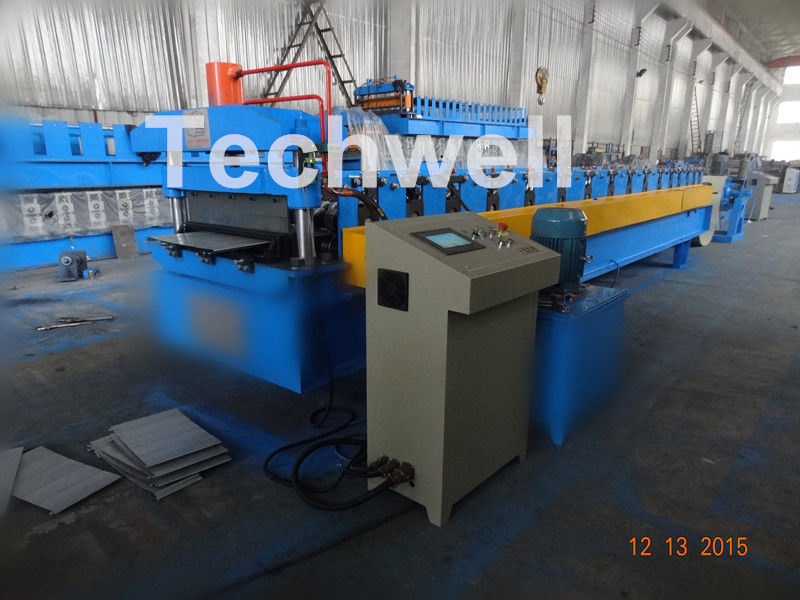

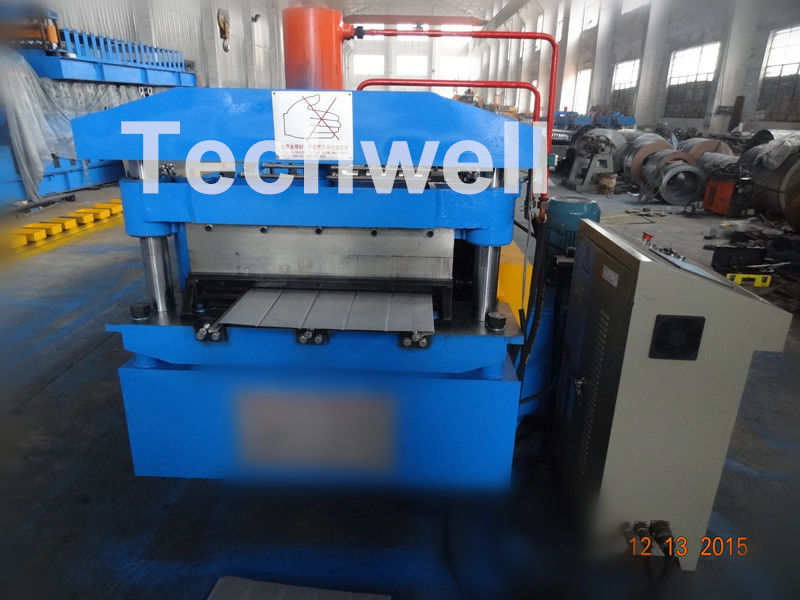

   Machine Pictures



PU Cold Roll Forming Equipment , Roof Panel Roll Forming Machine PLC Electrical Control 0





   Factory Pictures



PU Cold Roll Forming Equipment , Roof Panel Roll Forming Machine PLC Electrical Control 1
