7.5KW Power PU Panel Roof Cold Roll Forming Machine With 13-20 Forming Stations

7.5KW Power PU Panel Roof Cold Roll Forming Machine With 13-20 Forming Stations

Roll Former Machine

Roll Forming Equipment

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE, ISO

Model Number:

TW-RWM

Contact Us

Request A Quote
Product Details
Decoiler Type:
Manual Or Hydraulic Type
Roller Stations:
About 18 Stations
Drive Type:
Chain Drive
Coil Width:
Custom-made, 1000mm Or 1250mm
Yield Strength:
250-350Mpa
Profile Description:
Roof Sheet For Making The Pu Panels
Product Description





7.5KW Power PU Panel Roof Cold Roll Forming Machine With 13-20 Forming Stations





   Technical Specifications



1). 5 Ton Manual Decoiler

1. Decoiler Type: Manual type decoiler

2. Weight Capacity of Decoiler: 5Ton

3. Manual expanding

4. Passive uncoiling

5. I.D: 508mm





2). Main Roll Forming Part

1. Forming material thickness: 0.3-0.8mm

2. Forming material type: PPGI, GI

3. Machine frame: high grade steel welded and tempering treatment

4. Forming structure: Welded wall plate strcuture

5. Forming motor: 7.5KW

6. Shaft material: 45# high grade steel tempering treatment (HB220-260)

7. Shaft diameter: 75mm

8. Roller material: 45# high grade steel, and roller surface with hard chrome 0.05mm

9. Forming speed: about 0-15m/min (excluding cutting time)

10. Forming station: ≈ 18 stations





3). Hydraulic Cutting & Hydraulic Station

1. Cutting type: Hydraulic cutting after roll forming, Burr-free cutting

2. When cutting, Machine stop

3. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62

4. Hydraulic station power: 4KW

5. Hydraulic pressure: 15Mpa

6. Cutting Tolerance: +/-1.5mm





   Working Flowing Chart



Decoiler / Uncoiler --- Pinch Feeding --- Main Roll Forming --- Hydraulic Cutting --- Support Table



7.5KW Power PU Panel Roof Cold Roll Forming Machine With 13-20 Forming Stations 0





   Main Components



Decoiler 1 Unit
Feeding Guide 1 Unit
Main Roll Forming Machine 1 Unit
Hydraulic Cutting Device 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control 1 Unit
Run-out Table 1 Unit

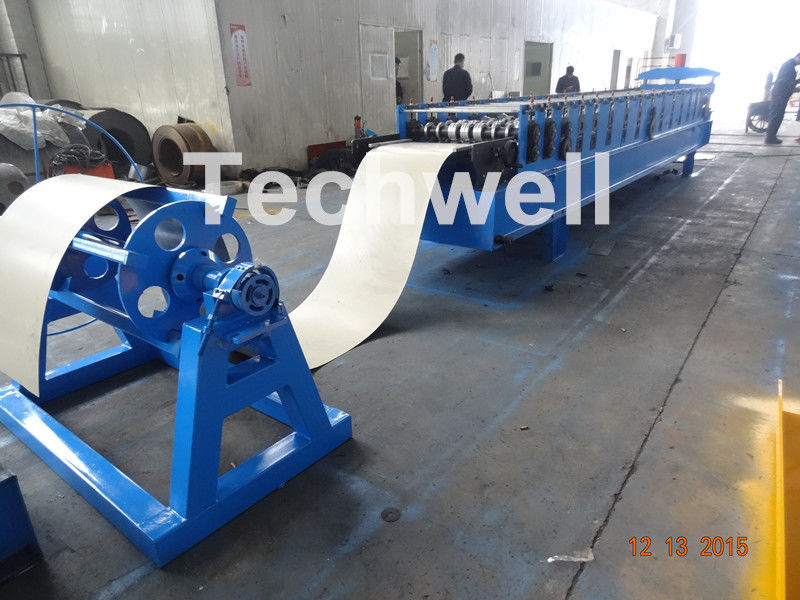

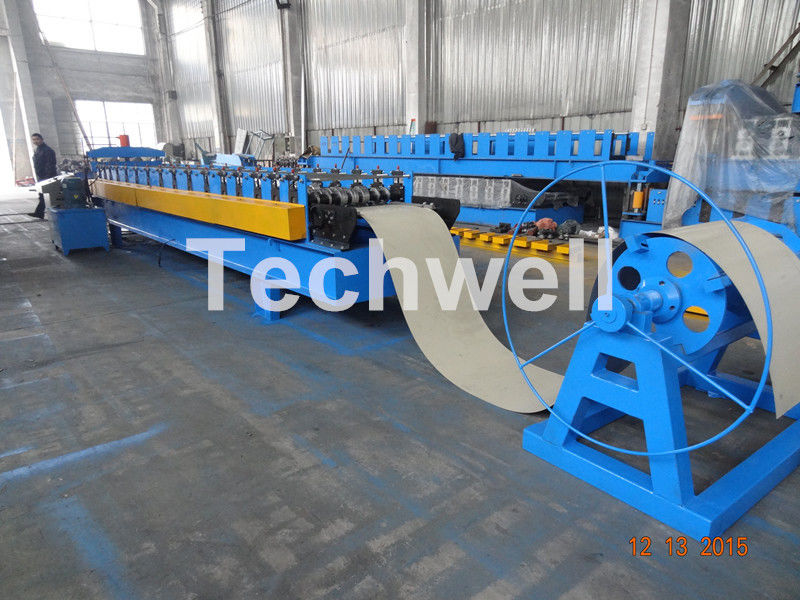

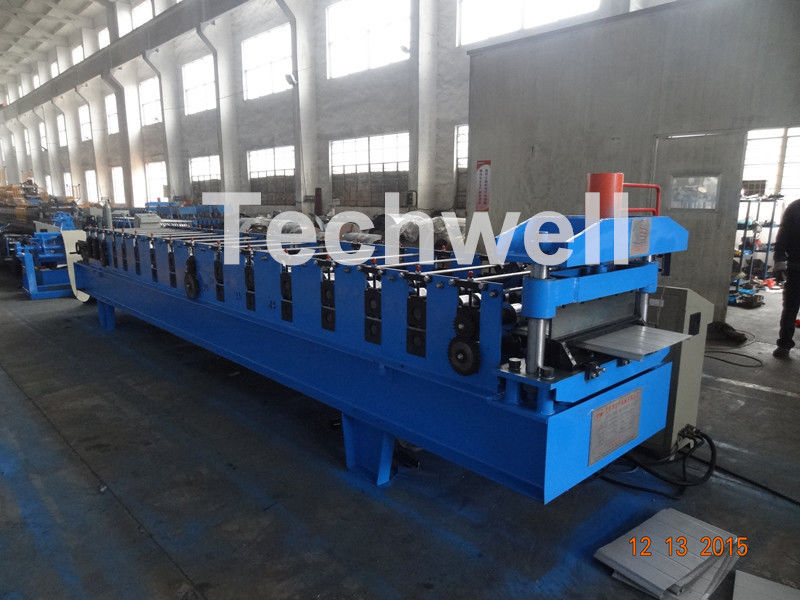

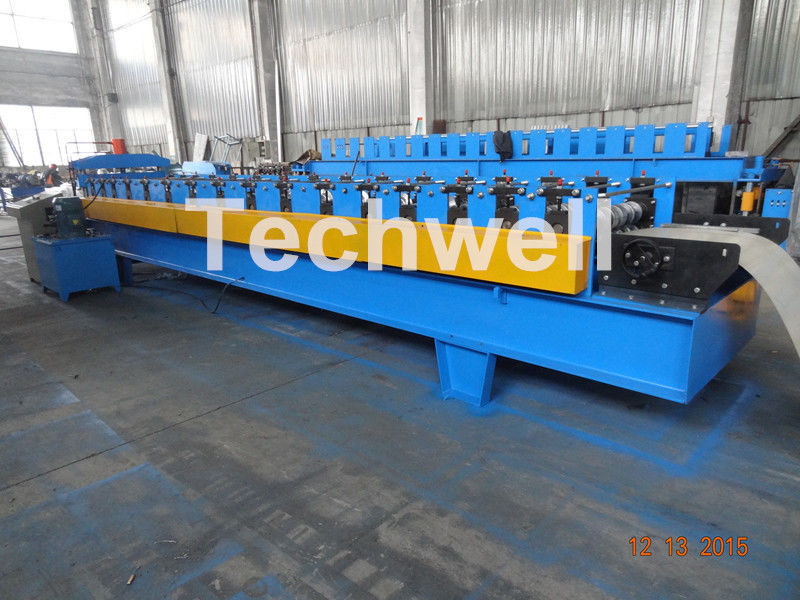

   More Machine Pictures



7.5KW Power PU Panel Roof Cold Roll Forming Machine With 13-20 Forming Stations 1
