0.3-0.8Mm Thick Color Steel Roll Forming Machine / Pu Panels Cold Rolled Forming Machines

0.3-0.8Mm Thick Color Steel Roll Forming Machine / Pu Panels Cold Rolled Forming Machines

Roll Former Machine

Roll Forming Equipment

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE, ISO

Model Number:

TW-RWM

Contact Us

Request A Quote
Product Details
Coil Thickness:
0.3-0.8mm
Forming Material:
PPGI, Color Steel, GI.
Decoiler Type:
Manual Or Hydraulic Or Auto Type
I.D:
508-610mm
Cutting:
Hydraulic Cutting
PLC:
PANASONIC Brand
Product Description



0.3-0.8Mm Thick Color Steel Roll Forming Machine / Pu Panels Cold Rolled Forming Machines





   Technical Specifications



Item Roofing Sheet Roll Forming Machine For Making PU Panels
Coil Material Thickness 0.3-0.8mm
Yield Strength 250-350 Mpa
Material PPGI, Color Steel, GI.
Decoiler / Uncoiler Decoiler Type Manual or Hydraulic or Auto Type
Coil Width Max. 1250mm
I.D 508-610mm
Main Roll FormingMachine Forming Stations 16-18 Stations ( Depend on Profiles )
Roller material 45# steel, surface coated with 0.05mm hard chrome
Diameter of shaft 76mm
Shaft material High grade 45# steel
Drive type Chain transmission
Forming speed 0-15m/min
Main power 7.5KW
Cutting Device Cutting type Hydraulic cutting
Cutting Die Material Cr12Mov steel, HRC58-62
Cutting power 4.0KW
CuttingTolerance 10m+/-1.5mm
Encoder OMRON Brand
PLC Electrical Control System PLC PANASONIC Brand
Inverter YASKAWA Brand
Touch screen PANASONICE
Operation type Touch screen & Button
Hydraulic Station Hydraulic station Famous Chinese brand
Runout Tables Table type Simple nonpower type
Function To support the finished panels





   Main Components



  • Decoiler / Uncoiler-----------------------------------------------------------------------------1 Unit
  • Feeding Guide---------------------------------------------------------------------------------1 Unit
  • Main Roll Forming-----------------------------------------------------------------------------1 Unit
  • Hydraulic Cutting Device---------------------------------------------------------------------1 Unit
  • Hydraulic Station-------------------------------------------------------------------------------1 Unit
  • PLC Computer Control Board---------------------------------------------------------------1 Unit
  • Support Tables---------------------------------------------------------------------------------1 Unit



   Working Flowing



0.3-0.8Mm Thick Color Steel Roll Forming Machine / Pu Panels Cold Rolled Forming Machines 0





   Competitive Advantages



  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

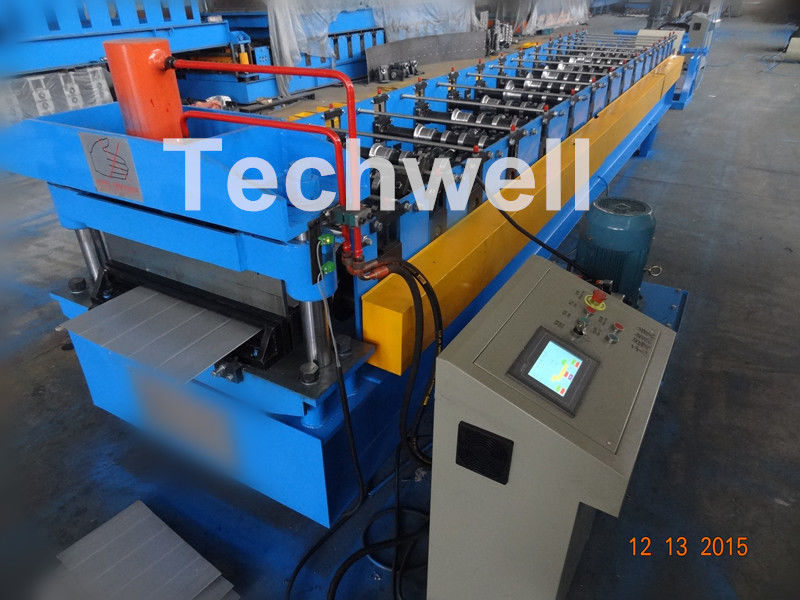

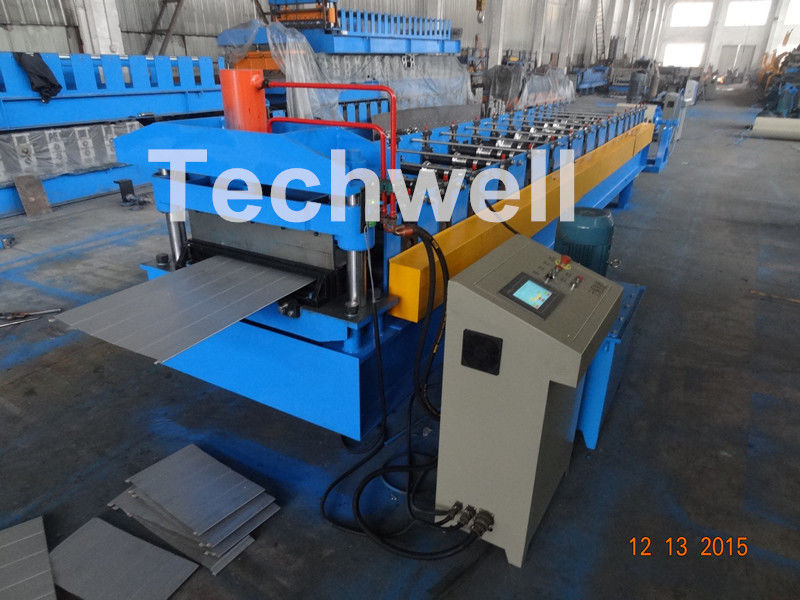

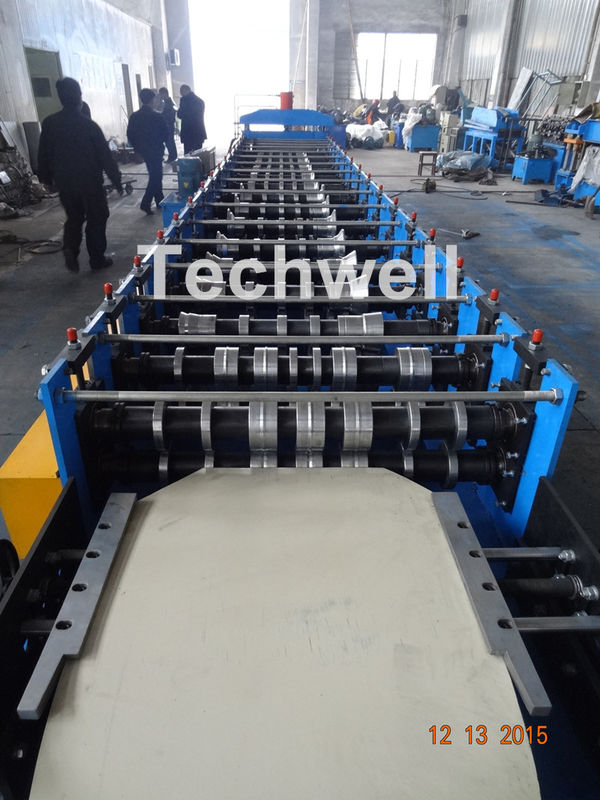

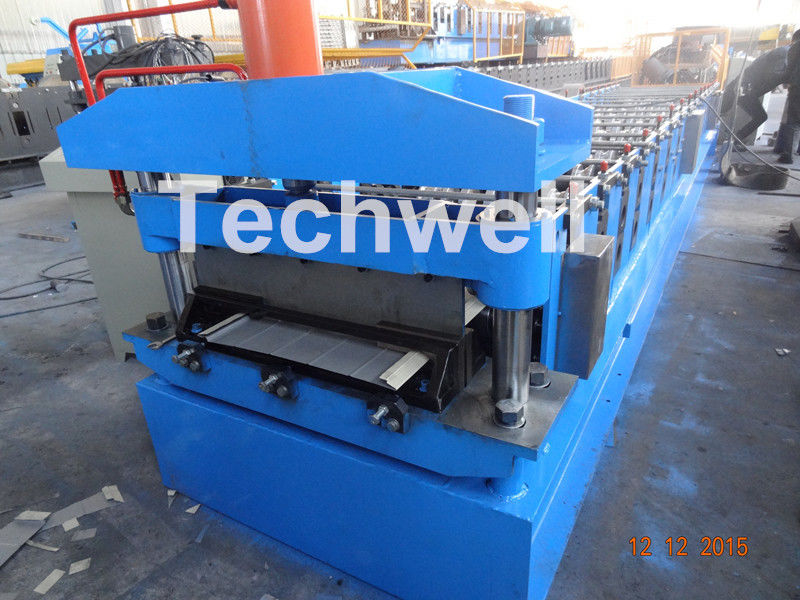

   More Machine Pictures



0.3-0.8Mm Thick Color Steel Roll Forming Machine / Pu Panels Cold Rolled Forming Machines 1
