Manual Double-Head Uncoiling Machine With Passive Uncoiling For Supporting The Coil Strip
This producing line uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.The products of it are used as the roof tile and wall panel outside of building, as well as decorative sheet and ceiling board inside of building, to increase the beauty and durability of the roof tile and wall panel.The molding plate surface smooth and not easy to be marked when it is being stamped. So it is easy to install.
| Suitable Material | Material | GI, PPGI, PPGL |
| Width | 1000mm | |
| Thickness | 0.2-0.8mm | |
| Material of rollers | High grade 45# forged steel, surface hard chromium plating | |
| Rows of rollers | 11 stations | |
| Material of shafts | High grade 45# forged steel | |
| Diameter of shafts | 70mm | |
| Material of cutting blade | Cr12 Heat Treatment | |
| Cutting Mode | Hydraulic Guide Column | |
| Speed | 20-25m/min | |
| Side plate thickness | 16 mm | |
| H steel | 300 mm | |
| Chain size | 1 inch | |
| Total power | 4 kw | |
| Voltage | 380V 50HZ 3Phase | |
| Appearance size (About) | 5800mm*1300mm*1500mm | |
| Weight(About) | 2.5 tons | |
| Length measurement | Encoder | |
| Control mode | PLC | |
| Operating mode | Button + Touch screen | |
Description of Manual Double-Head Uncoiling Machine
|
1). Manual decoiler for roll forming machine is often used together with the simple roll forming machine. |
|
2). For the decoiler, the mainly work is for supporting the coil. For some small machine, coil is quite light and easy to change. Meanwhile the customer does not have machine working speed requirements then choosing the manual decoiler is the right option. |
|
3). For the manual decoiler it is quite cheaper compared with motor decoiler and hydraulic decoiler. But the manual decoiler can not supply power and motor to the machine. Meanwhile for changing coil, you need to do all the work manual. |
Main Technical Specifications
1). Decoiler type: Manual double-head decoiler machine
2). Weight capacity of decoiler: 3Ton / 5Ton
3). Coil I.D: 480-520mm
4). Coil O.D: Max. 1500mm
5). Width of strip: 120-350mm (Depend on customer's requirement)
6). Expansion Type: Manual expanding, passive uncoiling
Competitive Advantages
| 1. Professional |
More than 10 years' rich experience! a.Specialized in Manual Curved Arch Roof Sheet Forming Machine; b.Keeping improving the quality. |
| 2. Reasonable price |
We can save your money from every part! a. Low labor cost; b. Convenient transportation; c. Complete supporting industries. |
| 3. Easy to operate |
More Competitive! c. Reliable working |
| 4. OEM / ODM |
Customers’ design, color & logo are accepted! Our outstanding experts and skilled workers are devoting their hard working, to ensure the machine with high quality. |
| 5. ONE-Years warranty, whole life service. |
Keep troubles far away from you! Within the ONE-YEARS period, we could offer the replacement parts to the client free of charge for any parts damaged due to quality problems . |

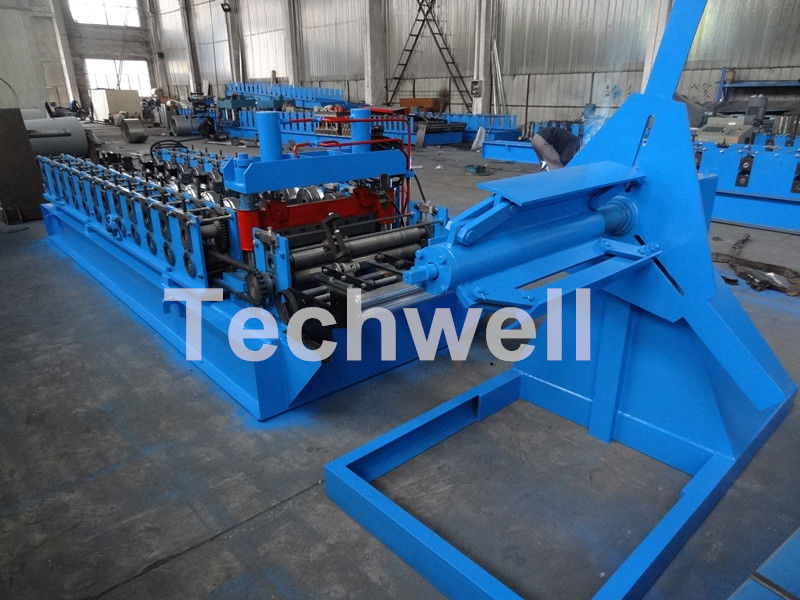

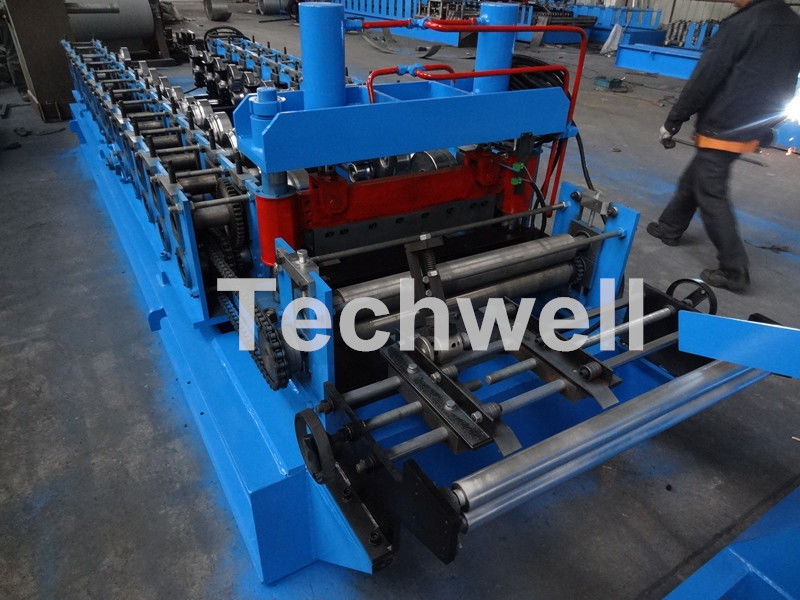

Machine Photos

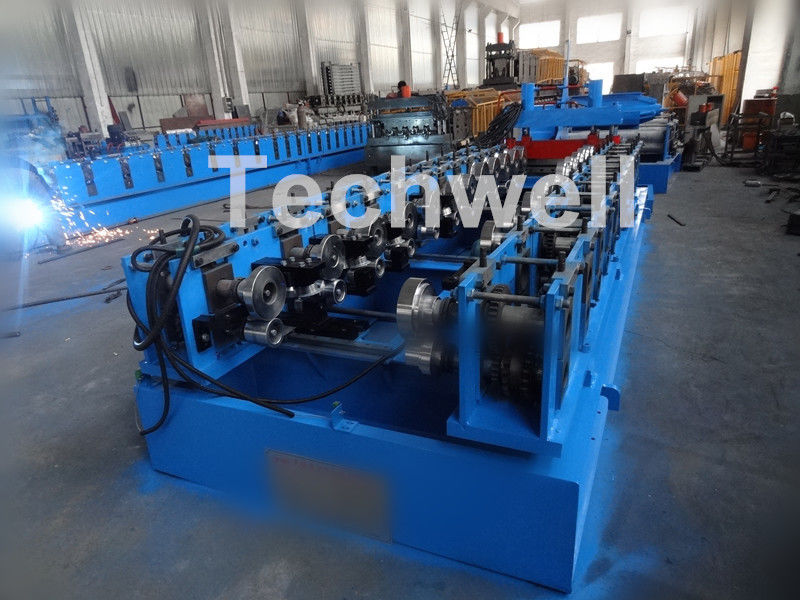

Workshop Machine Photos
