Hydroponics Growing Portable Gutter Machine For Planting Strawberries, Tomatoes

Hydroponics Growing Portable Gutter Machine For Planting Strawberries, Tomatoes

Hydroponics Growing Portable Gutter Machine

0.6mm Portable Gutter Machine

0.6mm mobile gutter machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE, ISO

Model Number:

TW-GM600

Contact Us

Request A Quote
Product Details
Forming Material Thickness:
0.6mm
Material Type:
Painted GI.
Material Length:
Cut To The Set Length
Forming Stations:
8 Stations
Machine Type:
Mobile Caterpillar Chassis
Function:
For Hydroponics Growing Gutter
Product Description

Portable Hydrpponics Growing Gutter Machines For Planting Strawberries and Tomatoes



As we all know Hydroponics is the soil-less method of growing crops, vergetables and fruits, and is an important technology, especially in Middle East countries, Afria where water is scarrce and food production can be hindered. And also it is widely used in China with large population. Hydroponic farming has proved and elegant solution, with crops growing more efficiently than in typical agricultural conditions.



Hydroponics Growing Portable Gutter Machine For Planting Strawberries, Tomatoes 0



Wuxi Techwell is the First in researching, developing, designing and producing Portable gutter machines in China for Hydroponics hanging gutters for planting fruits, such as strawberries, tomatoes, sweat bell pepper and cucumber in a soilless enviroment. And we also provide products and services to greenhouse investors with our self-manufactured portable greenhouse gutter machines. We provide both gutter products and hanging parts, standing parts. The cultivation of many fruits and vegetables in a soillesss enviroment has alleiated the futre problem of food shortages. And TECHWELL team are very happy to be working within this industry.



Hydroponics Growing Portable Gutter Machine For Planting Strawberries, Tomatoes 1





   Main Technical Specifications of Caterpillar Mounted Portable Gutter Machine



1). Gutter Pofiles



Hydroponics Growing Portable Gutter Machine For Planting Strawberries, Tomatoes 2



  Profile Name

  Gutter Profile
  Material Type   Painted Galvanized Steel
  Material Thickness   0.6mm
  Material Width   600mm
  Profile Length   Cut to required length
  • This gutter profile widely used gutter model for the production of tomatoes, strawberries, cucumbers and sweet bell peppers.
  • And this profile is used in both standing support systems and hanging systems.

























2).  The Characteristic Specification of Portable Gutter Machine





  • This mobile greenhouse gutter forming machine is movable caterpillar mounted type machine, which can do site-working at the desired length. And the machine base can rotate 360° and move forward and backword for special site-working requirement.



  • And the forming machine base structure is quick interchangeable Cassette tyoe structure for different profiles required. And if in future the user want to add new more profiles, just need to buy the cassette type forming part and cutting device.



  • Forming Station: 8 Station



  • Shaft Diameter: φ75mm



  • Main Power: 7.5KW



  • Hydraulic Power: 11KW



  • Caterpillar Chassis Working Type: Hydraulic drive move forward, backward and rotate 360°.



  • PLC: PANASONIC Brand



  • Inverter: YASKAWA Brand





    Layout Drawing of Portable Gutter Machine



Hydroponics Growing Portable Gutter Machine For Planting Strawberries, Tomatoes 3

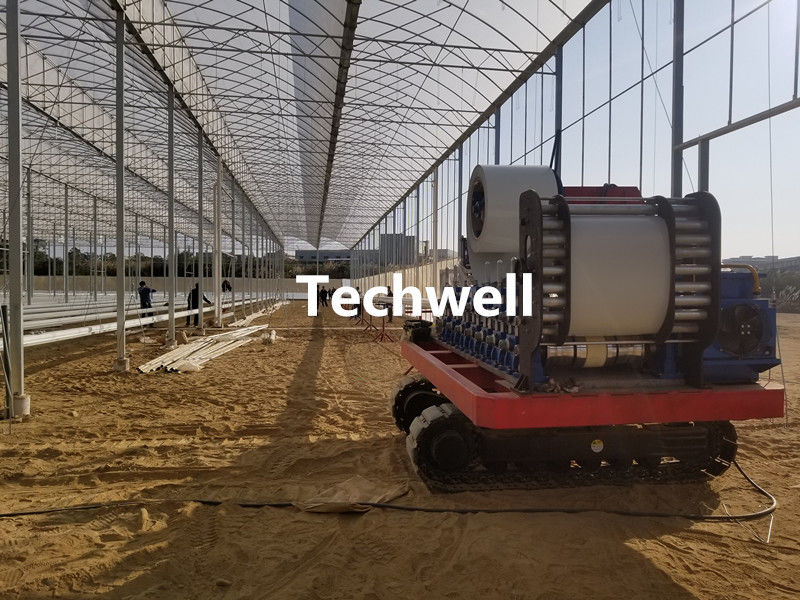

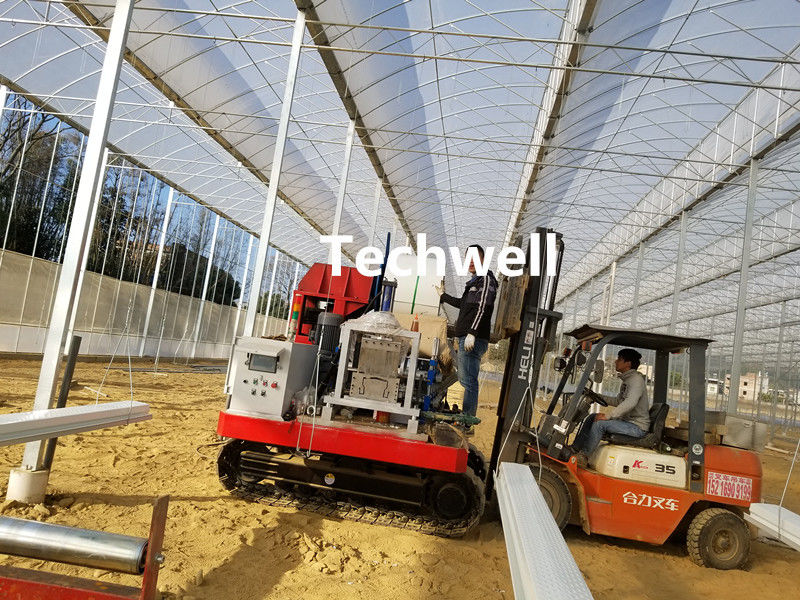

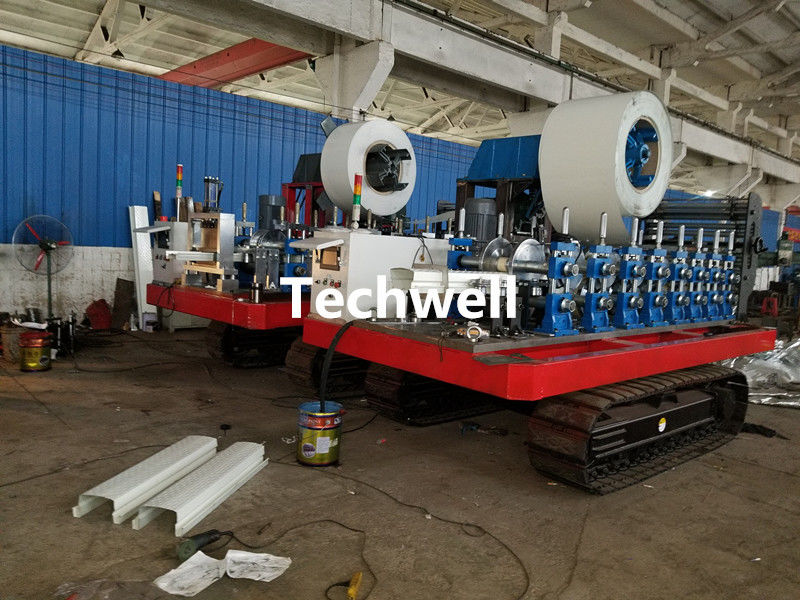

   Mobie Greenhouse Gutter Forming Machine Pictures





Hydroponics Growing Portable Gutter Machine For Planting Strawberries, Tomatoes 4
