600mm Portable Greenhouse Gutter Roll Former with Movable Caterpillar Chassis Rotating 360°

600mm Portable Greenhouse Gutter Roll Former with Movable Caterpillar Chassis Rotating 360°

Greenhouse portable seamless gutter machine

0.6mm portable seamless gutter machine

0.6mm Greenhouse gutter machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE, ISO

Model Number:

TW-GM600

Contact Us

Request A Quote
Product Details
Forming Material Thickness:
0.6mm
Material Type:
Painted GI.
Material Length:
Cut To The Set Length
Forming Stations:
8 Stations
Machine Type:
Mobile Movable Type
Function:
For Hydroponics Greenhouse
Product Description

Portable Greenhouse Gutter Roll Former with Movable Caterpillar Chassis Rotating 360°



As we all know Hydroponic Cultivation is the soil-less method of growing crops, vergetables and fruits, and it is an important technology, especially in GCC, Afria countries where water is scarce and crop growing is hindered. And also Hydroponics is widely used in China with large population. Hydroponic farming has proved and elegant solution, with crops growing more efficiently than in typical agricultural conditions.





   Working Video of Portable Gutter Roll Former













   Main Technical Specifications of Caterpillar Mounted Portable Gutter Machine

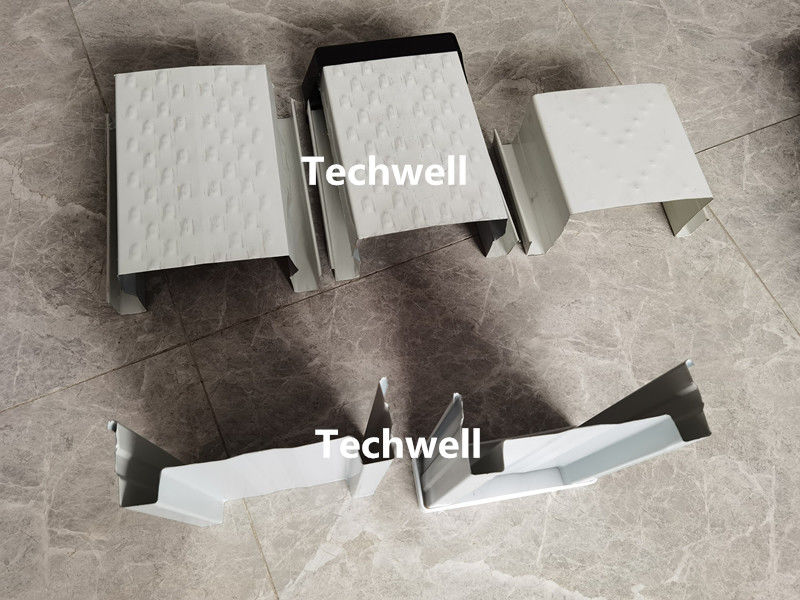

1). Gutter Pofiles



600mm Portable Greenhouse Gutter Roll Former with  Movable Caterpillar Chassis Rotating 360° 0



  Profile Name

  Greenhouse Gutter Profile
  Material Type   Painted Galvanized Steel
  Material Thickness               0.6mm
  Material Width   600mm
  Profile Length   Cut to required length

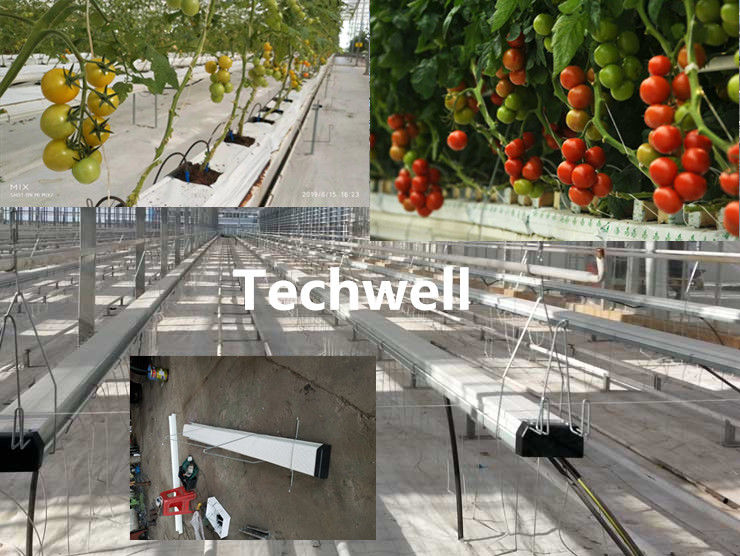

  • This gutter profile widely used gutter model for the production of tomatoes, strawberries, cucumbers and sweet bell peppers.
  • And this profile is used in both standing support systems and hanging systems.























2).  The Characteristic Specification of Portable Gutter Making Machine





  • This portable greenhouse gutter forming machine is movable caterpillar mounted type machine, which can do site-working at the desired length. And the machine base can rotate 360° and move forward and backword for special site-working requirement.



  • And the forming machine base structure is quick interchangeable Cassette tyoe structure for different profiles required. And if in future the user want to add new more profiles, just need to buy the cassette type forming part and cutting device.



  • Forming Station: 8 Station



  • Shaft Diameter: φ75mm



  • Main Power: 7.5KW



  • Hydraulic Power: 11KW



  • Caterpillar Chassis Working Type: Hydraulic drive move forward, backward and rotate 360°.



  • PLC: PANASONIC Brand



  • Inverter: YASKAWA Brand





Wuxi Techwell is the First in researching, developing, designing and producing Portable gutter machines in China for Hydroponics hanging gutters for planting fruits, such as strawberries, tomatoes, sweat bell pepper and cucumber in a soilless enviroment. And we also provide products and services to greenhouse investors with our self-manufactured portable greenhouse gutter machines. We provide both gutter products and hanging parts, standing parts. The cultivation of many fruits and vegetables in a soillesss enviroment has alleiated the futre problem of food shortages. And TECHWELL team are very happy to be working within this industry.



600mm Portable Greenhouse Gutter Roll Former with  Movable Caterpillar Chassis Rotating 360° 1



600mm Portable Greenhouse Gutter Roll Former with  Movable Caterpillar Chassis Rotating 360° 2

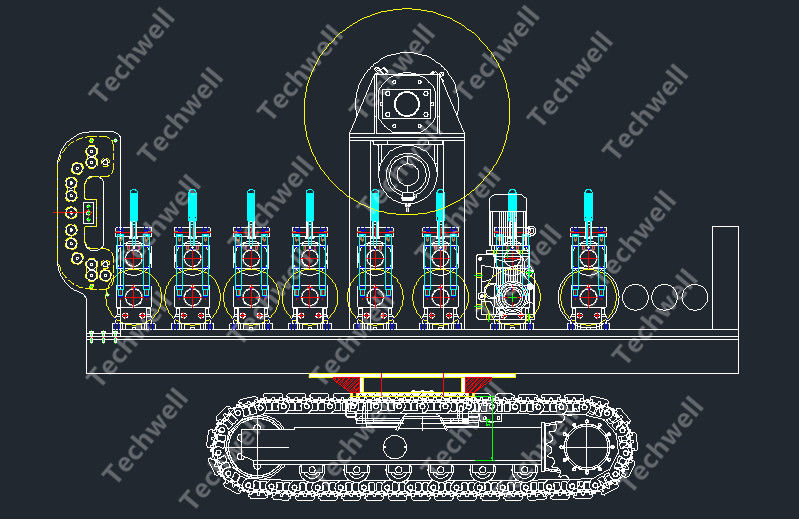

    Layout Drawing of Portable Gutter Machine



600mm Portable Greenhouse Gutter Roll Former with  Movable Caterpillar Chassis Rotating 360° 3

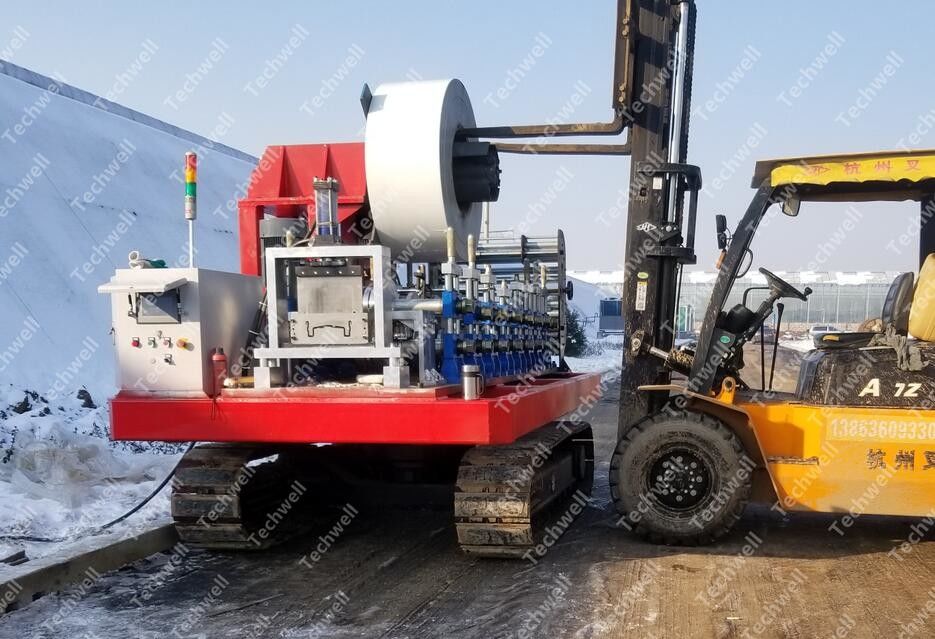

   Mobie Greenhouse Gutter Forming Machine Pictures





600mm Portable Greenhouse Gutter Roll Former with  Movable Caterpillar Chassis Rotating 360° 4
