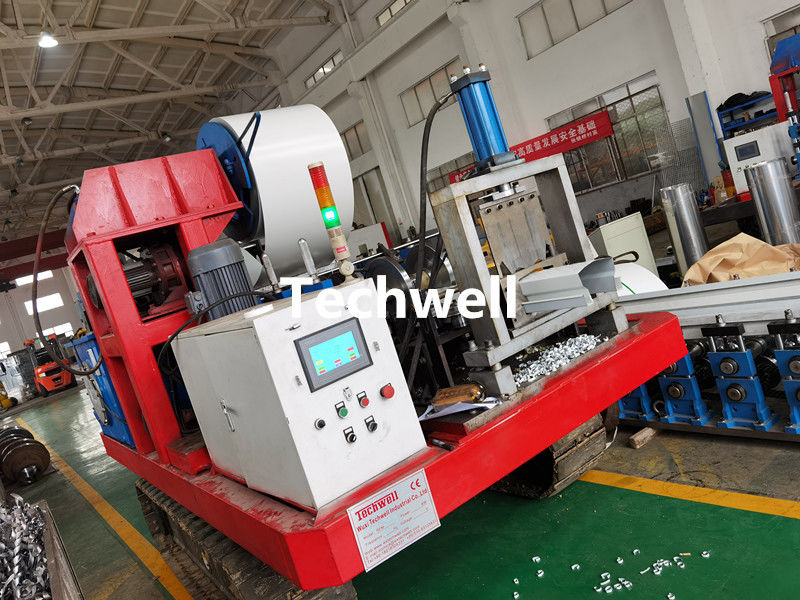

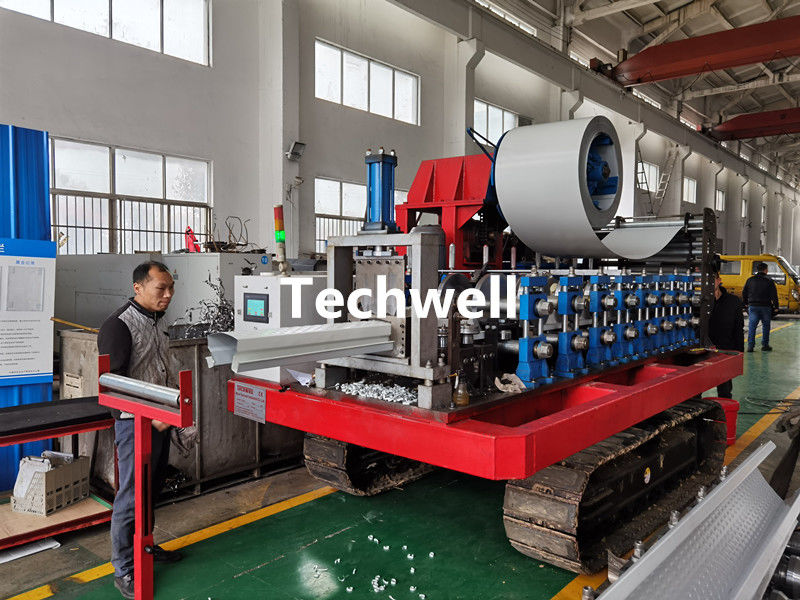

Mobile Greenhouse Tomato Portable Seamless Gutter Machine Caterpillar Mounted

Mobile Greenhouse Tomato Portable Seamless Gutter Machine Caterpillar Mounted

Greenhouse Portable Seamless Gutter Machine

Mobile Portable Seamless Gutter Machine

Caterpillar Mounted Greenhouse Gutter Machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE

Model Number:

TW-GM600

Contact Us

Request A Quote
Product Details
Forming Material Thickness:
0.6mm
Material Type:
Painted Galvanized
Material Width:
600mm
Material Length:
Cut To The Set Length
Forming Stations:
8 Stations
Machine Type:
Mobile Caterpillar Mounted Type
Application:
For Tomato Growing Gutter
Product Description

Mobile Greenhouse Tomato Growing Gutter Machine, Movable Cassette Type, Caterpillar Mounted Type



1). Our greenhouse gutter machines are cassette type, the machine can be interchange for making both growing gutter profiels for strawberry and tomato... No matter you buy machine for one profile or more than one profiles, the design structure of machines are cassette type, if the user want to add more profiles in near future, the user only need to just buy extra cassette forming machine, no need to buy a whole machine to saving cost for users.

Mobile Greenhouse Tomato Portable Seamless Gutter Machine Caterpillar Mounted 0



2). As you know, WUXI TECHWELL is the first to research, develop, produce the greenhouse gutter machines in China and we also do projects of greenhouse to support the whole hanging, standing growing gutter system, We have got highly approved in the greenhouse market no matter the machine or finished growing gutter system. So our gutter machines have characteristic of strong stability and most reasonable matching of the Caterpillar Chassis, hydraulic system & PLC control board to realize the pressure adjustable of each action of forward, backward, rotate no matter when loading with or without coil on the machine when walking on the different roads, through different projects practice and developing.

2). The way to roll forming of the profiles, Caterpillar Chassis, PLC control system and Hydraulic system are special developing for the mobile greenhouse gutter machines through constant project practice and exploration, we can see our machines are most stability, and strong, and the finished profiles are high quality.



Mobile Greenhouse Tomato Portable Seamless Gutter Machine Caterpillar Mounted 1



4). As we all know Hydroponics is the soil-less method of growing crops, vergetables and fruits, and is an important technology, especially in Middle East countries, Afria where water is scarrce and food production can be hindered. And also it is widely used in China with large population. Hydroponic farming has proved and elegant solution, with crops growing more efficiently than in typical agricultural conditions.



Mobile Greenhouse Tomato Portable Seamless Gutter Machine Caterpillar Mounted 2



   Main Technical Specifications of Caterpillar Mounted Portable Gutter Machine

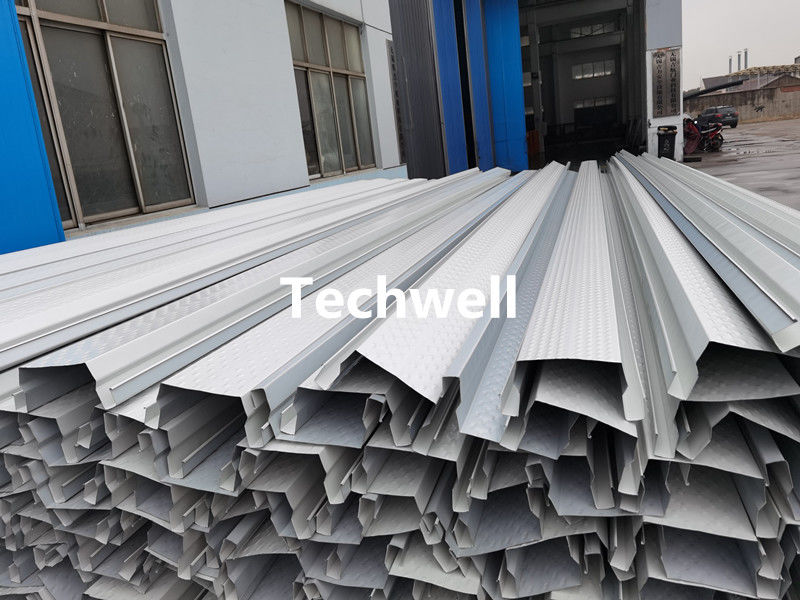

1). Gutter Pofile



Mobile Greenhouse Tomato Portable Seamless Gutter Machine Caterpillar Mounted 3



  Profile Name

  Gutter Profile
  Material Type   Painted Galvanized Steel
  Material Thickness   0.6mm
  Material Width   600mm
  Profile Length   Cut to required length
  • This gutter profile widely used gutter model for the production of tomatos, strawberries, cucumber, bell pepper and other fruits.
  • And this profile is used in both standing and hanging support systems.

























2).  The Characteristic Specification of Portable Gutter Machine





  • This mobile greenhouse gutter forming machine is movable caterpillar mounted type machine, which can do site-working at the desired length. And the machine base can rotate 360° and move forward and backword for special site-working requirement.



  • And the forming machine base structure is quick interchangeable Cassette tyoe structure for different profiles required. And if in future the user want to add new more profiles, just need to buy the cassette type forming part and cutting device.



  • Forming Station: 8 Station



  • Shaft Diameter: φ75mm



  • Main Power: 7.5KW



  • Hydraulic Power: 11KW



  • Caterpillar Chassis Working Type: Hydraulic drive move forward, backward and rotate 360°.



  • PLC: PANASONIC Brand



  • Inverter: YASKAWA Brand



    Layout Drawing of Portable Gutter Machine



Mobile Greenhouse Tomato Portable Seamless Gutter Machine Caterpillar Mounted 4



    The Caterpillar Chassis



Mobile Greenhouse Tomato Portable Seamless Gutter Machine Caterpillar Mounted 5

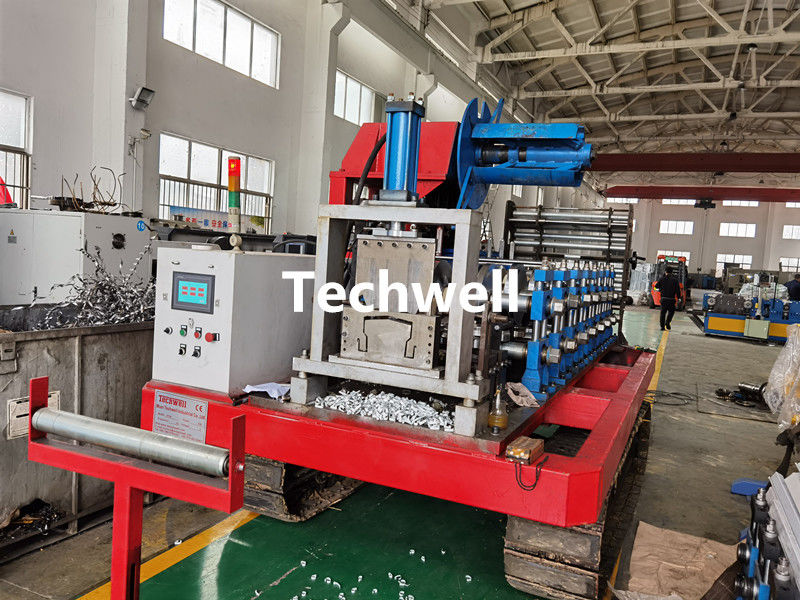

   Mobie Greenhouse Gutter Forming Machine Pictures



Mobile Greenhouse Tomato Portable Seamless Gutter Machine Caterpillar Mounted 6

Mobile Greenhouse Tomato Portable Seamless Gutter Machine Caterpillar Mounted 7

Mobile Greenhouse Tomato Portable Seamless Gutter Machine Caterpillar Mounted 8

Mobile Greenhouse Tomato Portable Seamless Gutter Machine Caterpillar Mounted 9

Mobile Greenhouse Tomato Portable Seamless Gutter Machine Caterpillar Mounted 10

Mobile Greenhouse Tomato Portable Seamless Gutter Machine Caterpillar Mounted 11
