Corrugated Long Span Roof Roll Forming Machine with Chain Drive and PANASONIC Transducer

Corrugated Long Span Roof Roll Forming Machine with Chain Drive and PANASONIC Transducer

metal roof roll forming machine

Roof Sheet Roll Forming Machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE

Model Number:

TW-RWM

Contact Us

Request A Quote
Product Details
Weight Capacity Of Decoiler:
5 Ton
Material:
Galvanised Coil
Material Thickness:
0.3-0.7mm
Forming Station:
13-20
Heat Treatment Of Cutting Blade:
HRC 50-60
Material Of Cutting Blade:
C R 12
Product Description



Corrugated Long Span Roof Roll Forming Machine with Chain Drive and PANASONIC Transducer



   Technical Data of Long Span Corrugated Roof Panel Roll Forming Machine





 Item  Corrugated Roof Sheet Roll Forming Machine
 Coil Material                                        Thickness  0.3-0.8mm
 Coil width  Custom-made, 1000mm or 1200mm or 1250mm
 Yield Strength       250-350 Mpa
 Material  PPGI, Color Steel, GI.
 Decoiler / Uncoiler  Coil Width  Max. 1250mm
 I.D  508-610mm
 O.D  Max. 1500mm
 Corrugated Roof Roll Forming Machine  Forming Stations  16 Stations ( Depend on Profiles )
 Roller material   45# steel, surface coated with 0.05mm  hard chrome
 Diameter of shaft  76mm
 Shaft material  High grade 45# steel
 Drive type  Chain transmission
 Forming speed  0-15m/min
 Main power  5.5KW
 Cutting                                                          Cutting type  Hydraulic cutting
 Cutting power  3KW
 CuttingTolerance  10m+/-1.5mm
 Encoder  OMRON Brand
 Electrical control  PLC                                 PANASONIC Brand or Custom-made
 Inverter  YASKAWA Brand or Custom-made
 Touch screen  PANASONICE or Custom-made
 Operation type  Touch screen & Button
 Hydraulic Station  Hydraulic station   Famous Chinese brand
 Runout Table  Table type  Simple nonpower type
 Function  To support the finished panels





   Components of Corrugated Sheet Roll Forming Machine



 Decoiler / Uncoiler  1 Unit
 Feeding Guide  1 Unit
 Main Corrugated Sheet Roll Forming Machine   1 Unit
 Hydraulic Cutting Device  1 Unit
 Hydraulic Station  1 Unit
 PLC Computer Control Board  1 Unit
 Output Table  2 Units



   Reference Corrugated Profile Drawings



Corrugated Long Span Roof Roll Forming Machine with Chain Drive and PANASONIC Transducer 0



   TECHWELL Advantage



  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience



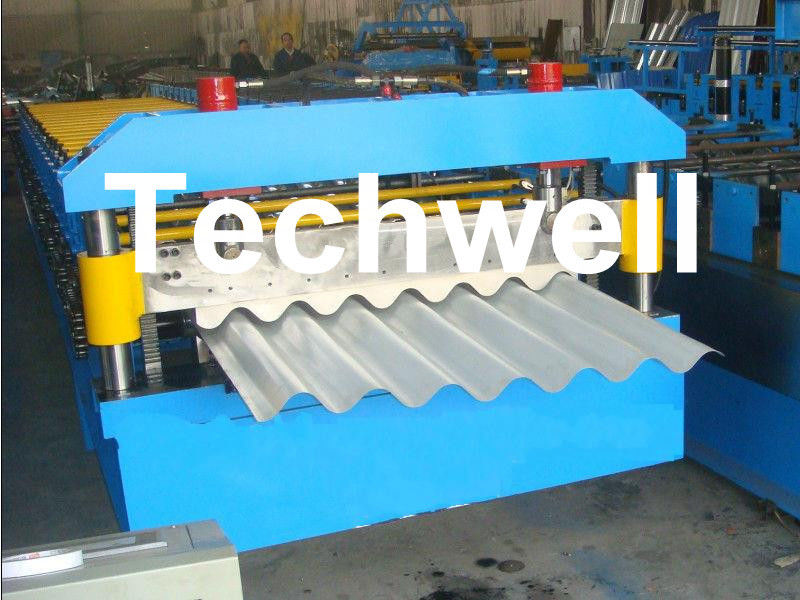

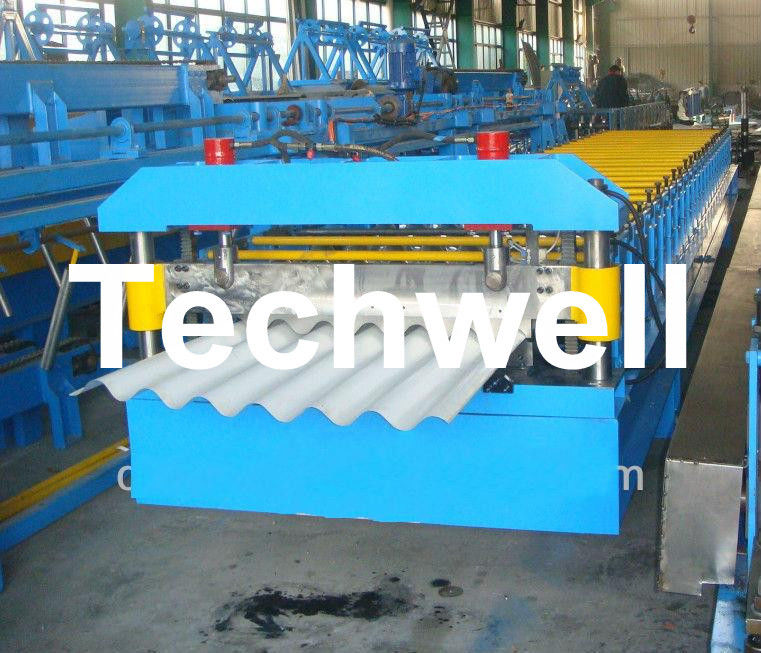

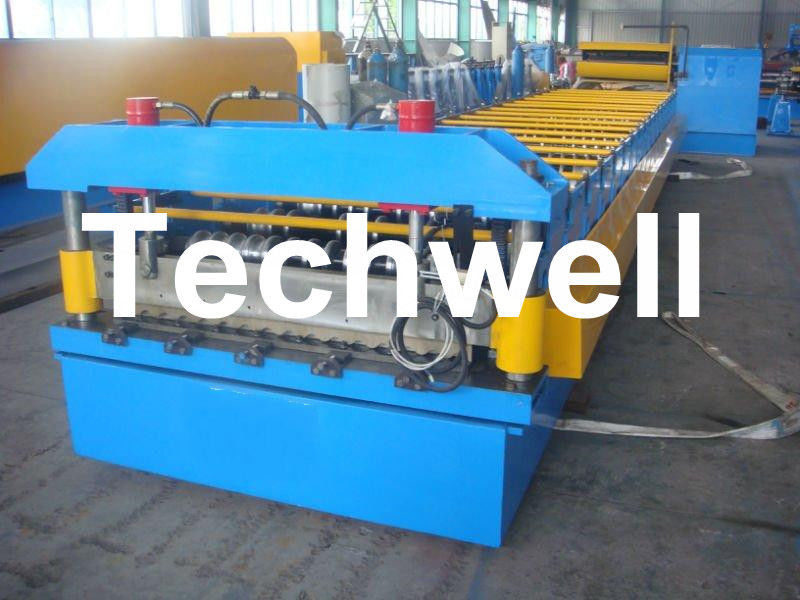

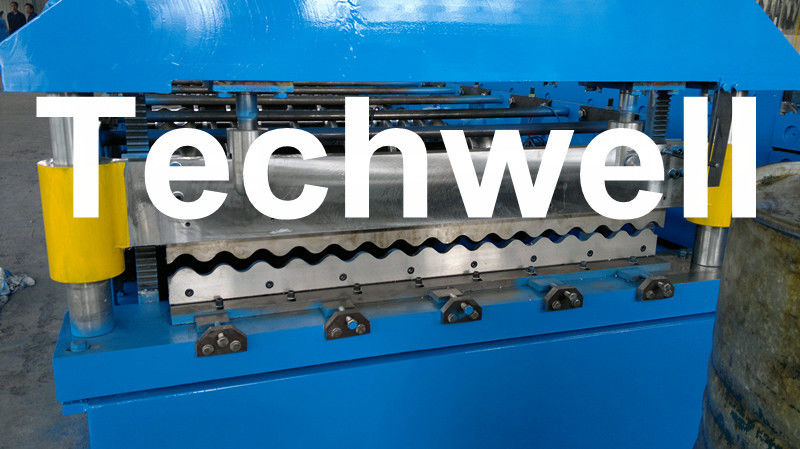

   Machine Pictures of Corrugated Roof Sheet Roll Forming Machine
