Custom Corrugated Panel Roof Sheet Roll Forming Machine With Coil Width 1000 / 1220 / 1250mm

China Custom Corrugated Panel Roof Sheet Roll Forming Machine With Coil Width 1000 / 1220 / 1250mm supplier
Custom Corrugated Panel Roof Sheet Roll Forming Machine With Coil Width 1000 / 1220 / 1250mm supplier Custom Corrugated Panel Roof Sheet Roll Forming Machine With Coil Width 1000 / 1220 / 1250mm supplier Custom Corrugated Panel Roof Sheet Roll Forming Machine With Coil Width 1000 / 1220 / 1250mm supplier Custom Corrugated Panel Roof Sheet Roll Forming Machine With Coil Width 1000 / 1220 / 1250mm supplier

Large Image :  Custom Corrugated Panel Roof Sheet Roll Forming Machine With Coil Width 1000 / 1220 / 1250mm

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-RWM

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Decoiler Type: Manual Or Hydraulic Or Auto Type Drive Type: Chain Transmission
Cutting Type: Hydraulic Cutting Support Table: Simple Nonpower Type

Custom Corrugated Panel Roof Sheet Roll Forming Machine for Making 1000 / 1220 / 1250mm Width Roof Sheet




   A). Specifications of Corrugated Roof Panel Roll Forming Machine





 Item  Corrugated Sheet Roll Forming Machine
 Coil Material                                        Thickness  0.3-0.8mm
 Coil width  Custom-made, 914, 1000 or 1200 or 1250mm
 Yield Strength             250-350 Mpa
 Material  PPGI, Color Steel, GI.
 Decoiler / Uncoiler  Decoiler Type  Manual or Hydraulic or Auto Type
 Coil Width  Max. 1250mm
 I.D  508-610mm
 O.D  Max. 1500mm

 Corrugated Sheet Roll Forming Machine

 Forming Stations  16Stations ( Depend on Profiles )
 Roller material   45# steel, surface coated with 0.05mm hard  chrome
 Diameter of shaft   76mm
 Shaft material  High grade 45# steel
 Drive type  Chain transmission
 Forming speed  0-15m/min
 Main power  5.5KW
 Cutting To Length  Cutting type  Hydraulic cutting
 Cutting Die Material  Cr12Mov steel, HRC58-62
 Cutting power  3KW
 CuttingTolerance  10m+/-1.5mm
 Encoder  OMRON Brand
 Electrical Control System  PLC                                    PANASONIC Brand
 Inverter  YASKAWA Brand
 Touch screen  PANASONICE
 Operation type  Touch screen & Button
 Hydraulic Station  Hydraulic station  Famous Chinese brand
 Support Table  Table type  Simple nonpower type
 Function  To support the finished panels





   B). Main Composition of Corrugated Roof Panel Roll Forming Machine



 Decoiler / Uncoiler  1 Unit
 Feeding Guide  1 Unit
 Main Corrugated Sheet Roll Forming Machine  1 Unit
 Hydraulic Cutting To Length Device  1 Unit
 Hydraulic Station  1 Unit
 PLC Computer Control System  1 Unit
 Support Table  2 Units



   C). Reference Profile Drawings of Corrugated Roof Panel





Custom Corrugated Panel Roof Sheet Roll Forming Machine With Coil Width 1000 / 1220 / 1250mm



   D). Our Advantages of Roof Roll Forming Machines



  • Copra designing software
  • 5-8 technicians every month specially do international installation and debugging
  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

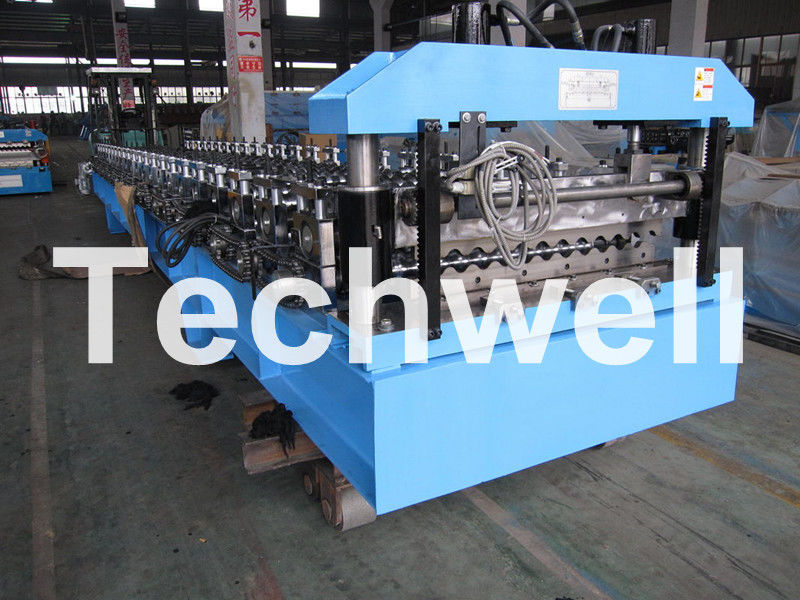

   E). Reference Pictures of Corrugated Roof Panel Roll Forming Machine



Custom Corrugated Panel Roof Sheet Roll Forming Machine With Coil Width 1000 / 1220 / 1250mm

Custom Corrugated Panel Roof Sheet Roll Forming Machine With Coil Width 1000 / 1220 / 1250mm



   F). Machine To Container



Custom Corrugated Panel Roof Sheet Roll Forming Machine With Coil Width 1000 / 1220 / 1250mm

Custom Corrugated Panel Roof Sheet Roll Forming Machine With Coil Width 1000 / 1220 / 1250mm



   G). Contact Us Freely



 Company  Wuxi Techwell Machinery Co.,LTD
 Website  www.cold-rollformingmachine.com
 www.roofrollformingmachine.com
 www.wxtechwell.com
 Video  www.youtube.com/wxtechwell
 Tel / Fax  0086-510-83133431
 Mobile                                      0086-18018304331 ( Miss Lee )
 E-Mail  monica@wxtechwell.com
 Skype  monica198614
 MSN  lixiaohua_monica@hotmail.com



   H). FAQ



Q: What size decoiler can you supply us with?

A: From 5-ton decoiler to a 25-ton motorised hydraulic decoiler.



Q: Do you have a warranty on your machines?

A: One year warranty excluding electrical components.



Q: Do you have instruction manuals?

A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings.



Q: Once a machine arrives at our factory what happens then?

A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.



Q: What do I need to offload my machine from the container?

A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
