PLC Control U Shape Roll Forming Machine for Steel U Channel TW-U100

PLC Control U Shape Roll Forming Machine for Steel U Channel TW-U100

Z Purlin Roll Forming Machine

CZ Purlin Roll Forming Machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE

Model Number:

TW-U100

Contact Us

Request A Quote
Product Details
Material:
HRC, CRC, GI
Main Power:
11KW
Material Thickness:
1.5-3.0mm
Forming Speed:
0-20m/min
Drive:
Chain Transmission
Structure Of Machine:
Welded Steel Structure
Product Description

 Steel U Shape Roll Forming Machine for Making 1.5-3.0mm Thickness U Channel Profile

   A). Main Specification of U Purlin Roll Forming Machine

  • Material: HRC, CRC, GI
  • Material thickness: 1.5-3.0mm
  • Main power: 11KW
  • Hydraulic power: 5.5KW
  • Decoiler: Manual or hydraulic decoiler
  • Weight capacity of decoiler: 5 Ton
  • Axis diameter: 75mm
  • Forming Station: 12 stations
  • Principal axis material: 45# high grade steel, heated and quenched
  • Roller material: GCr15 steel, quenched and heated process, HRC58-62
  • Forming speed: 0-20m/min
  • Drive: Chain transmission
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand


   B). Working Flow of U Purlin Roll Forming Machine


Decoiler --- Fedding & Leveling --- Roll Forming --- Cut-to-length --- Run out table



PLC Control U Shape Roll Forming Machine for Steel U Channel TW-U100 0



   C). Main Component of U Purlin Roll Forming Machine


  • Decoiler ------------------------------------------------- 1 Unit
  • Feeding & Leveling ----------------------------------- 1 Unit
  • Main roll forming machine ----------------------------1 Unit
  • Hydraulic cutting device ------------------------------ 1 Unit
  • Hydraulic Station -------------------------------------- 1 Unit
  • PLC computer control -------------------------------- 1 Unit
  • Output table -------------------------------------------- 1 Unit



   D). Profile Drawing of U Purlin Roll Forming Machine


PLC Control U Shape Roll Forming Machine for Steel U Channel TW-U100 1


   E). Application of U Purlin Roll Forming Machine


u purlin, u shaped purlin, u channel, u section, u profile, u shape, steel u purlin,u purlin steel structure


   F). Our Advantages of U Purlin Roll Forming Machine



  • Free Design
  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

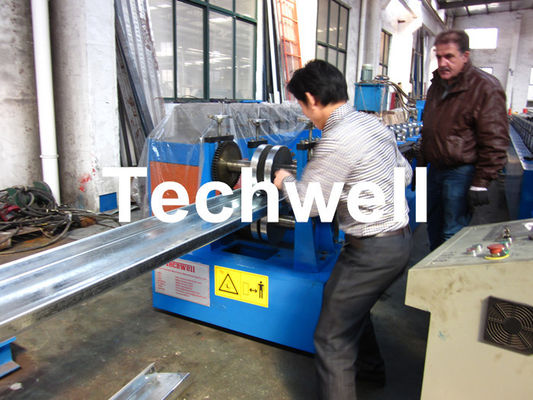

   G). Machine Pictures of U Purlin Roll Forming Machine


PLC Control U Shape Roll Forming Machine for Steel U Channel TW-U100 2
PLC Control U Shape Roll Forming Machine for Steel U Channel TW-U100 3



   H). Factory Machine of Our Company



PLC Control U Shape Roll Forming Machine for Steel U Channel TW-U100 4
PLC Control U Shape Roll Forming Machine for Steel U Channel TW-U100 5



   J). Main Certificates of Machine & Company


PLC Control U Shape Roll Forming Machine for Steel U Channel TW-U100 6
