1.5" Chain Drive Z Shaped Purlin Roll Forming Machine With PLC Frequency Control System

1.5" Chain Drive Z Shaped Purlin Roll Forming Machine With PLC Frequency Control System

Z Purlin Roll Forming Machine

C Purlin Roll Forming Machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE

Model Number:

TW-Z300

Contact Us

Request A Quote
Product Details
Raw Material:
GI, Carbon Steel
Material Thickness:
1.5-3.0mm
Decoiler:
Manual Or Hydraulic Decoiler ( Customer Can Choose )
Principle Axis:
75mm Diameter
Forming Speed:
0-15m/min
Drive Type:
1.5' Chain Transmission
Product Description

1.5" Chain Drive  Z Shaped Purlin Roll Forming Machine With PLC Frequency Control System





  Main Specifications of Z Shaped Purlin Roll Forming Machine



  • Material: GI, Carbon steel
  • Material thickness: 1.5-3.0mm
  • Machine diameter: about 11500x1500x1300mm ( LXWXH )
  • Weight of machine: about 12 Ton
  • Decoiler: Manual or hydraulic decoiler ( customer can choose )
  • Weight capacity of decoiler: 5 Ton
  • Forming station: about 17
  • Principle axis: 80mm diameter
  • Forming speed: 0-15m/min
  • Drive type: 1.5' chain transmission
  • Roller material: GCr15 steel, quenched  and heated process
  • Main power: 18.5KW
  • Hydraulic power: 11KW
  • Punching: hydraulic punching
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand



  Work Flowing






Decoiler --- Fedding & Leveling --- Punching --- Roll Forming --- Cut-to-length --- Run out table



1.5" Chain Drive Z Shaped Purlin Roll Forming Machine With PLC Frequency Control System 0







  Main Components





  • Decoiler ------------------------------------------------- 1 Unit
  • Feeding & Leveling ----------------------------------- 1 Unit
  • Hydraulic punching device -------------------------- 1 Unit
  • Main roll forming machine --------------------------- 1 Unit
  • Hydraulic cutting device ----------------------------- 1 Unit
  • Hydraulic Station -------------------------------------- 1 Unit
  • PLC computer control -------------------------------- 1 Unit
  • Output table --------------------------------------------- 1 Unit



  Our Advantage



  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

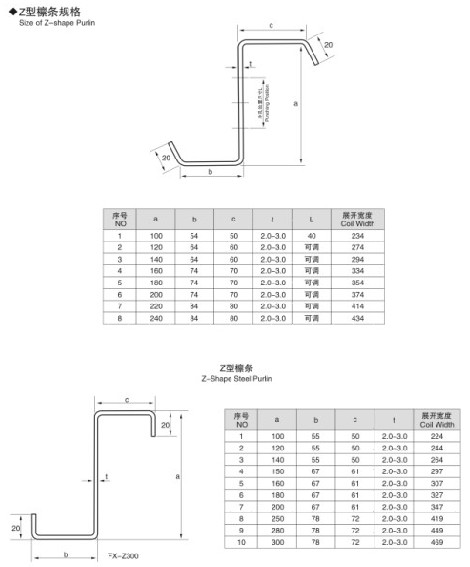

  Reference Drawing





1.5" Chain Drive Z Shaped Purlin Roll Forming Machine With PLC Frequency Control System 1







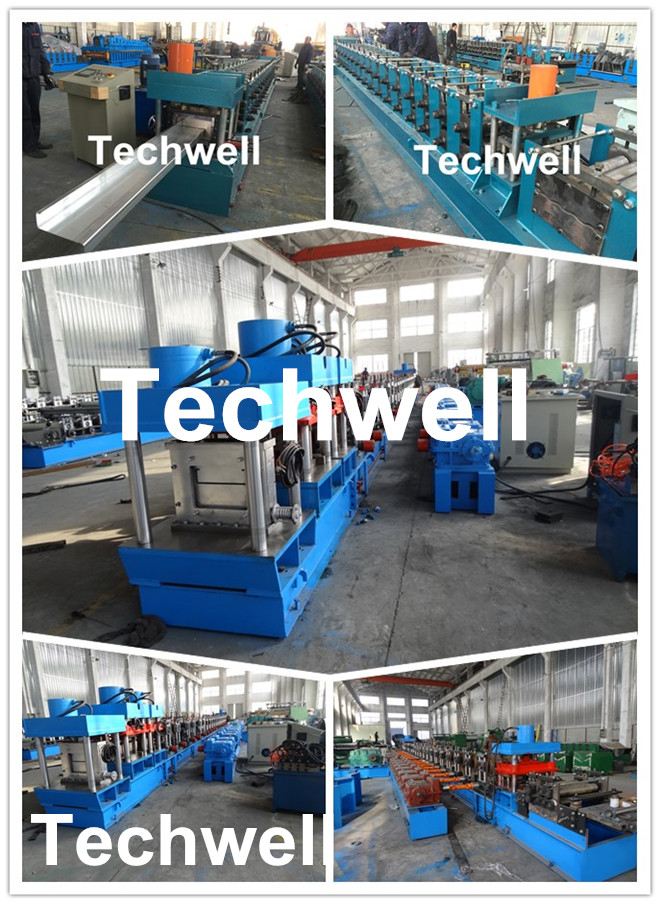

  Machine Pictures





1.5" Chain Drive Z Shaped Purlin Roll Forming Machine With PLC Frequency Control System 2
