Joint Hidden Roof Panel Roll Forming Machine For Making Standing Seam Roof Panel

China Joint Hidden Roof Panel Roll Forming Machine For Making Standing Seam Roof Panel supplier
Joint Hidden Roof Panel Roll Forming Machine For Making Standing Seam Roof Panel supplier Joint Hidden Roof Panel Roll Forming Machine For Making Standing Seam Roof Panel supplier Joint Hidden Roof Panel Roll Forming Machine For Making Standing Seam Roof Panel supplier Joint Hidden Roof Panel Roll Forming Machine For Making Standing Seam Roof Panel supplier

Large Image :  Joint Hidden Roof Panel Roll Forming Machine For Making Standing Seam Roof Panel

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-STM400

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description

Joint Hidden Roof Panel Roll Forming Machine For Making Standing Seam Roof Panel



   Main Specifications of Roof Panel Roll Forming Machine



  • Material thickness: 0.8-1.2mm
  • Decoiler: Manual or hydraulic decoiler
  • Weight capacity of uncoiler: 5 Ton
  • Forming Speed: 0-15m/min
  • Forming Station of Roof panel roll forming machine: 16 stations
  • Drive: Chain transmission
  • Main power: 5.5KW
  • Cutting: Hydraulic cutting
  • Cutter material: Cr12Mov, Quenched HRC58-62
  • PLC: Panasonic Brand
  • Support table: Simple Nonpower type
  • Machine weight: about 6Ton
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand



  Main Components of Roof Panel Roll Forming Mahine



 Decoiler / Uncoiler  1 Unit
 Feeding Guide  1 Unit
 Roof Panel Roll Forming Machine  1 Unit
 Hydraulic Cutting System                            1 Unit
 Hydraulic Station  1 Unit
 PLC Computer Control Box  1 Unit
 Support Tables  2 Units



  Maintenance of Wall Panel Roof Sheet Roll Forming Machine



Daily maintenance plays an very importance role in extending the operation time and of wall panel roof sheet roll forming machine and the good quality finished roof wall panel. The following points should be part of the machine's daily production and usage routine.

  • Regularly lubricated the outside parts of the wall panel roof sheet roll forming machine, such as the driving chain...
  • Regularly brush the surface of roller, particularly when working outside. If you do not use the wall panel forming machine in a long time, you should apply luricating oil on the roller surface, make sure you clean it for next time running machine.
  • If the wall panel roofing sheet roll forming machine is not operated in a long period, should cover it with plastic film, to avoid getting rain or dust on the machine, or avoid the machine becoming dampt, especially the PLC electric control board.
  • Make sure the cutting system is lubricated when necessary.
  • Check the Hydraulic station often and the oil quantity of the deceleration machines, add more oil if the oil level is low.
  • Check the electric appliances box and every leads conjuction circumstance of the wall panel roof roll forming machine.

  Maintenance of Wall Panel Roof Sheet Roll Forming Machine

Daily maintenance plays an very importance role in extending the operation time and of wall panel roof sheet roll forming machine and the good quality finished roof wall panel. The following points should be part of the machine's daily production and usage routine.

  • Regularly lubricated the outside parts of the wall panel roof sheet roll forming machine, such as the driving chain...
  • Regularly brush the surface of roller, particularly when working outside. If you do not use the wall panel forming machine in a long time, you should apply luricating oil on the roller surface, make sure you clean it for next time running machine.
  • If the wall panel roofing sheet roll forming machine is not operated in a long period, should cover it with plastic film, to avoid getting rain or dust on the machine, or avoid the machine becoming dampt, especially the PLC electric control board.
  • Make sure the cutting system is lubricated when necessary.
  • Check the Hydraulic station often and the oil quantity of the deceleration machines, add more oil if the oil level is low.
  • Check the electric appliances box and every leads conjuction circumstance of the wall panel roof roll forming machine.



  Working Flow


Decoiler ---> Fedding Guide ---> Roll Forming ---> Cut-to-length ---> Run out table

Joint Hidden Roof Panel Roll Forming Machine For Making Standing Seam Roof Panel



  Reference Panel Profile Drawings





Joint Hidden Roof Panel Roll Forming Machine For Making Standing Seam Roof Panel

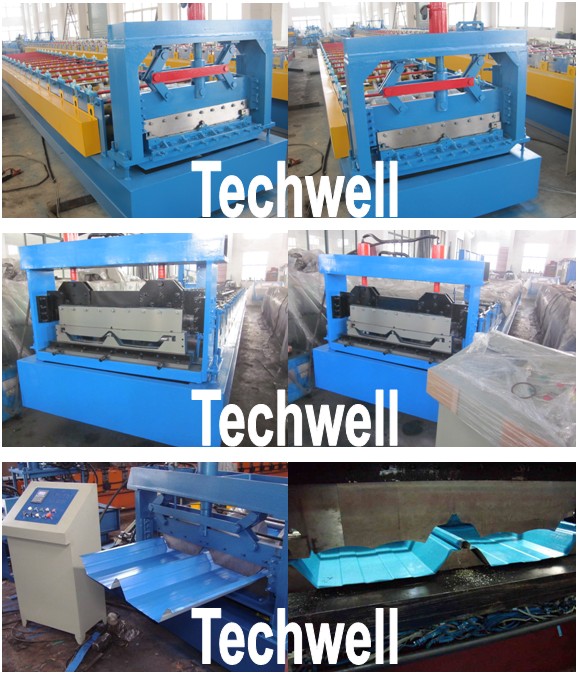

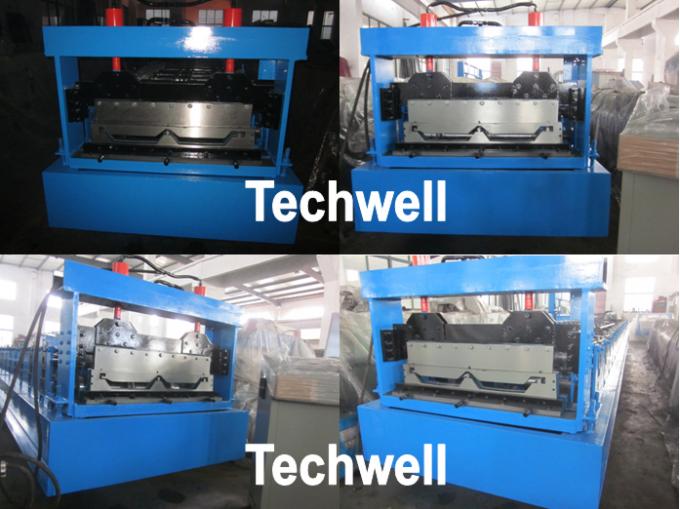

  Roof Panel Roll Forming Machine Picture



Joint Hidden Roof Panel Roll Forming Machine For Making Standing Seam Roof Panel

Joint Hidden Roof Panel Roll Forming Machine For Making Standing Seam Roof Panel



Joint Hidden Roof Panel Roll Forming Machine For Making Standing Seam Roof Panel
