Steel 0.3mm - 0.6mm Mobile / Portable Gutter Roll Forming Machine for Rainwater Gutter

Steel 0.3mm - 0.6mm Mobile / Portable Gutter Roll Forming Machine for Rainwater Gutter

Sheet Metal Roll Forming Machines

Roll Forming Equipment

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE

Model Number:

TW-GM5

Contact Us

Request A Quote
Steel 0.3mm - 0.6mm Mobile / Portable Gutter Roll Forming Machine for Rainwater Gutter Steel 0.3mm - 0.6mm Mobile / Portable Gutter Roll Forming Machine for Rainwater Gutter Steel 0.3mm - 0.6mm Mobile / Portable Gutter Roll Forming Machine for Rainwater Gutter Steel 0.3mm - 0.6mm Mobile / Portable Gutter Roll Forming Machine for Rainwater Gutter
Product Details
Machine Type:
Portable Mobile Type
Forming Profile:
Gutter Profile
Material Type:
G.I; Aluminium, Copper
Voltage:
110V Or 220V, Single Phase
Power:
1.1KW
Cutting:
Hand Operated Shear
RELATED PRODUCTS
Good price Automatic Cold Roll Forming Machine online

Automatic Cold Roll Forming Machine

Get Best Price
Good price Carbon Steel Cold Roll Forming Machine online

Carbon Steel Cold Roll Forming Machine

Get Best Price
Good price Door Keel Cold Roll Forming Machine Automatic Galvanized Shutter online

Door Keel Cold Roll Forming Machine Automatic Galvanized Shutter

Get Best Price
Good price Cold Roof Sheet Roll Forming Machine Corrugated 0.8mm 10m/Min online

Cold Roof Sheet Roll Forming Machine Corrugated 0.8mm 10m/Min

Get Best Price
Contact Us
86-510-83133431
monica@wxtechwell.com
86-510-83133431
Contact Now
Product Description




Steel 0.3mm - 0.6mm Mobile / Portable Gutter Roll Forming Machine for Rainwater Gutter





   Main Specifications of Portable Type Gutter Roll Forming Machine



  • Thickness of Materials Formed
    • Steel – 0.3mm to 0.6mm
    • Aluminum – 0.5 to 0.8mm
    • Copper – 0.5-0.7mm
  • Electrical: 220V
  • Drive Syestem:
  • Bottom drive rollers and eleven top drive rollers for smooth even,
  • non-twisting drive
  • Hard chrome steel forming rollers
  • Urethane power drive system
  • Shear: Hand operated Quadra-Shear with built-in crimper or cutoff saw
  • Speed: Standard 43ft. Per minute / Optional 45 or 60 ft per minute ( Aluminium )
  • Controls: Push button entry and exit end controls with jog feature and power interruption safety wiring
  • Forming: stainless steel forming rollers
  • Frame Const: Welded tubular steel frame

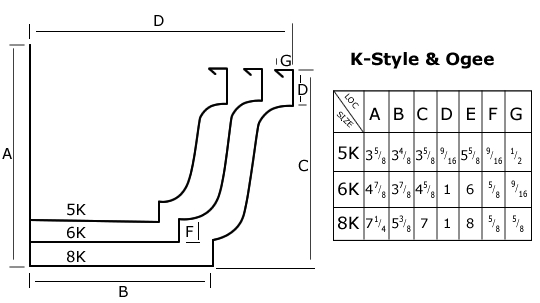

   Gutter Profile Drawings



Steel 0.3mm - 0.6mm Mobile / Portable Gutter Roll Forming Machine for Rainwater Gutter 0





   Outline of Mobile Gutter Machine

Steel 0.3mm - 0.6mm Mobile / Portable Gutter Roll Forming Machine for Rainwater Gutter 1

   Application





Rainwater gutter, k gutter, box gutter , seamless gutter





   TECHWELL Advantage



  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

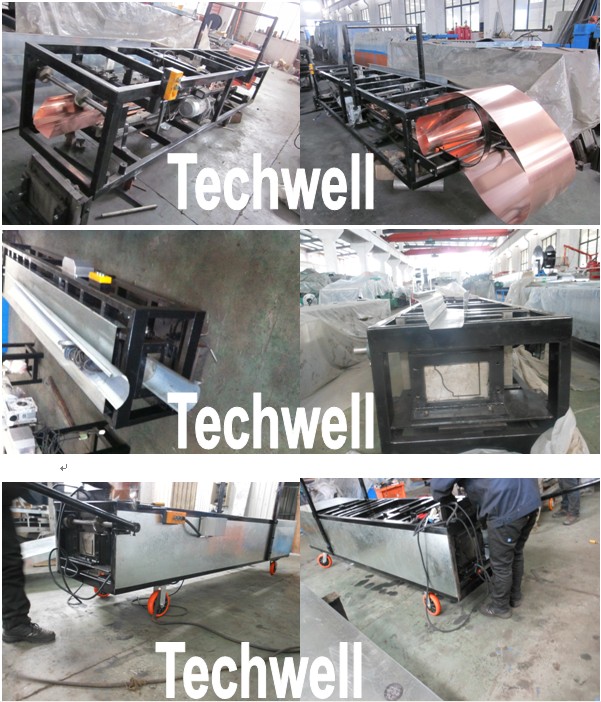

   Photos of Portable Gutter Machine





Steel 0.3mm - 0.6mm Mobile / Portable Gutter Roll Forming Machine for Rainwater Gutter 2





Steel 0.3mm - 0.6mm Mobile / Portable Gutter Roll Forming Machine for Rainwater Gutter 3
