1.5-2.0mm Perforated Cable Tray Roll Forming Machine for Making CT600X90 / 500X90 / 300X90 Cable Tray Profiles

China 1.5-2.0mm Perforated Cable Tray Roll Forming Machine for Making CT600X90 / 500X90 / 300X90 Cable Tray Profiles supplier

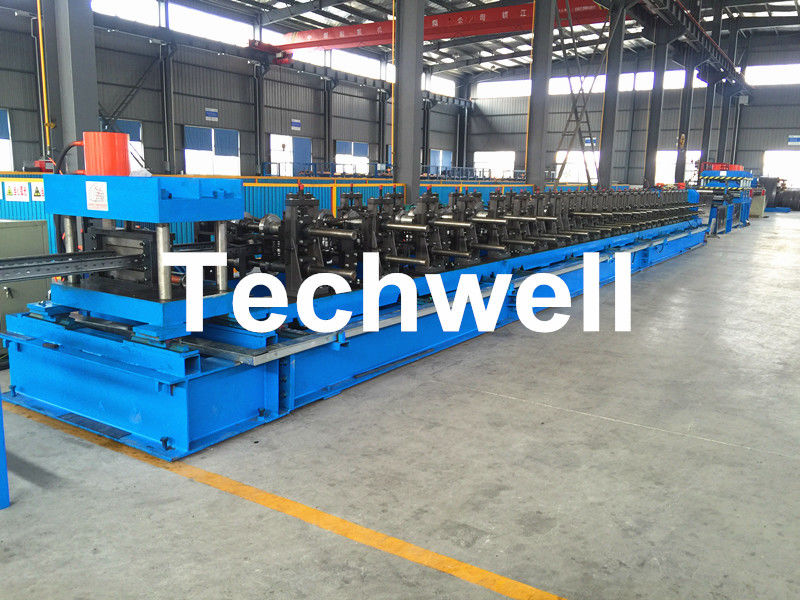

Large Image :  1.5-2.0mm Perforated Cable Tray Roll Forming Machine for Making CT600X90 / 500X90 / 300X90 Cable Tray Profiles

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: CT-300-600X90

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: bare package
Delivery Time: 60-80 working days
Detailed Product Description
Material Thickness: 1.5-2.0mm Profile Model: Cable Tray CT600X90 / 500X90 / 300X90
Forming Station: 18 Main Power: 15KW
Hydraulic Power: 11KW PLC: Siemens Brand

1.5-2.0mm Perforated Cable Tray Roll Forming Machine for Making CT600X90 / 500X90 / 300X90 Cable Tray Profiles



   A). Summary of Cable Tray Roll Forming Machine



1) This cable tray roll forming machine adopt coil production material to form CT600X90 / 500X90 / 300X90 cable tray Profiles through 5 Ton hydraulic decoiler, Leveling, Servo feeding, Hydraulic Punching Machine, Main roll forming part, Post-cutting, hydraulic station, PLC control system and Non-power type support table.



2) The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.



3) Working Speed: about 0-15 m/min ( excluding punching & cutting time);



   B). Cable Tray Profiles



1.5-2.0mm Perforated Cable Tray Roll Forming Machine for Making CT600X90 / 500X90 / 300X90 Cable Tray Profiles



   C). Finished Cable Tray Profile Sheets



1.5-2.0mm Perforated Cable Tray Roll Forming Machine for Making CT600X90 / 500X90 / 300X90 Cable Tray Profiles



   D). Main Specifications



1) Forming material thickness: 1.5-2.0mm

2) Forming material type: GI or Carbon Steel

3) Machine Frame: high grade steel welded and tempering treatment

4) Forming Speed: 0-15m/min excluding punching / cutting time

5) Forming Motor: 15KW

6) Width adjustable motor 1.5KW

7) Size adjustment: electrical power adjustment

8) Drive type: Chain Drive

9) Shaft Material: 40Cr high grade Steel tempering treatment (HB220-260)

10) Shaft Diameter: Φ 70mm

11) Bearing: HRB bearing ( Top Chinese brand )

12) Roller Material: high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm

13) Forming Station: ≈ 18 stations

14) Finished profile straightness tolerance ≤±1.5mm/10m

15) Finished profile angle tolerance ≤±1.5 degree/10m



   E). Layout of Cable Tray Roll Forming Machine



1.5-2.0mm Perforated Cable Tray Roll Forming Machine for Making CT600X90 / 500X90 / 300X90 Cable Tray Profiles



   F). Main Components



  Components of Cable Tray Roll Forming Machine                 Quantity
  5 Ton Hydraulic Uncoiler                   1 Unit
  7 Rollers Leveling                   1 Unit
  Servo Feeding                   1 Unit
  Hydraulic Punching                   1 Unit
  Main Roll Forming Machine                   1 Unit
  Hydraulic Cutting                   1 Unit
  PLC Electrical Control Board                   1 Unit
  Hydraulic Stations                   1 Unit
  Run Out Tables                   1 Unit



   G). More Pictures of Cable Tray Roll Forming Machine





1.5-2.0mm Perforated Cable Tray Roll Forming Machine for Making CT600X90 / 500X90 / 300X90 Cable Tray Profiles

1.5-2.0mm Perforated Cable Tray Roll Forming Machine for Making CT600X90 / 500X90 / 300X90 Cable Tray Profiles

1.5-2.0mm Perforated Cable Tray Roll Forming Machine for Making CT600X90 / 500X90 / 300X90 Cable Tray Profiles



   H). Contacts of WUXI TECHWELL



  Company

  Wuxi Techwell Machinery Co., Ltd

  Wuxi Techwell Industrial Co., Ltd

  Website   www.cold-rollformingmachine.com
  www.roofrollformingmachine.com
  www.wxtechwell.com
  Video   www.youtube.com/wxtechwell
  Tel / Fax   0086-510-83133431
  Mobile / Whatsapp   0086-18018304331 ( Monica )
  E-Mail   monica@wxtechwell.com
  Skype   monica198614



Contact Details
Wuxi Techwell Machinery Co., Ltd

Contact Person: monica

Send your inquiry directly to us (0 / 3000)
