2.0-3.0mm Heavy Duty Upright Racking / Shelf Roll Forming Machine With JH21-80 Ton Press Machine To Punch Holes

China 2.0-3.0mm Heavy Duty Upright Racking / Shelf Roll Forming Machine With JH21-80 Ton Press Machine To Punch Holes supplier

Large Image :  2.0-3.0mm Heavy Duty Upright Racking / Shelf Roll Forming Machine With JH21-80 Ton Press Machine To Punch Holes

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: R90-120

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: bare package
Delivery Time: 70 working days
Detailed Product Description
Material Thickness: 2.0-3.0 Profile Model: R90-120
Forming Station: 16 Main Power: 15KW
Hydraulic Power: 5.5KW Roller Material: GCr15 Steel

2.0-3.0mm Heavy Duty Upright Racking / Shelf Roll Forming Machine with JH21-80 Ton Press Machine To Punch Holes



   A). Main Specifications





   1).  4 Ton Manual Uncoiler

  1. Machine frame: welding structure with shot lastingtreatment

  2. Components: Base, brake device, inner hole support, Expanding / tighten device

  3. Weight capacity of Decoiler: 4Ton Max

  4. Inner diameter of coil: 508mm



  2). 7 Roller Leveling Machine

  1. 2 Rollers pinch feeding, 7 rollers leveling
  2. leveling roller diameter: about Φ 90mm
  3. Leveling roller material: high grade 40Cr
  4. Heat treatment of leveling roller: surface Hi-frequency quench treatment
  5. Leveling motor power: 3KW



  3). Servo Feeding Machine

  1.   Servo motor power: 3KW
  2.   Servo motor brand: YASKAWA (JAPAN)
  3.   To exact accurately feed the sheet into punching machine according to the set program



  4). JH21-80 Press Machine

  1. Model: JH21-80
  2. Punching Pressure: 80 Ton
  3. Punching Mould size: according to drawing
  4. Punching Mould: 1 set



  5). Main Upright Racking Roll Forming Machine

  1.  Forming material thickness: 2-3mm
  2.  Forming material type: GI
  3.  Machine Frame: high grade steel welded and tempering treatment
  4.  Forming Motor: 15KW
  5.  Drive type: Gearbox Drive
  6.  Shaft Material: 40Cr high grade Steel tempering treatment (HB220-260)
  7.  Shaft Diameter: Φ 75mm
  8.  Bearing: HRB bearing ( Top Chinese brand )



  6). Hydraulic Cutting & Hydraulic Station

  1. Cutting type: Hydraulic Post-cutting after roll forming,
  2. When Cutting, Machine stop
  3. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62
  4. Hydraulic Station Power: 5.5KW



  7). PLC Control System

  1. The entire line is controlled by imported PLC, LCD touch screen human-machine interface. People interact with the PLC. Operator by setting the program to run automatically (programmable control) to monitor and control process, to achieve the operator to control the production line and modify the control parameters, and real-time monitoring of equipment status, operating parameters and fault indication. Work piece length digital setting, work piece length adjustable. Real-time monitoring of equipment operating status and fault indication.
  2. Operation: manual / automatic. It is convenient to maintenance with the manual model and there are emergency stop bottom on it.



  8). Run-out Table

  1. Form: Steel welding structure, no-power exit rack
  2. Quantity:1 piece

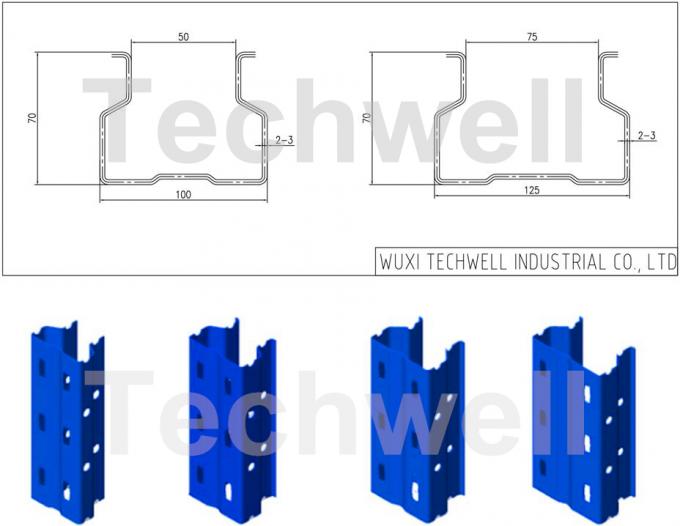

   B). Upright Rack Work Piece Profile Drawing



2.0-3.0mm Heavy Duty Upright Racking / Shelf Roll Forming Machine With JH21-80 Ton Press Machine To Punch Holes

2.0-3.0mm Heavy Duty Upright Racking / Shelf Roll Forming Machine With JH21-80 Ton Press Machine To Punch Holes



   C). Layout of Cable Tray Forming Machine



2.0-3.0mm Heavy Duty Upright Racking / Shelf Roll Forming Machine With JH21-80 Ton Press Machine To Punch Holes



   D). Main Components



 Components of Upright Rack Roll Forming Machine                      Quantity
 4 Ton Uncoiler                        1 Unit
 7 Rollers Leveling                        1 Unit
 Servo Feeding                        1 Unit
 JH21-80 Press Machine                        1 Unit
 Main Roll Forming Machine                        1 Unit
 Hydraulic Cutting                        1 Unit
 PLC Electrical Control Board                        1 Unit
 Hydraulic Stations                        1 Unit
 Run Out Table                        1 Unit

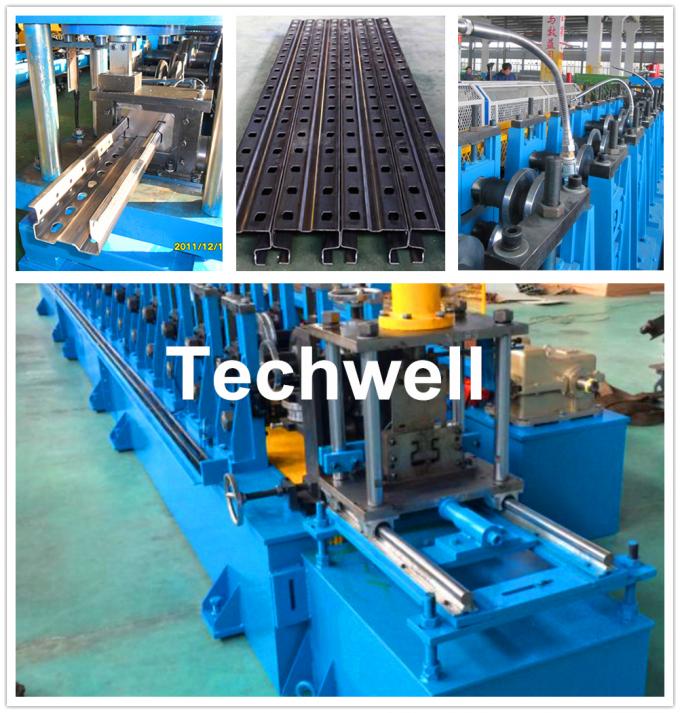

   E). More Photos of Upright Racking Roll Forming Machine



2.0-3.0mm Heavy Duty Upright Racking / Shelf Roll Forming Machine With JH21-80 Ton Press Machine To Punch Holes
