Coil Thickness 0.18-0.4mm, High Strength Steel Sheet Horizontal Corrugated Sheet Roll Forming Machine

China Coil Thickness 0.18-0.4mm, High Strength Steel Sheet Horizontal Corrugated Sheet Roll Forming Machine supplier
Coil Thickness 0.18-0.4mm, High Strength Steel Sheet Horizontal Corrugated Sheet Roll Forming Machine supplier Coil Thickness 0.18-0.4mm, High Strength Steel Sheet Horizontal Corrugated Sheet Roll Forming Machine supplier Coil Thickness 0.18-0.4mm, High Strength Steel Sheet Horizontal Corrugated Sheet Roll Forming Machine supplier Coil Thickness 0.18-0.4mm, High Strength Steel Sheet Horizontal Corrugated Sheet Roll Forming Machine supplier

Large Image :  Coil Thickness 0.18-0.4mm, High Strength Steel Sheet Horizontal Corrugated Sheet Roll Forming Machine

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-C008

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Name: Corrugated Roll Forming Machine Horizontal Type Raw Material: Galvanized Color Sheet G550
Rolling Speed: 12-15m/min Material Thickness: 0.18-0.4mm
Roller Stations: 6 Stations Shaft Diameter: 100mm

Coil Thickness 0.18-0.4mm, High Strength Steel Sheet Horizontal Corrugated Sheet Roll Forming Machine

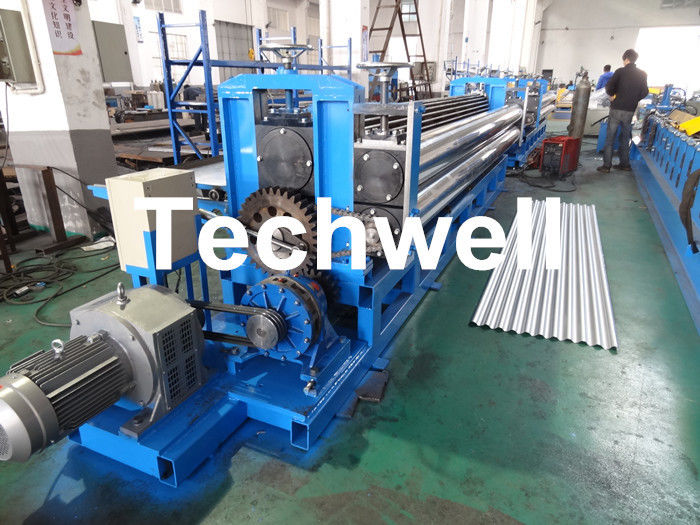

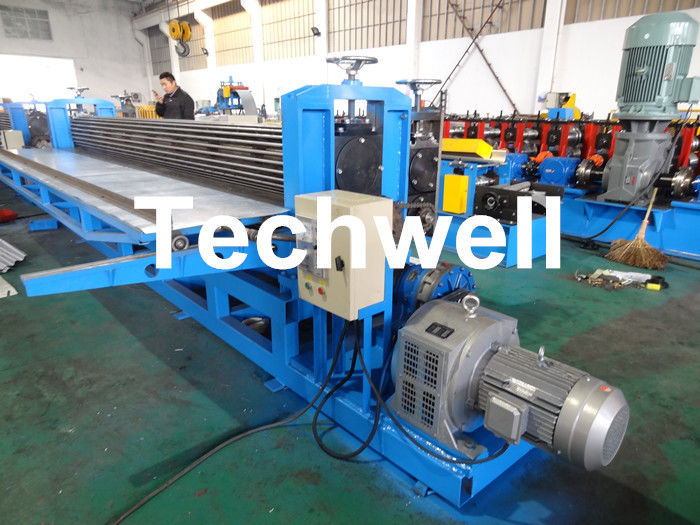

   Description of Horizontal Corrugated Sheet Roll Forming Machine





This high strength Round wave steel sheet horizontal corrugated roll forming machine is professional for the thin steel sheet with the Coil material thickness:0.18-0.4 mm, and with the material harness as high as 550 MPA, full hard of the material. The max width of this machine is 4.5 m. There are s sets of the solid axle rollers of this machine, and the roller diameters is about 300 mm , machine material is: 45# steel, speed is about 15 pieces / min. and the machine weight is about 8.5 Ton.The machine voltage is 230 v,60 hz,3 ph and 380 v,50 hz,3 ph, The voltage can be customized made according to customer's requirements.





   Technical Data



1. Profile

Coil Material Thickness: 0.18-0.3mm

Feeding width: 910mm,1000mm,1200mm

Material: Galvanized color steel G550Mpa

Max. width: 4.5m

2. Forming device

Roller stations: 6 stations

Roller diameter: 300mm, Material: 45# steel

Speed: 12-15m/min (Not including cuttingtime)

Weight: 8.5T

Voltage: 230V, 60Hz, 3 Ph

Motor: 11KW

3. Transmission By gears
4. Material of chain 45# forged steel with frequency quenching
5. Material of cutting Cr12Mov, with quench HRC58-62
6. Control box Transducer

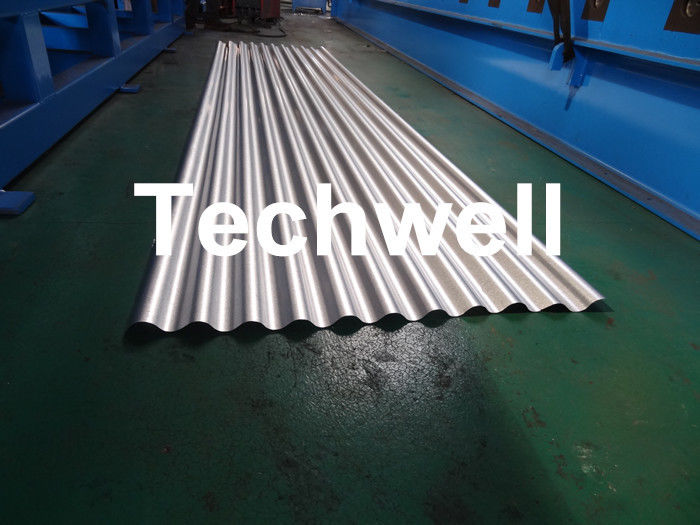

   Reference Profile Drawing



Coil Thickness 0.18-0.4mm, High Strength Steel Sheet Horizontal Corrugated Sheet Roll Forming Machine





   Our Competitive Advantages



1. Professional

More than 10 years' rich experience!

a.Specialized in Manual Curved Arch Roof Sheet Forming Machine;

b.Keeping improving the quality.

2. Reasonable price

We can save your money from every part!

a. Low labor cost;

b. Convenient transportation;

c. Complete supporting industries.

3. Easy to operate

More Competitive!
a. High efficiency
b. Low energy consumption

c. Reliable working

4. ONE-Years warranty, whole life service.

Keep troubles far away from you!

Within the ONE-YEARS period, we could offer the replacement parts to the client free of charge for any parts damaged due to quality problems .

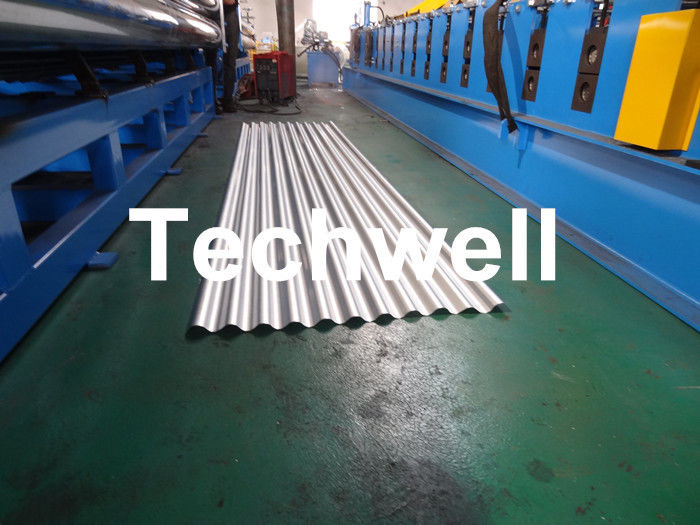

   More Reference Horizontal Corrugated Sheet Forming Machine



Coil Thickness 0.18-0.4mm, High Strength Steel Sheet Horizontal Corrugated Sheet Roll Forming Machine









   FAQ



1)Q: What is the Warranty Machine ?
A: For our roll forming machine , we have 1 year warranty. If any quality problems in this period ,we will take on the shipping cost and replacement.



2)Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.



3) Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly



4)Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very
beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.



5) Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.



6) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. We have good reputation in this field for ten years' experience.
