40mm, 60mm, 70mm, 80mm Octagon / Octagonal Pipe Roll Forming Machine With Fly Saw Cutting

40mm, 60mm, 70mm, 80mm Octagon / Octagonal Pipe Roll Forming Machine With Fly Saw Cutting

Garage Door Roll Forming Machine

shutter door roll forming machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE

Model Number:

TW-OP008

Contact Us

Request A Quote
Product Details
Material Thickness:
0.8-1.2mm
Main Motor Power:
7.5KW
Material Spec:
40mm, 60mm, 70mm, 80mm
Shaft Diameter:
60mm
Forming Speed:
8-10m/min
Working Stations:
About 22 Stations
Product Description

40mm, 60mm, 70mm, 80mm Octagon / Octagonal Pipe Roll Forming Machine With Fly Saw Cutting



   Main Technical Data of Octagonal Pipe Machine



  • Coil Thickness: 0.8-1.2mm
  • Material Spec: 40mm, 60mm, 70mm, 80mm
  • Forming Speed: 8-10m/min (excluding cutting time)
  • Forming Roller: About 20 Stations (Depend on profile)
  • Main motor power:7.5KW
  • Roller Material: GCr15 steel, with quenched HRC58-62
  • Main Axis Dia. : 60mm
  • Shaft material: 45# steel
  • Cutting method: Fly saw cutting
  • Forming Structure: Guiding colum + slide blocks
  • Electrical control system: Whole line adopted PLC control
  • Cutting Tolerance: 10m +/-0.5mm
  • Drive Type: Gear box drive



   Production Line Machine List



 Decoiler / Uncoiler  1 Unit
 Feeding Guide  1 Unit
 Main Roll Fomring Machine  1 Unit
 Flying saw cutting  1 Unit
 Electrical Control System  1 Unit
 Output Table  1 Unit





   Reference Profile Drawing



40mm, 60mm, 70mm, 80mm Octagon / Octagonal Pipe Roll Forming Machine With Fly Saw Cutting 0

40mm, 60mm, 70mm, 80mm Octagon / Octagonal Pipe Roll Forming Machine With Fly Saw Cutting 1











   Working Flow



Uncoiling – Feed Guiding–Roll forming ––fly saw cutting – Run-out table



40mm, 60mm, 70mm, 80mm Octagon / Octagonal Pipe Roll Forming Machine With Fly Saw Cutting 2





   Competitive Advantages





1. Durable and widely used products

2.Simple to operate when assemble

3.Direct manufacturer, provide with high quality and best price.

4.Provide sample in free.

5.Products and design solution supplied fast and freely

6.Best design oriented for your special requirements

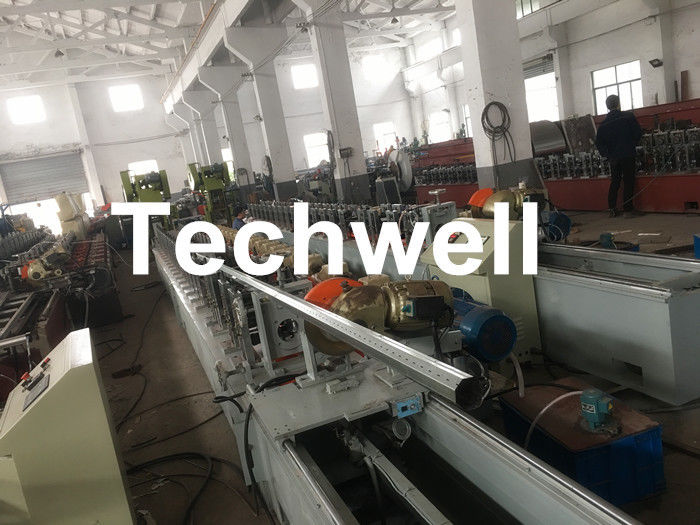

   More Machine Pictures
