5.5KW Eavestrough Rain Portable Gutter Machine With Hydraulic Cutting

5.5KW Eavestrough Rain Portable Gutter Machine With Hydraulic Cutting

eavestrough Portable Gutter Machine

5.5KW rain gutter machine

5.5KW eavestrough Gutter Machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE

Model Number:

TW-GM5

Contact Us

Request A Quote
Product Details
Material:
PPGI, Aluminum
Forming Stations:
About 15 Stations
PLC:
Panasonic Brand
Drive Type:
Chain Of Transmission
Cutting Tolerance:
+/-1.5mm
Forming Frame Structure:
Weded Wall Plate Structure
Product Description

K Gutter, Round Gutter Cold Roll Forming Machine With Hydraulic Cutting PLC Control

   Summary

1. Gutter cold roll forming machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.

2. Components of Gutter cold roll forming machine
Gutter cold roll forming machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.


   Main Technical Parameters of Gutter Roll Former


 Item  Gutter Roll Forming Machine
 Coil Material  Thickness  0.4-0.8mm
 Coil Width  Custom-made
 Yield Strength  250-350Mpa
 Material  PPGI, Aluminum
 Decoiler / Uncoiler  Decoiler Type  Manual or Hydraulic or Auto
 Coil Width  Max.1250mm
 I.D  508-610mm
 O.D  Max. 1500mm
 Gutter Roll Forming Machine  Forming Stations  About 15 stations (depend on final profile)
 Roller Material  45# high grade steel, and roller surface with hard chrome ≥ 0.05mm
 Diameter of Shaft  65mm
 Shaft Material  45# high grade steel tempering treatment (HB220-260)
 Drive Type  Chain of Transmission
 Forming Speed  0-15m/min (excluding cutting time)
 Main Power  5.5KW
 Cutting Device  Cutting Type  Hydraulic cutting
 Cutting Die Material  Cr12Mov steel, HRC58-62
 Cutting Power  3KW
 Cutting Tolerance  +/-1.5mm
 Encoder  OMRON Brand
 Electrical Control Box  PLC  PANASONIC Brand
 Inverter  YASKAWA Brand
 Touch screen  PANASONIC
 Operation Type  Touch screen + Button
 Hydraulic Station  Hydraulic Station  Famous Chinese brand
 Support Table  Table type  Simple non-power type
 Function  To support the finished panels



   Working Flow

Decoiler --- Pinch Feeding --- Main Roll Forming --- Hydraulic Cutting --- Support Table

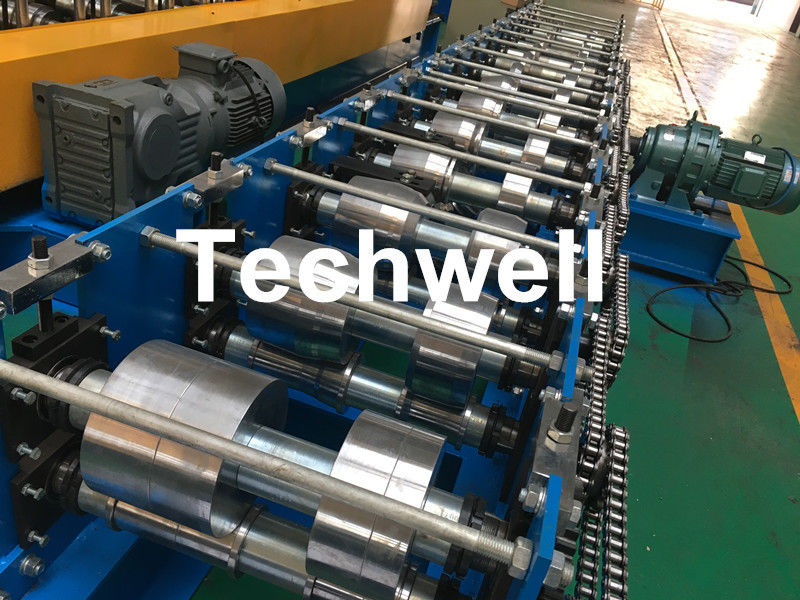

5.5KW Eavestrough  Rain Portable Gutter Machine With Hydraulic Cutting 0


   Main Components


  • Decoiler / Uncoiler ------------------------------------------------------------1 Unit
  • Pinch Feeding -----------------------------------------------------------------1 Unit
  • Main Roll Forming ------------------------------------------------------------1 Unit
  • Hydraulic Cutting--------------------------------------------------------------1 Unit
  • Hydraulic Station--------------------------------------------------------------1 Unit
  • Electrical Control Board------------------------------------------------------1 Unit
  • Run-out Table------------------------------------------------------------------1 Unit


   Reference Profiles Drawing

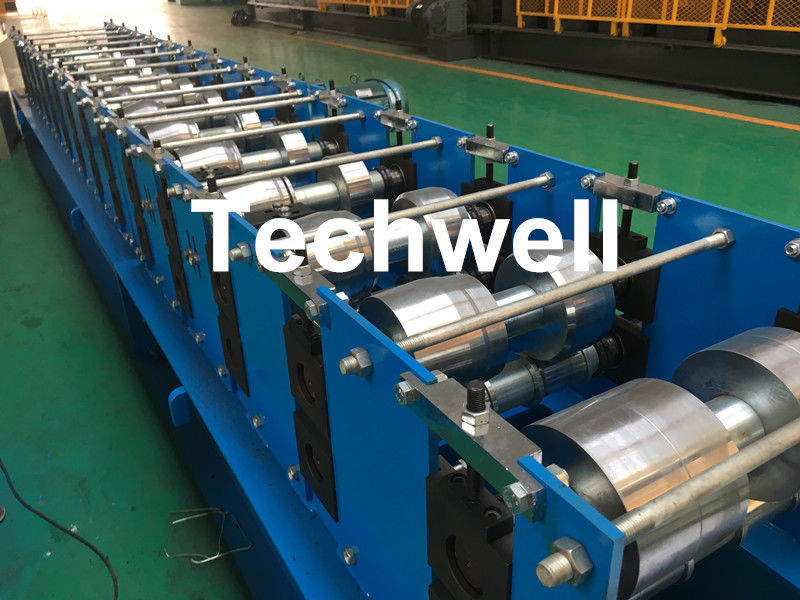

5.5KW Eavestrough  Rain Portable Gutter Machine With Hydraulic Cutting 1

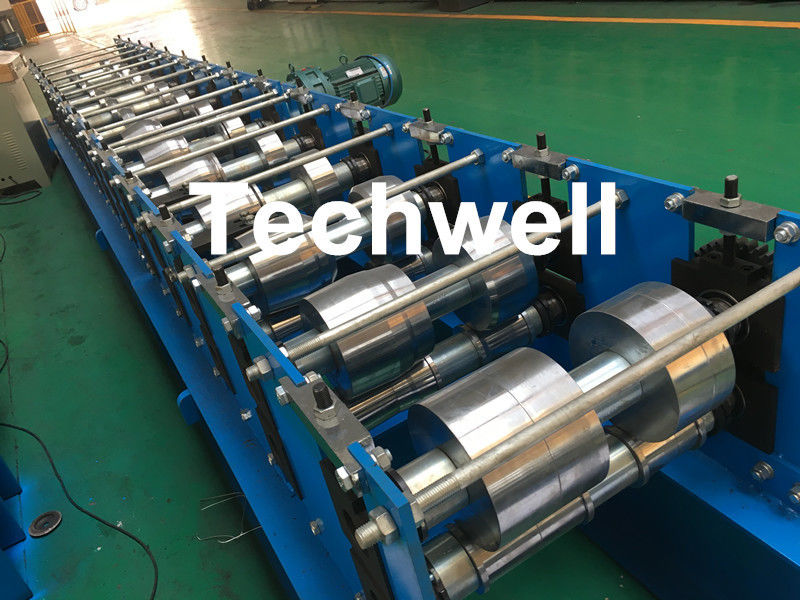

5.5KW Eavestrough  Rain Portable Gutter Machine With Hydraulic Cutting 2


   Application

Rainwater gutter, k gutter, box gutter , seamless gutter

   Competitive Advantages


  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience


   More Machine Pictures

5.5KW Eavestrough  Rain Portable Gutter Machine With Hydraulic Cutting 3
