Hydraulic Cutting Metal Stud Roll Forming Machine For Roof Ceiling Batten

China Hydraulic Cutting Metal Stud Roll Forming Machine For Roof Ceiling Batten supplier

Large Image :  Hydraulic Cutting Metal Stud Roll Forming Machine For Roof Ceiling Batten

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-ST65

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Detailed Product Description
Width Of The Plate: According To Customer's Requirement Coil Thickness: 0.4-1.0mm
Decoiler Type: Manual Or Auto Or Hydraulic Type Main Power: 4KW
Workign Speed: 0-15m/min Forming Stations: About 10 Steps (adopt Italy Technology)

Metal Stud Roll Forming Machine With Hydraulic Cutting For Making Furring Channel / Roof Ceiling Batten





   Main Specifications of Stud Roll Forming Machine



Material G.I Coil
Material Thickness 0.4-1.0mm
Main Power 4KW
Hydraulic Power 4KW
Forming Station about 10 steps ( adopt Italy Technology )
Axis Diameter 70mm
Forming Frame Structure Guiding Column + Slide Blocks; This forming frame structure design is much high precision than wall plate welding structure
PLC Panasonic Brand
Machine Diameter about 7000mm(L) x 800mm(W) x 1300mm (H)
Weight of machine about 4Ton
Voltage 380V, 3 Phase 50Hz ( or depend on customer’s requirement )





   Main Components



Decoiler / Uncoiler 1 Unit
Feeding 1 Unit
Main roll forming machine 1 Unit
Hydraulic punching device 1 Unit

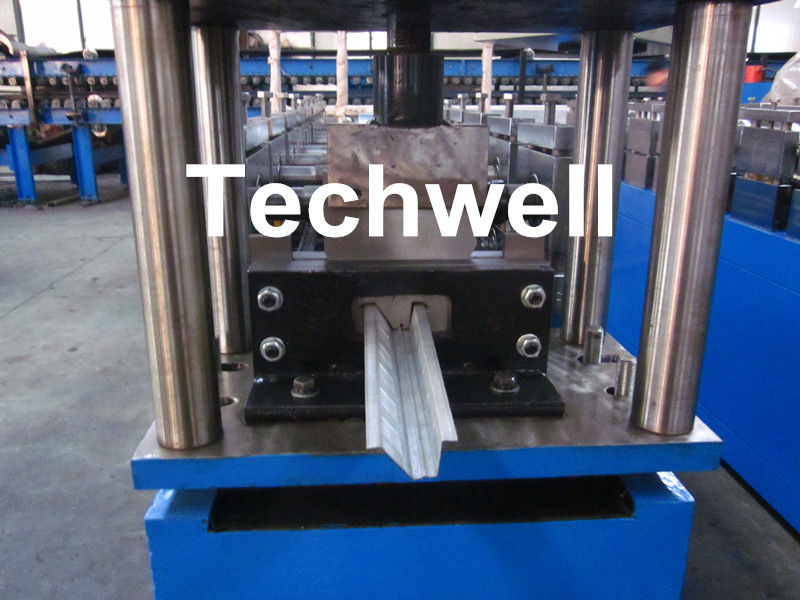

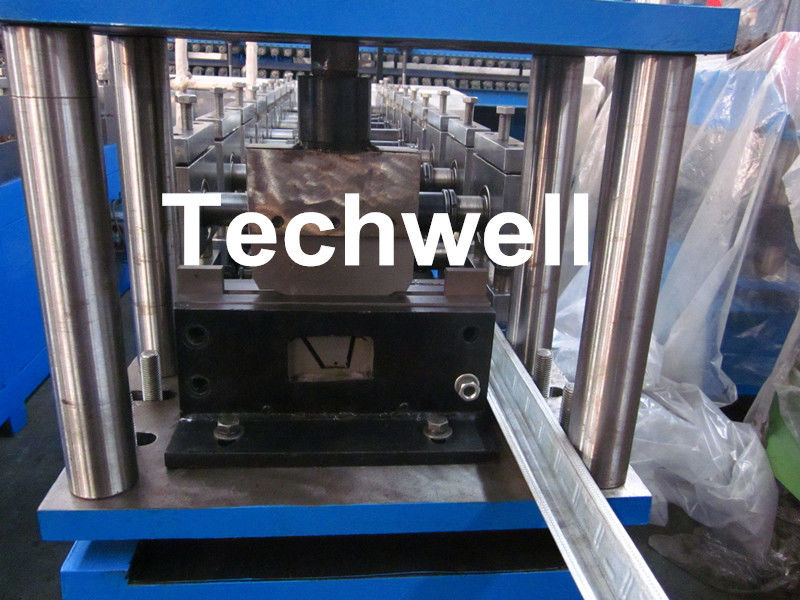

Hydraulic cutting device 1 Unit
Hydraulic Station 1 Unit
PLC computer control 1 Unit
Output table 1 Unit





   Reference Profile Drawing



Hydraulic Cutting Metal Stud Roll Forming Machine For Roof Ceiling Batten
Hydraulic Cutting Metal Stud Roll Forming Machine For Roof Ceiling Batten
Hydraulic Cutting Metal Stud Roll Forming Machine For Roof Ceiling Batten





   Applications



Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten, roof truss,



c truss, light weight steel truss...

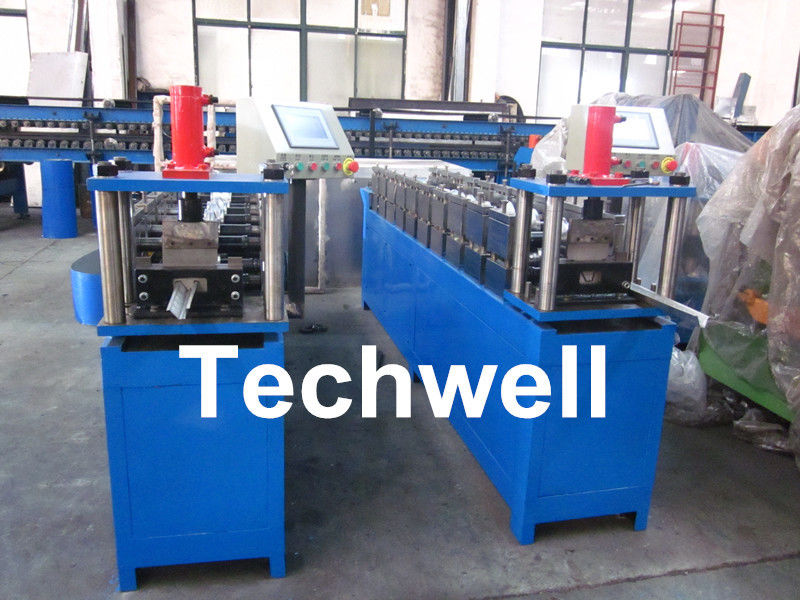

   Machine Reference Pictures



Hydraulic Cutting Metal Stud Roll Forming Machine For Roof Ceiling Batten





   Factory Pictures



Hydraulic Cutting Metal Stud Roll Forming Machine For Roof Ceiling Batten
