Steel Roof Ridge Cap Roll Forming Machine With Guiding Column Forming Structure , PLC Frequency Control System

China Steel Roof Ridge Cap Roll Forming Machine With Guiding Column Forming Structure , PLC Frequency Control System supplier

Large Image :  Steel Roof Ridge Cap Roll Forming Machine With Guiding Column Forming Structure , PLC Frequency Control System

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-RCM

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Standard Packing
Delivery Time: 55-65 Working Days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Detailed Product Description
Suitable Material: Color Steel Plate, Galvanized Forming Structure: Guiding Column
Decoiler Type: Manual Or Hydraulic Shaft Diameter: ¢75mm
Voltage: 380V, 3 Phase, 50Hz (or Customer's Requirement) Forming Speed: 0-15m/min

Steel Roof Ridge Cap Roll Forming Machine With Guiding Column Forming Structure, PLC Frequency Control System



   Main Technical Specifications



1. Manual Decoiler
Capacity Max load 3000KG
De-coiler type Manual passive type de-coiler
2. Feeding Guide
Function It is used to release the head of coil and feed into the forming machine, making the coil straight and flat after de-coiling.
3. Main roll forming machine
Main motor power 5.5KW
Coil Thickness 0.4-0.8mm
Roller Stands Approx. 15 stations (depend on final design)
Machine frame stand Welded structural steel with shot blasting treatment
Forming Structure Guiding Column
Transmission Chain drive
Material of Roller High grade 45# steel, roller surface with 0.05mm hard chrome HRC58-62
Material Shaft High grade 45# steel with heat treatment
Shaft Diameter ¢75mm
Manually adjust the spaces and rollers can produce sheet of difference thickness in a range.
4. Cutting Device & Hydraulic Station
Adopts cutting die with same profile as the product, there is no waste when cutting
Hydraulic cutting
Blade material Cr12 with quenched treatment
Cutting Tolerance +/-1.5mm
Heat Treatment of Cutting Blade HRC50-60
Hydraulic Power 2.2KW
5. PLC Control System
Adopts PLC control technology, frequency adjust speed technology, realize the automatic production
Provide good man and machine screen, which can set the batches, plate length, and quantity
Using encoder to calculate the number and measuring the length
Operation Type Touch screen + Button
Electrical Control PLC frequency control system with touch screen
PLC Brand PANASONIC
Encoder Omron Brand
Size of PLC control board 700mm (L) x 1000mm (H) x 300mm (W)
6. Run-out Table
It is used to support the finished panels
The table we supply is 2 pieces, it can support panels with 10000mm at normal condition.
The frame of supporter is welded by square-steel.
Simple non-power table type.



   Flowing Chart of Roof Ridge Cap



Decoiler --- Feeding Guide --- Roll Forming --- Cut-to-length --- Run out Table





   Main Components



Decoiler 1 Unit
Feeding guide 1 Unit
Main roll forming machine 1 Unit
Hydraulic cutting 1 Unit
Hydraulic station 1 Unit
PLC computer control 1 Unit
Output table 1 Unit



   Reference Profile Drawing



Steel Roof Ridge Cap Roll Forming Machine With Guiding Column Forming Structure , PLC Frequency Control System
Steel Roof Ridge Cap Roll Forming Machine With Guiding Column Forming Structure , PLC Frequency Control System





   Applications



Roof ridge cap, ridge cap, ridge tile; ridge valley; ridge flashing; valley flashing; top hat cap, top ridge cap.



   Competitive Advantages



  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

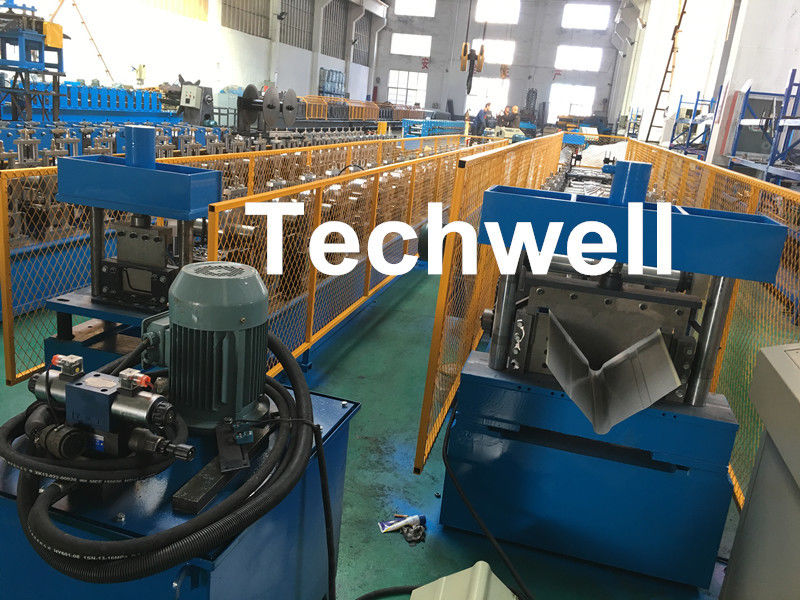

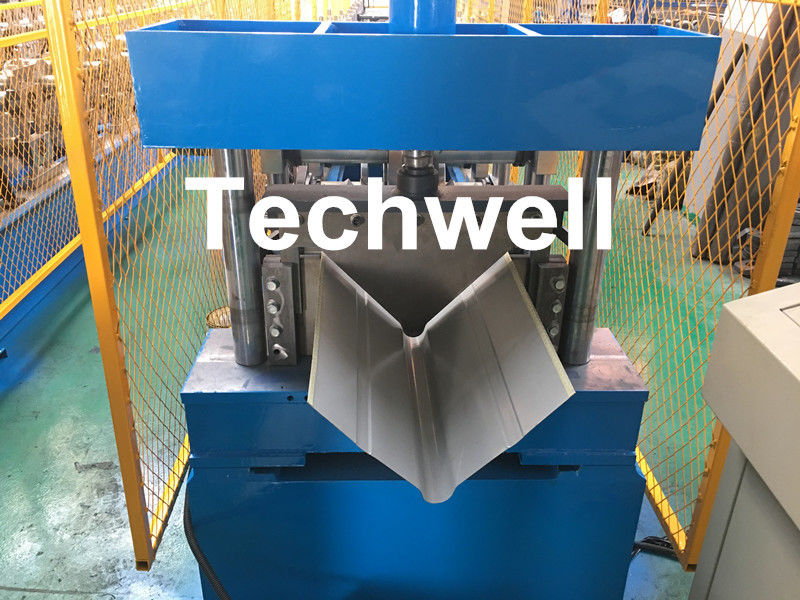

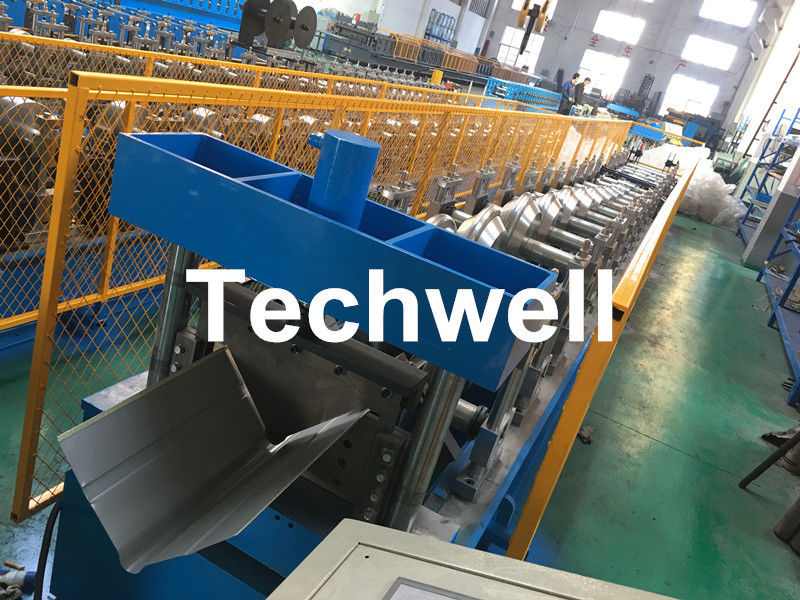

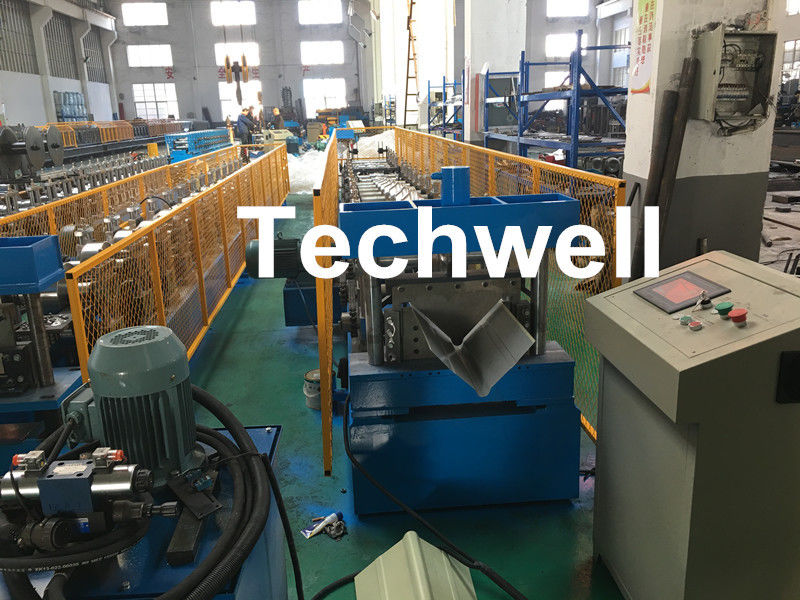

   More Reference Machine Pictures
