10-12m/min Forming Speed Metal Deck Flooring System Floor Decking Roll Forming Machine With 22KW Motor Power

China 10-12m/min Forming Speed Metal Deck Flooring System Floor Decking Roll Forming Machine With 22KW Motor Power supplier

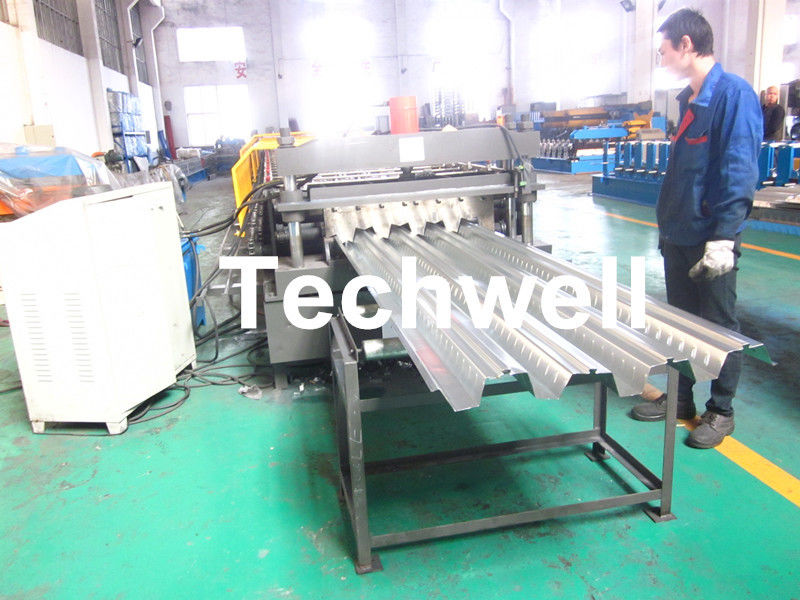

Large Image :  10-12m/min Forming Speed Metal Deck Flooring System Floor Decking Roll Forming Machine With 22KW Motor Power

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-FD1250

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Standard Packing
Delivery Time: 55-65 Working Days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Detailed Product Description
Shaft Diameter: 90mm Main Motor Power: 22KW
Control System: PLC Frequency Control Material Spec: Galvanized Steel Sheet
Thickness Of Coil Sheet: 0.8-1.2mm Forming Stations: About 24 Stations

10-12m/min Forming Speed Metal Deck Flooring System Floor Decking Roll Forming Machine With 22KW Motor Power



   Introduction of Deck Floor Roll Former





 1. Floor deck are widely used in building:the steel structured large-scale
warehouses, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages,
sanatoriums, hotels, villas, residences, and different kinds of greenhouses.



 2. The Floor Deck Roll Forming Machine is with fully automatic control system with PLC.



 3. Length, quantity of sheets is adjustable.



 4. We also can do a custom roll forming machine, i.e. We can design the machine according to your specification and profile drawing.



 5. One roll forming machine only can produce one profile.





   Main Technical Specifications



Suitable Material Thickness of coil sheet 0.8-1.2mm
Coil width Custom-made, 1000mm or 1200mm or 1250mm
Yield strength 250-350Mpa
Material Galvanized steel sheet
Decoiler / Uncoiler Uncoiler type Manual or Hydraulic or Auto Type
Coil width Max.1250mm
I.D 508-610mm
O.D Max.1500mm
Floor Deck Roll Forming Machine Forming Stations about 24 stations (Depend on final design)
Roller material Gcr15 steel, quenched and heated process, HRC58-62
Drive type Chain transmission
Forming speed 10-12m/min
Main power 22KW
Cutting Device Cutting type Hydraulic cutting
Cutting die material Cr12Mov steel, HRC58-62
Cutting tolerance +/-1.5mm
Encoder OMRON Brand
PLC Electrical Control Board PLC PANASONIC Brand
Inverter YASKAWA Brand
Touch screen PANASONIC
Operation type Touch screen & Button
Hydraulic Station Hydraulic Station Famous Chinese Brand
Hydraulic power 4.0KW
Hydraulic pressure 10-12Mpa
Runout Tables Table type Simple nonpower type
Function To support the finished panels





   Main Components



  • Decoiler ------------------------------------------------- 1 Unit
  • Feeding ------------------------------------------------- 1 Unit
  • Main roll forming machine ----------------------------1 Unit
  • Hydraulic cutting device ------------------------------1 Unit
  • Hydraulic Station ------------------------------------- 1 Unit
  • PLC computer control --------------------------------1 Unit
  • Output table ------------------------------------------- 1 Unit



   Working Flow Chart



10-12m/min Forming Speed Metal Deck Flooring System Floor Decking Roll Forming Machine With 22KW Motor Power





  Applications



Steel floor deck, metal deck, steel deck, metal decking sheet, steel structure floor deck...



   Competitive Advantages



1. Durable and widely used products

2.Simple to operate when assemble

3.Direct manufacturer, provide with high quality and best price.

4.Provide sample in free.

5.Products and design solution supplied fast and freely

6.Best design oriented for your special requirements



   More Machine Pictures



10-12m/min Forming Speed Metal Deck Flooring System Floor Decking Roll Forming Machine With 22KW Motor Power
