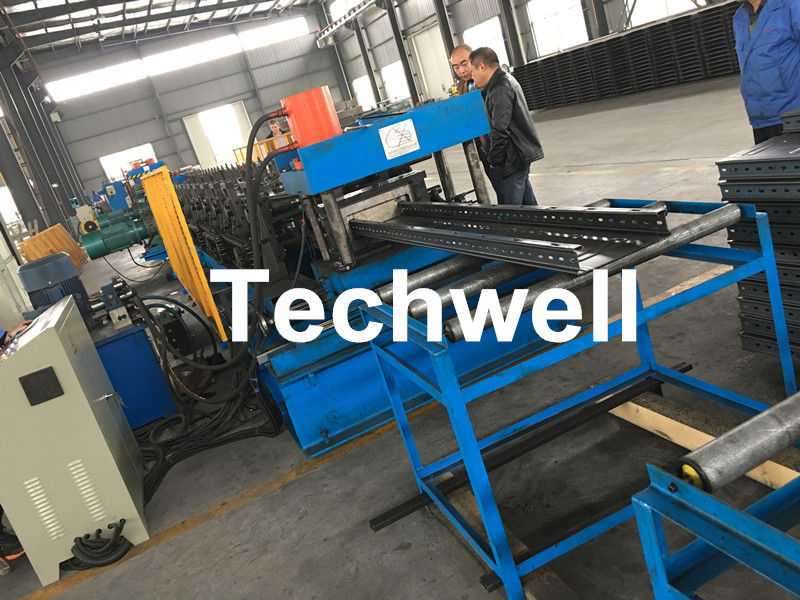

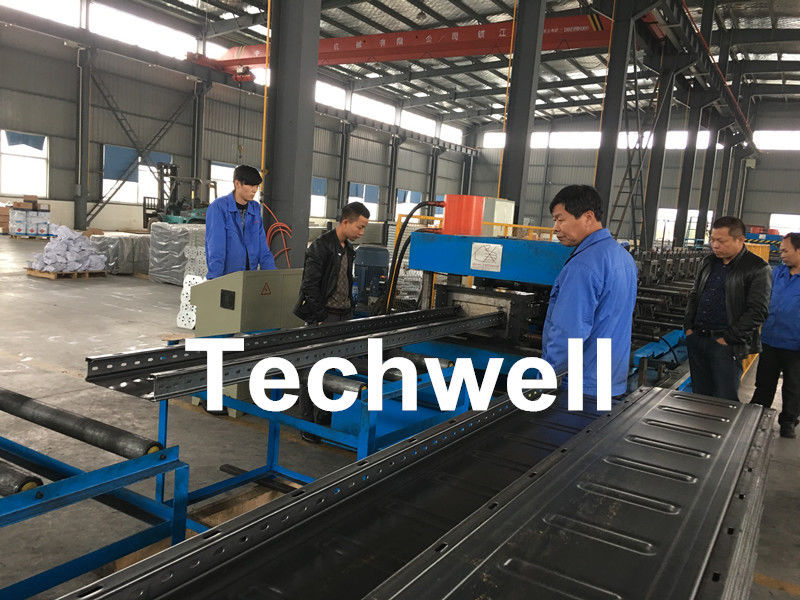

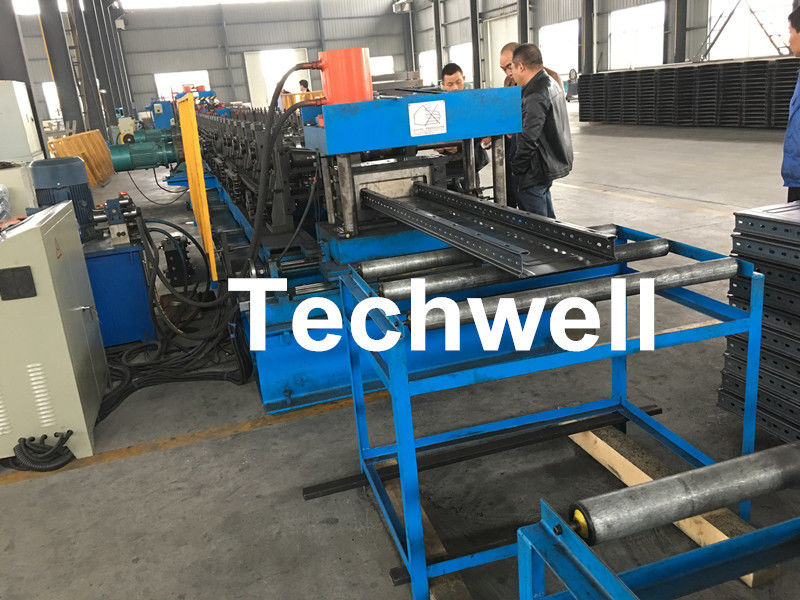

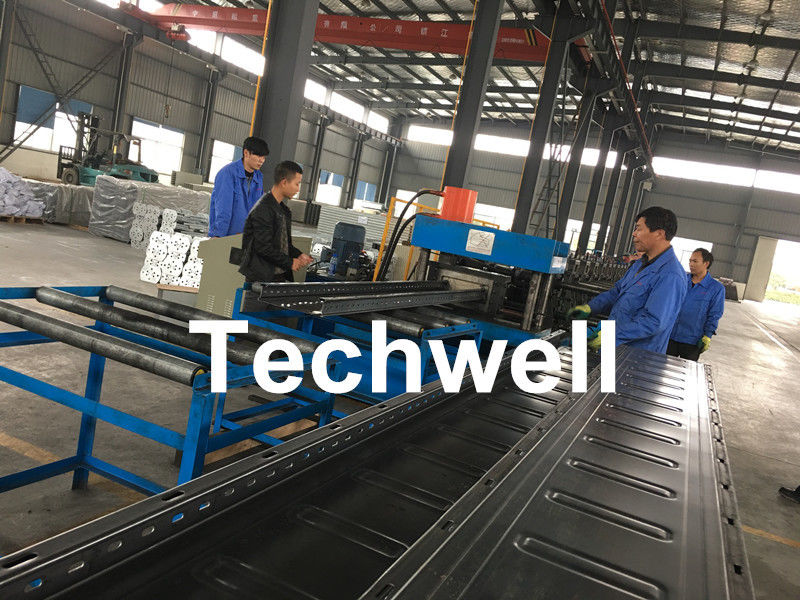

High Speed Cable Tray Roll Forming Machine With 18 Steps Forming Stations TW-CBT300
Description
Cable tray roll forming machine consists of uncoiler, leveling machine, servo feeding device, press machine, punching system, cutting device, guiding device, roll former and run-out table. With full and special experience, we can customize cable tray roll forming machines or cable tray roll forming production lines according to customers’ profile drawings and specifications.
Technical Parameter
| NO | Technical Specifications | Remark | |
| 1 | Hydraulic Decoiler | Decoiler Type | Hydraulic decoiler |
| Weight capacity of decoiler | 7 Ton | ||
| Electric releasing coil, hydraulic expanding, tension | |||
| Motor power | 5.5KW | ||
| Hydraulic system power | 4.0KW | ||
| 2 | 7 Roller Leveling Machine | Leveling device | 2 Rollers pinch feeding, 7 rollers leveling |
| Leveling roller diameter | about Φ 90mm | ||
| Leveling roller material | high grade 40Cr | ||
| Heat treatment of leveling roller | surface Hi-frequency quench treatment | ||
| Leveling motor power | 4.0KW | ||
| 3 | Servo Feeding Machine | Servo motor power | 3.0KW |
| To exact accurately feed the sheet into punching machine according to the set program | |||
| 4 | Hydraulic Pre-Punching Machine | Punching Die | Cr12 Mov, quenching process |
| Punching Die size | according to drawing | ||
| Punching power | 11KW | ||
| Punching controlled by PLC | |||
| 5 | Main Roll Forming Machine | Raw material | GI or Carbon Steel |
| Coil thickness | 1.0-2.5mm | ||
| Roller stands | approx 18 stations | ||
| Type of forming machine | Chain transmission | ||
| Roller material | high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm | ||
| Shaft diameter | ￠80mm | ||
| Material of Shaft | 40Cr high grade Steel tempering treatment (HB220-260) | ||
| Motor power | 15 KW | ||
| Cutting type | Hydrauluic cutting | ||
| Hydraulic power | 15 KW | ||
| Forming speed | about 0-15m/min | ||
| 6 | Hydraulic Cutting & Hydraulic Station | Cutting type | Hydraulic Post-cutting |
| Cutting blade material | Cr12Mov, Quench treatment,HRC58-62 | ||
| Hydraulic power | 15 KW | ||
| Length measuring | Automatic encoder length measuring | ||
| Tolerance of length | +/-1.5mm for each piece end product | ||
| Encoder | OMRON Brand | ||
| 7 | Electrical System | PLC | PANASONIC Brand |
| Inverter | YASKAWA Brand | ||
| Touch screen | PANASONICE | ||
| Operation type | Touch screen & Button | ||
| 8 | Hydraulic Station | Hydraulic station | Famous Chinese brand |
| 9 | Support Tables | Table type | Simple nonpower type |
| Function | To support the finished corrugated panels |
Main Components
Cable Tray Profile Drawing
Working Flow Chart
Decoiling --- Guiding & Leveling --- Punching --- Roll Forming --- Hydraulic Cutting --- Run-out Table
Applications
Cable tray, cable ladder, cable profile, tray profile
