Place of Origin:
China
Brand Name:
TECHWELL
Certification:
CE, ISO
Model Number:
TW-C300
Contact Us
Auto Adjustable C Purlin Roll Forming Machine For Making 3 Profiles With 10-15m/min Forming Speed
Description
|
1. This C purlin roll forming machine adopt coil production material to form C Profiles through 5 Ton manual decoiler, pinch feeding, leveling rollers, Punching unit, Pre-cutting, main roll forming part, hydraulic station, PLC control system and Non-power type support table. |
|
2. The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry. |
|
3. It can produce 3 kinds model on the same machine. |
Working Flowing
Decoiler --- Fedding & Leveling --- Roll Forming --- Punching --- Cut-to-length --- Run out table
Main Specifications

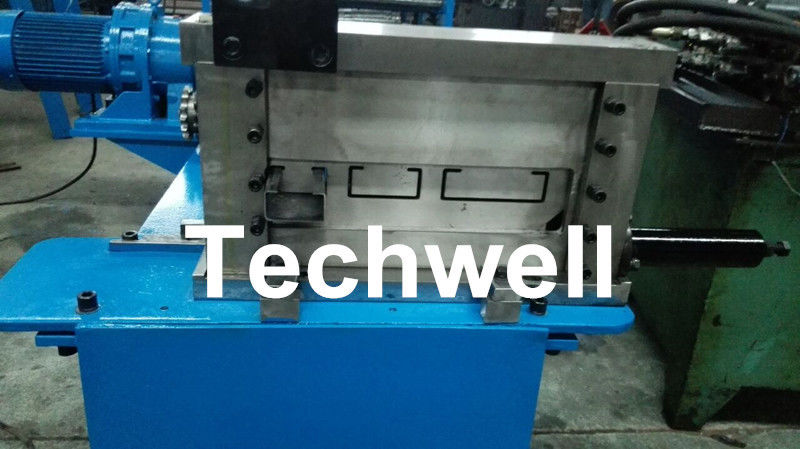

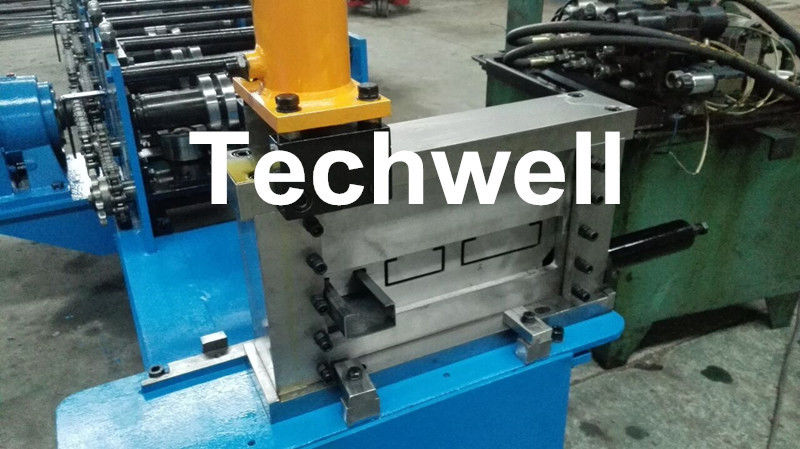

| Coil Material | Thickness | 1.5-3.0mm |
| Material | Mild steel. GI | |
| Decoiler / Uncoiler | Coil Width | Max. 1500mm |
| I.D | 400-530mm | |
| O.D | Max. 1500mm | |
| Weight capacity of decoiler | 5Ton Max. | |
| Pinch Feeding & Leveling Device | 2 Rollers pinch feeding | |
| 7 Rollers leveling | Upper 3 roller, lower 4 rollers | |
| Leveling roller diameter | about Φ90mm | |
| Motor power | about 4KW | |
| Main Roll Forming Part | Forming Stations | 16 Stations ( Depend on Profiles ) |
| Roller material | GCr15 high grade steel ( HRC58-62 ), and roller surface with hard chrome ≥ 0.05mm | |
| Diameter of shaft | Φ80mm | |
| Shaft material | High grade 45# steel | |
| Drive type | Chain transmission | |
| Forming speed | 0-15m/min | |
| Main power | 15KW | |
| Hydraulic Punching Device | Punching type | Hydraulic punching type |
| Punching mould size | According to drawing | |
| Hydraulic power | 11KW | |
| Cutting | Cutting type | Hydraulic cutting |
| When cutting, machine stop | ||
| CuttingTolerance | 10m+/-1.5mm | |
| Encoder | OMRON Brand | |
| Electrical control | PLC | PANASONIC Brand or Custom-made |
| Inverter | YASKAWA Brand or Custom-made | |
| Touch screen | PANASONICE or Custom-made | |
| Operation type | Touch screen & Button | |
| Hydraulic Station | Hydraulic station | Famous Chinese brand |
| Runout Table | Table type | Simple nonpower type |
| Function | To support the finished panels | |
Applications
C purlin, c shaped purlin, c channel, lip channel, c section, c profile, c shape, steel c purlin, c purlin steel structure
Competitive Advantages

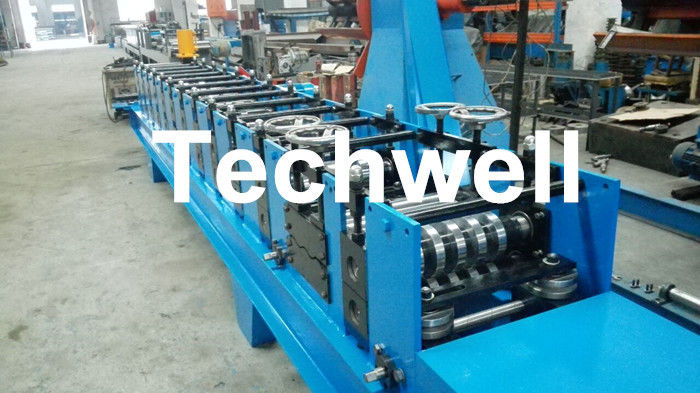

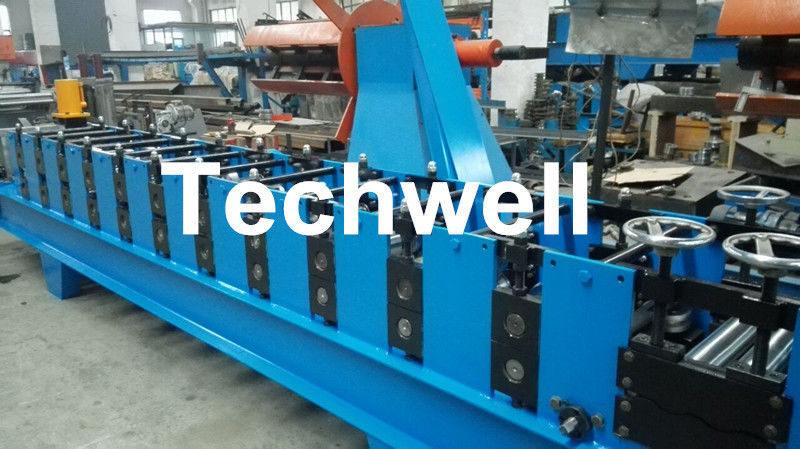

More Machine Pictures
