0-15m/min Forming Speed, High Efficiency C Section Roll Forming Machine With Hydraulic Cutting Type
Technical Parameter
| NO | Item | Parameter | Remark | |
| 1 | Suitable | Type | Galvanized Coil | |
| Width | Depend on profile | |||
| Thickness | 1.5-3.0mm | |||
| Yield Strength | Max. 350Mpa | |||
| 2 | Forming Station | about 18 Stations | Depend on final design | |
| 3 | Forming Speed | about 0-15m/min excluding punching, cutting time | ||
| 4 | Shaft Diameter | 80mm | ||
| 5 | Roller Material | GCr15 Steel | With Hard Chrome | |
| 6 | Drive Type | Chain Drive | ||
| 7 | Punching Model | Hydraullic Post Punching | ||
| 8 | Punching Groups | Depend on hole patterns | ||
| 9 | Cutting Model | Hydraulic Cutting | ||
| 10 | Power Source | Type | 380V/3PH/50HZ | Or Customized |
| Main Power | 11 KW | |||
| Hydraulic power | 7.5KW | |||
| 11 | PLC Control System | PANASONIC | Operation; Screen + Button | |
| 12 | Machine Weight | About 10T | ||
Main Parts
| NO | Name | Qty | Description | |
| 1 | Decoiler | 1 Unit | 5T Manual Decoiler | |
| 2 | Main Machine | Feeding & Leveling | 1 Unit | |
| Roll Forming System | 1 Unit | |||
| Punching System | 1 Unit | Punchign Die: Cr12Mov quenched treatment | ||
| Cutting Device | 1 Unit | Cutting Blade: Cr12Mov quenched treatment | ||
| 3 | PLC Control System | 1 Unit | Operation: Screen + Button | |
| 4 | Hydraulic Station | 1 Unit | Famous CHinese Brand | |
| 5 | Run out Table | 1 Unit | ||
Working Flowing Process
Manual Decoiler --- Feeding Guide & Leveling Device --- Roll Forming --- Punchign & Cutting --- Run out table
Reference Profile Drawing

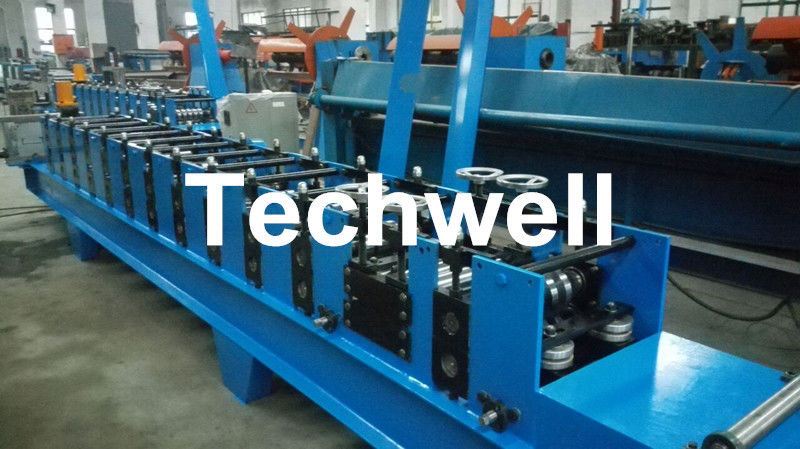

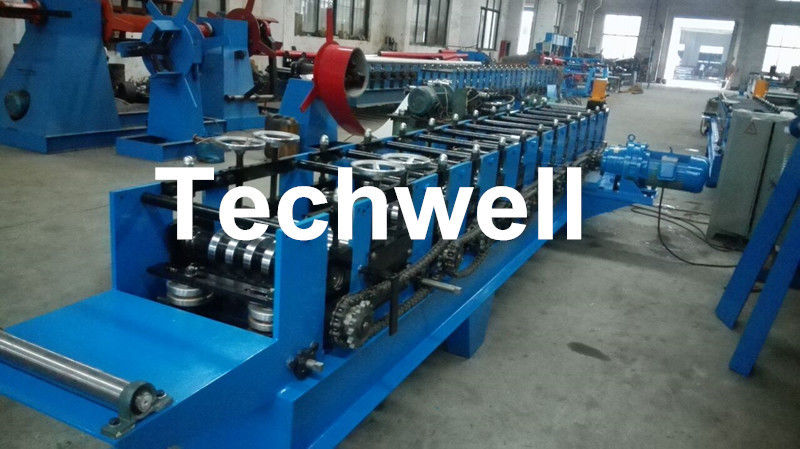

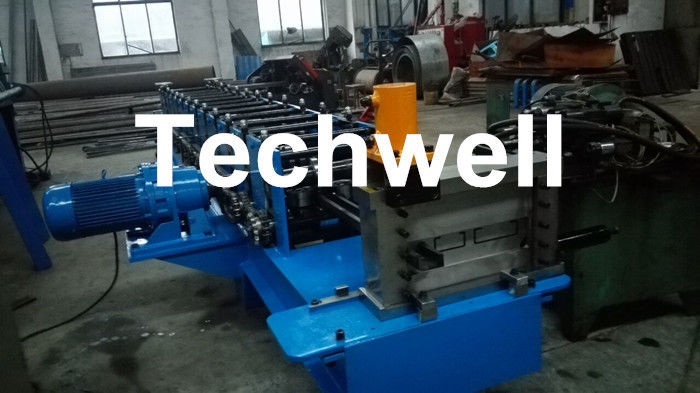

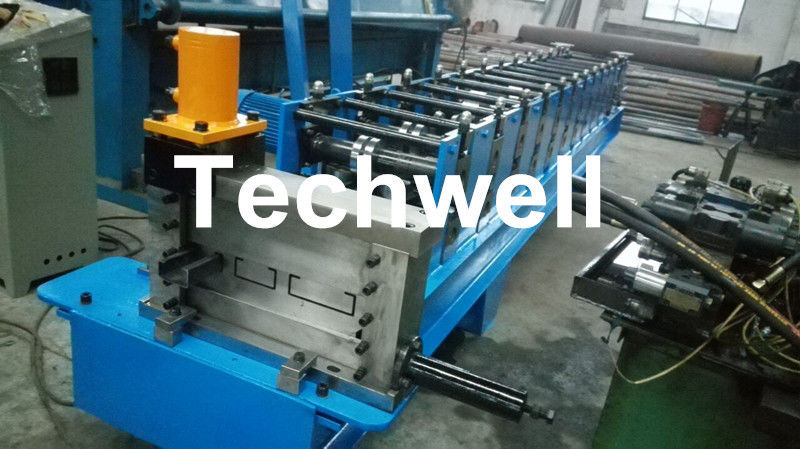

More Machine Pictures
