Manual / Passive Type Uncoiler Machine With Rotary Double Head Mandrel For Supporting The Coil Strip

Manual / Passive Type Uncoiler Machine With Rotary Double Head Mandrel For Supporting The Coil Strip

Roll Former Machine

Roll Forming Equipment

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE, ISO

Model Number:

TW-DECOILER

Contact Us

Request A Quote
Product Details
Product Description

Manual / Passive Type Uncoiler Machine With Rotary Double Head Mandrel For Supporting The Coil Strip



   Description of Manual Decoiler Machine



  • Manual decoiler for roll forming machine is often used together with the light keel roll forming machine, and other simple roll forming machine.



  • For the decoiler, the mianly work is for supporting the coil. For some small machine, coil is quite light and easy to change. Meanwhile the customer does not have machine working speed requirements then choosing the manula decoiler is the right option.



  • For the manual decoiler it is quite cheaper compared with motor decoiler and hydraulic decoiler. But the manual decoiler can not supply power and motor to the machine. Meanwhile for chaning coil, you need to do all the work mnanual.



   Technical Specifications



  1. Decoiler type: Manual rotary decoiler machine
  2. Weight capacity of decoiler: 3Ton / 5Ton
  3. Double heads, turn 180 degree
  4. Coil I.D: 480-520mm
  5. Coil O.D: Max. 1500mm
  6. Width of strip: 120-350mm (Depend on customer's requirement)
  7. Expansion Type: Manual expanding, passive uncoiling
  8. Uncoiling speed: 0-15m/min
  9. Material of main shaft: 40Cr



    Competitive Advantages



1. Professional

More than 10 years' rich experience!

a.Specialized in Manual Curved Arch Roof Sheet Forming Machine;

b.Keeping improving the quality.

2. Reasonable price

We can save your money from every part!

a. Low labor cost;

b. Convenient transportation;

c. Complete supporting industries.

3. Easy to operate

More Competitive!
a. High efficiency
b. Low energy consumption

c. Reliable working

4. OEM / ODM

Customers’ design, color & logo are accepted!

Our outstanding experts and skilled workers are devoting their hard working, to ensure the machine with high quality.

5. ONE-Years warranty, whole life service.

Keep troubles far away from you!

Within the ONE-YEARS period, we could offer the replacement parts to the client free of charge for any parts damaged due to quality problems .

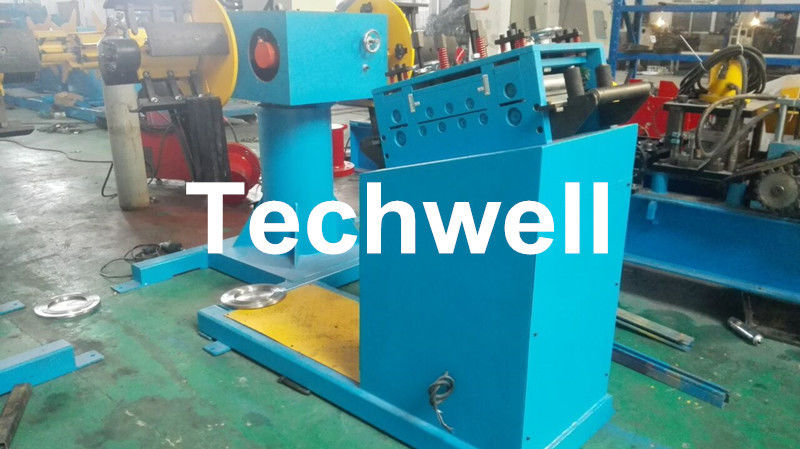

   Machine Pictures



Manual / Passive Type Uncoiler Machine With Rotary Double Head Mandrel For Supporting The Coil Strip 0

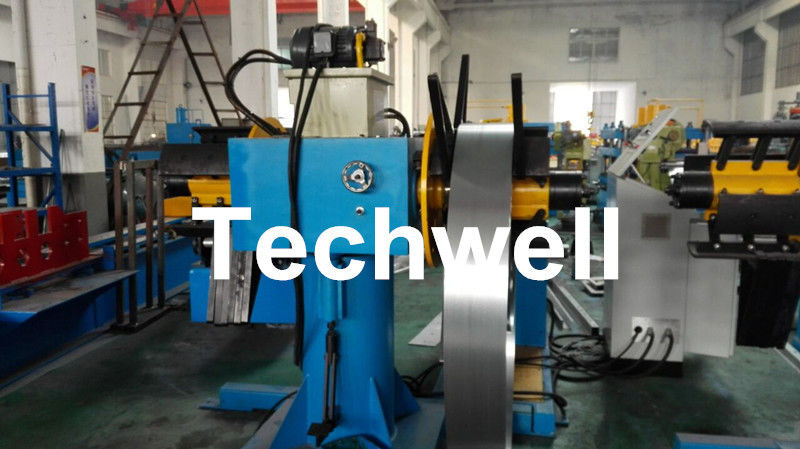

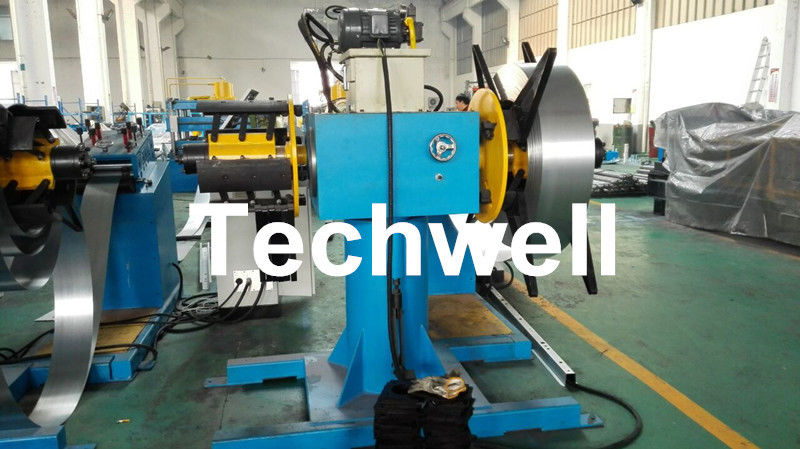

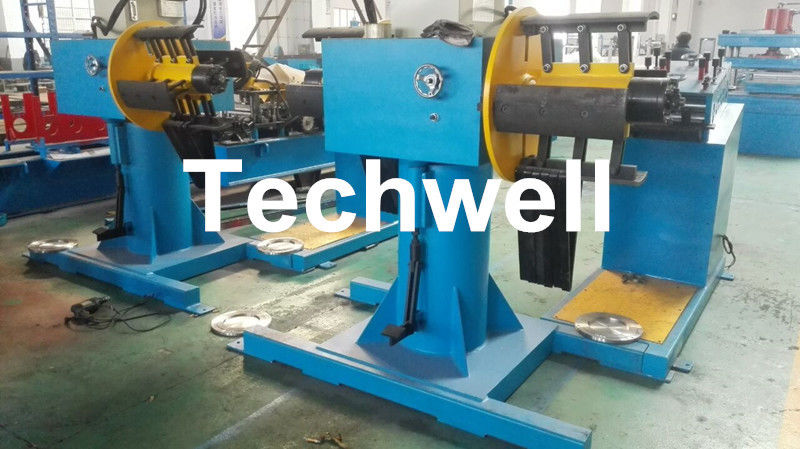

   Workshop Machine Pictures



Manual / Passive Type Uncoiler Machine With Rotary Double Head Mandrel For Supporting The Coil Strip 1
