Main Motor Power 7.5kw Roofing Sheet Making Machine / IBR Profile Roll Forming Machine

Main Motor Power 7.5kw Roofing Sheet Making Machine / IBR Profile Roll Forming Machine

Roof Sheet Roll Forming Machine

roof panel roll forming machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE, ISO

Model Number:

TW-RWM

Contact Us

Request A Quote
Product Details
Model:
Roofing Sheet Profile
Material:
Color Steel, Iron, G.I Coils
Material Width:
Depend On Customer’s Requirement
Main Motor Power:
7.5KW
Hydraulic Motor Power:
4.0KW
Working Speed:
0-15m/min
Product Description

Main Motor Power 7.5kw Roofing Sheet Making Machine / IBR Profile Roll Forming Machine



   Main Specifications of IBR Sheet Making Machine



1. Model: Roofing Sheet Profile

2. Material: Color Steel, Iron, G.I Coils

3. Material thickness: 0.3-0.8mm

4. Material width: depend on customer’s requirement

5. Decoiler Type: manual or automatical type ( depend on customer’s requirement )

6. Weight Capacity Of Decoiler: 5 Ton

7. Main Motor Power: 7.5 Kw

8. Hydraulic Motor Power: 4.0 Kw

9. 14 Forming Station( depend on profile drawing )

10. Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.

11. Main Axis Material: High grade 45#, quenched and heat treatment.

12. Axis Diameter: ¢ 76mm

13. Working Speed: 0-15 m/min

14. Transporting Type: Chain Transmission

15. Type of Cutting: Hydraulic cutting

16. Material Of Cutting Blade: C r 12

17. Machine Frame stand: Welded structural steel

18. Electrical Control: PLC Frequency Control System with touch screen



   Components of IBR Roofing Sheet



Decoiler / Uncoiler 1 Unit
Feeding Guide 1 Unit
Roofing Sheet Roll Forming Machine 1 Unit
Hydraulic Cutting To Length 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control Box 1 Unit
Support Tables 2 Units





    Reference Profile Drawing



Main Motor Power 7.5kw Roofing Sheet Making Machine / IBR Profile Roll Forming Machine 0





   Applications



IBR Roof Sheeting, IBR Sheeting, Chromadeck IBR Roofing, Trapezoidal roof panel, trapezoidal sheet,



trapezoidal roof metal, trapezoidal roofing, metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal



roofing sheet; steel roofing sheet

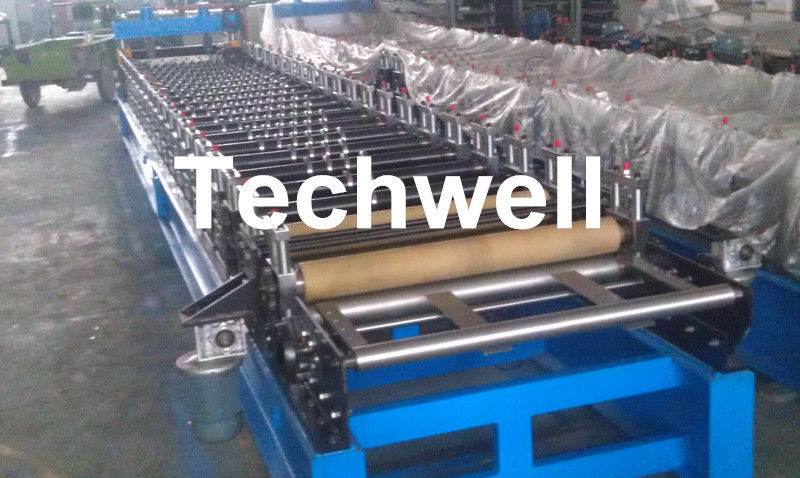

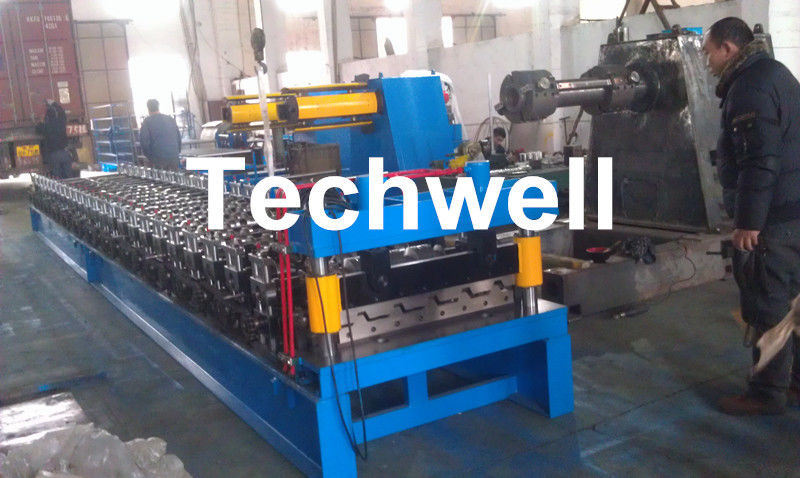

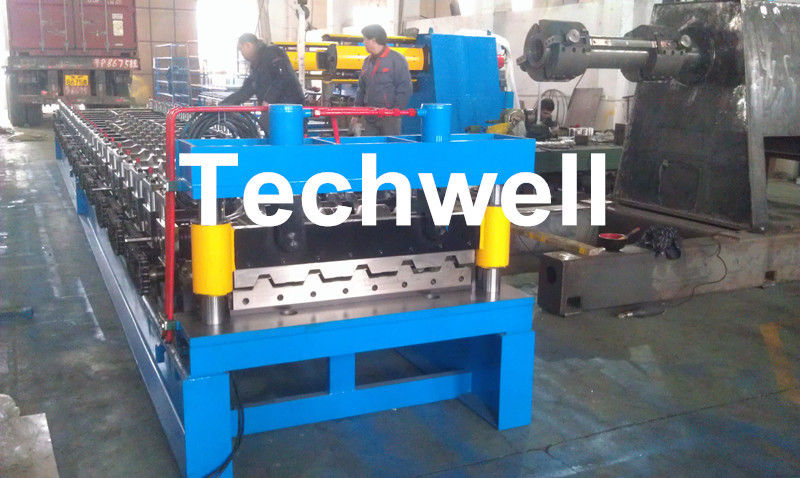

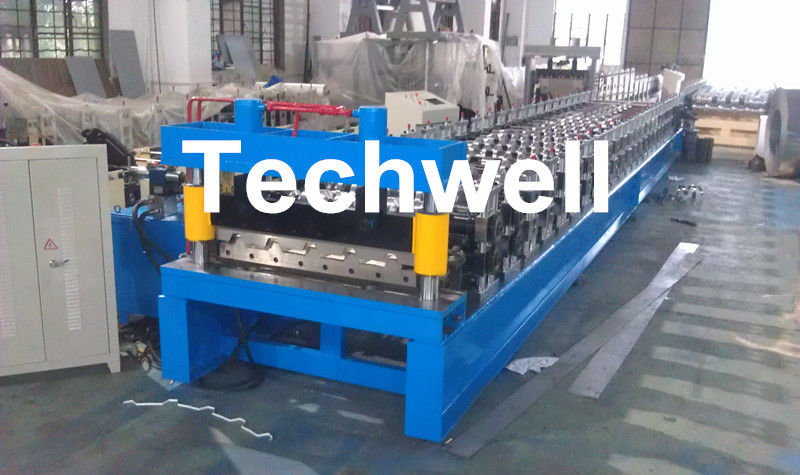

   More Machine Pictures
