HRC58-62 Hardness Standing Seaming Roofing Panel Machine For Making Roof Wall Cladding , Roofing Sheet

HRC58-62 Hardness Standing Seaming Roofing Panel Machine For Making Roof Wall Cladding , Roofing Sheet

Roll Former Machine

Roll Forming Equipment

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE, ISO

Model Number:

TW-STM400

Contact Us

Request A Quote
Product Details
Material Thickness:
0.3-0.8mm
Roller Material:
GCr15 High Geard Steel, HRC58-62
Fomring Speed:
0-18m/min
Forming Stations:
About 11 Station (depend On Profiles)
Diameter Of Shaft:
76mm
Main Power:
5.5KW
Product Description

HRC58-62 Hardness Standing Seaming Roofing Panel Machine For Making Roof Wall Cladding, Roofing Sheet



   Main Technical Parameters



​1. Decoiler

  • Decoiler Type: Manual decoiler
  • Manual expanding and tension
  • Passive uncoil
  • Coil I.D: 508mm
  • Coil Width: Max. 1250mm
  • Weight capacity of decoiler: 5Ton



2. Main Forming System

  • It consis of machine frame, machine stand, transmission parts and forming rollers etc.
  • Forming Material: GI, Aluminium, PPGI, Color Steel
  • Forming Roller Stand: About 17 Stations (Depend on final design)
  • Main Power: 7.5KW
  • Shaft Diameter: 76mm
  • Main Axis Material: First grade 45# steel, heated and quenched
  • Roller Material: GCr15 high grade steel, HRC58-62
  • Forming Speed: 0-20m/min
  • Drive Ttype: Chain drive
  • Machine Frame Stand: Welded structural steel
  • Material of Chain: High grade 45# seel, heated and quenched
  • Manually adjuest the spaces and rollers can produce sheet of different in a range.



3. Cutting Device & Hydraulic Station

  • Cutting Type: Hydraulic cutting
  • Cutting Power: 4.0KW
  • Hydraulic Pressure: 10-15Mpa
  • Hydraulic cutter material: Cr12Mov, quenching process
  • Heat treatment of blade: HRC58-60
  • Cutting length tolerance: +/-1.5mm
  • Hydraulic station is used to drice the cutting device



4. Electrical System

  • PLC: PANASONIC Brand
  • Inverter: YASKAWA Brand
  • Touch screen: PANASONIC
  • Operation type: Famous Chinese Brand



   Main Components



Decoiler / Uncoiler 1 Unit
Feeding Guide 1 Unit
Standing Seam Roof Roll Forming Machine 1 Unit
Hydraulic Cutting Device 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control Board 1 Unit
Runout Tables 2 Units

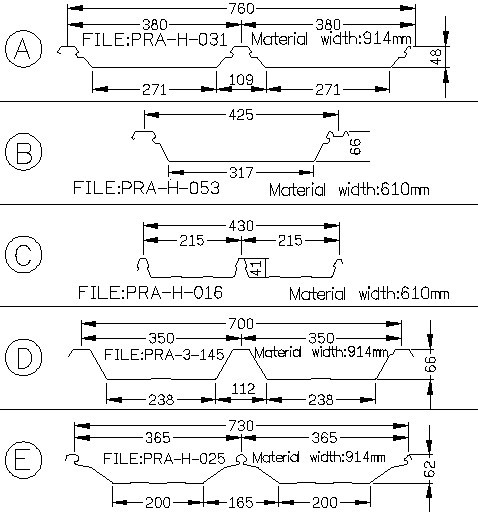

   Reference Profile Drawing
