0-15m/min Cable Tray Roll Forming Machine For Making Steel Cable Tray Sheets

Cable Profile Roll Forming Machine For Making Steel Cable Tray Sheets With GI Or Carbon Steel Forming Material

   Summary of Cable Tray Roll Former

This cable ladder roll forming machine adopt coil production material to form CT100-600 cable ladder Profiles through 5 Ton hydraulic decoiler, Leveling, Servo feeding, Hydraulic Pre-Punching Machine, Main cable ladder roll forming part, Post hydraulic cutting, hydraulic station, PLC control system and Non-power type support table.

   Main Specifications

1) Forming material thickness: 1.5-2.0mm

2) Forming material type: GI or Carbon Steel

3) Machine Frame: high grade steel welded and tempering treatment

4) Forming Speed: 0-15m/min excluding punching / cutting time

5) Forming Motor: ≈15KW

6) Width adjustable motor ≈1.5KW

7) Size adjustment: electrical power adjustment

8) Drive type: Chain Drive

9) Shaft Material: 40Cr high grade Steel tempering treatment (HB220-260)

10) Shaft Diameter: Φ 70mm

11) Bearing: HRB bearing ( Top Chinese brand )

12) Roller Material: high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm

13) Forming Station: ≈ 18 stations

14) Finished profile straightness tolerance ≤±1.5mm/10m

15) Finished profile angle tolerance ≤±1.5 degree/10m

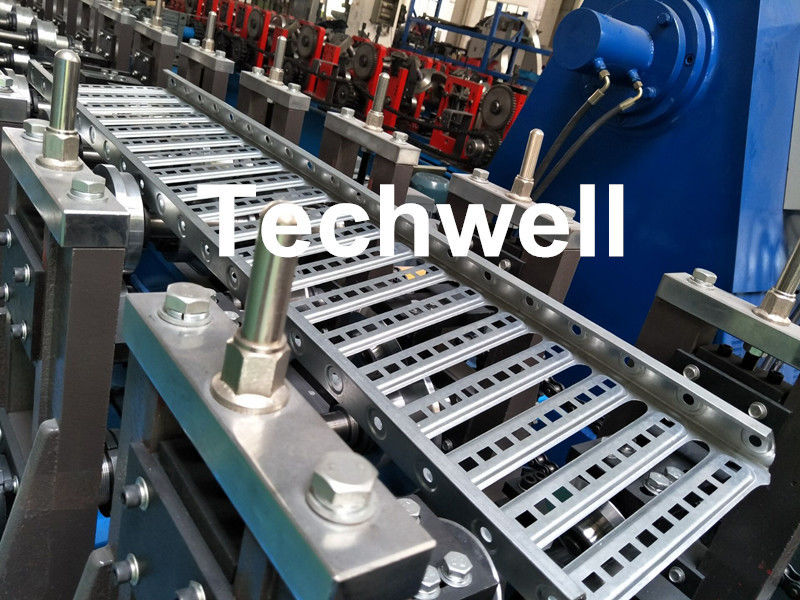

   Sample Products Pictures

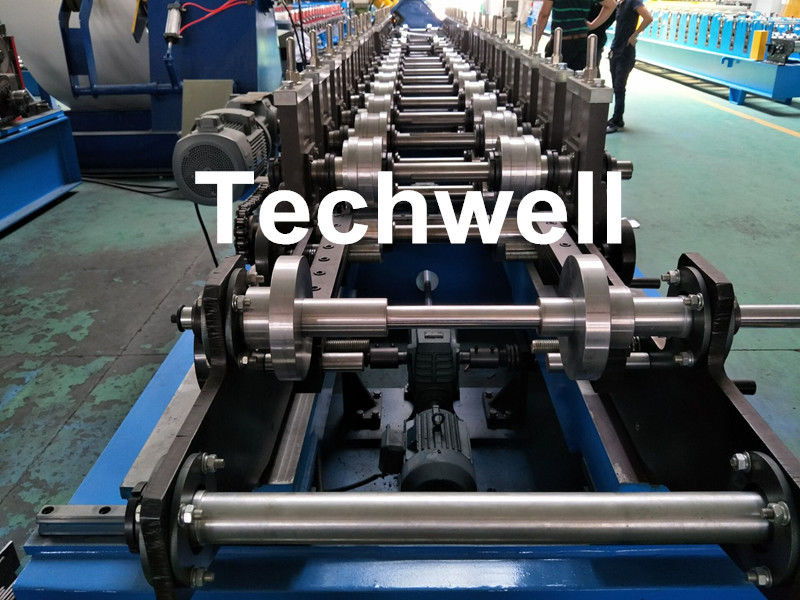

   Main Components

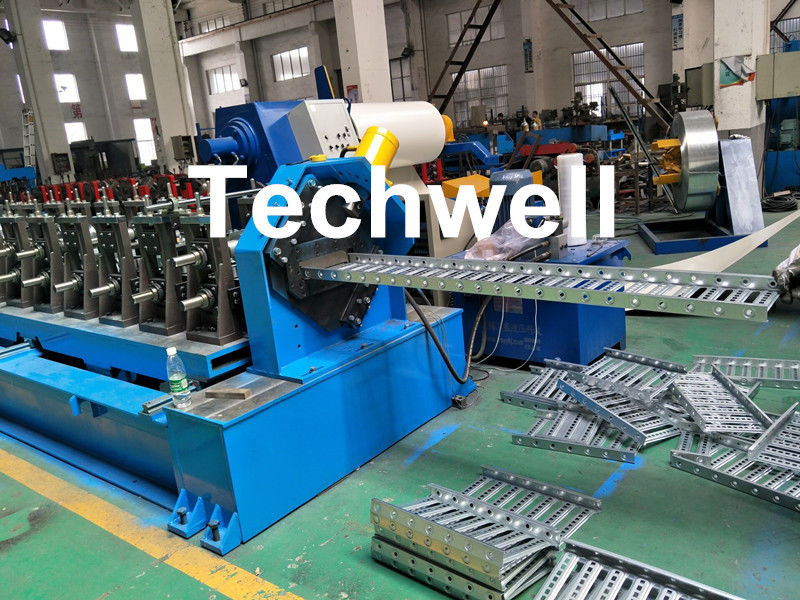

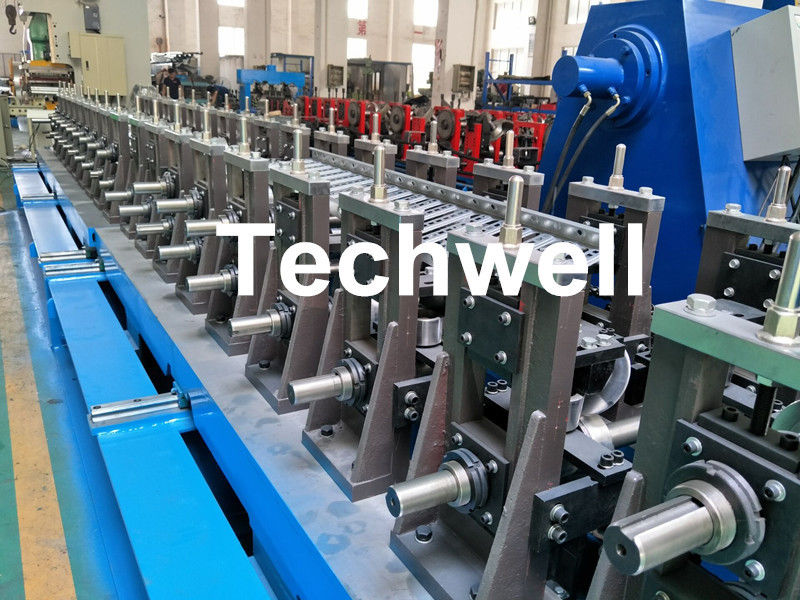

   More Machine Pictures
