90mm Shaft Diameter Cable Tray Roll Forming Machine With 3.0kw Servo Feeding Device

90mm Shaft Diameter Cable Tray Roll Forming Machine With 3.0kw Servo Feeding Device

   Main Technical Specifications

1) Forming material thickness: 1.0-2.5mm

2) Forming material type: GI or Carbon Steel

3) Yield Strength: 230-300Mpa

4) Machine Frame: high grade steel welded and tempering treatment

5) Forming Speed: 0-15m/min (excluding punching / cutting time)

6) Forming Motor: ≈15KW

7) Width adjustable motor ≈1.5KW

8) Size adjustment: electrical power adjustment

9) Drive type: Chain Drive

10) Shaft Material: 40Cr high grade Steel tempering treatment (HB220-260)

11) Shaft Diameter: Φ 90mm

12) Roller Material: high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm

13) Forming Station: ≈ 18 stations

14) Punching TYpe: Hydraulic Pre-punching

15) Hydraulic Power: 11Kw

16) Cutting Blade: Hydraulic Cutting

17) Cutting Blade Material: Cr12Mov, Quench treatment, HRC58-62

18) Finished profile straightness tolerance ≤±1.5mm/10m

19) Finished profile angle tolerance ≤±1.5 degree/10m

   Working Flow Chart

Decoiling --- Guiding & Leveling --- Punching --- Roll Forming --- Hydraulic Cutting --- Run-out Table

   Main Components

• Hydraulic Decoiler --------------------------------------------------------- 1 Unit
• Leveling Device ------------------------------------------------------------ 1 Unit
• Servo Feeding -------------------------------------------------------------- 1 Unit
• Hydraulic Pre-Punching -------------------------------------------------- 1 Unit
• Main Roll Forming Machine ---------------------------------------------- 1 Unit
• Hydraulic Cutting ------------------------------------------------------------1 Unit
• PLC Electrical Control Board -------------------------------------------- 1 Unit
• Hydraulic Stations ---------------------------------------------------------- 1 Unit
• Run Out Table --------------------------------------------------------------- 1 Unit

   Finished Products Pictures

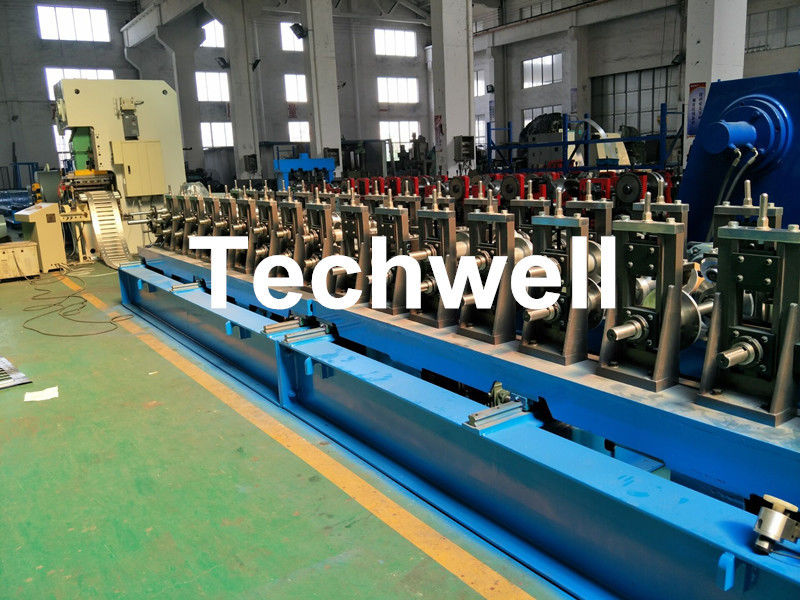

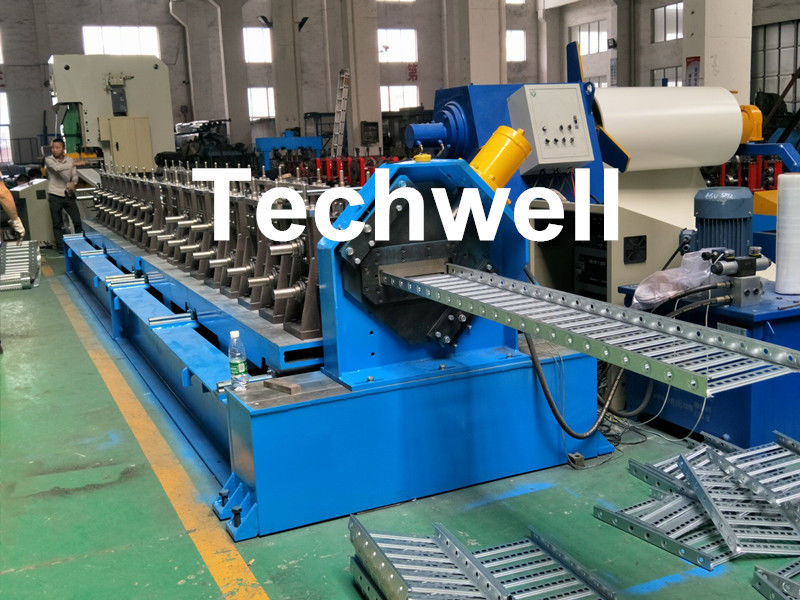

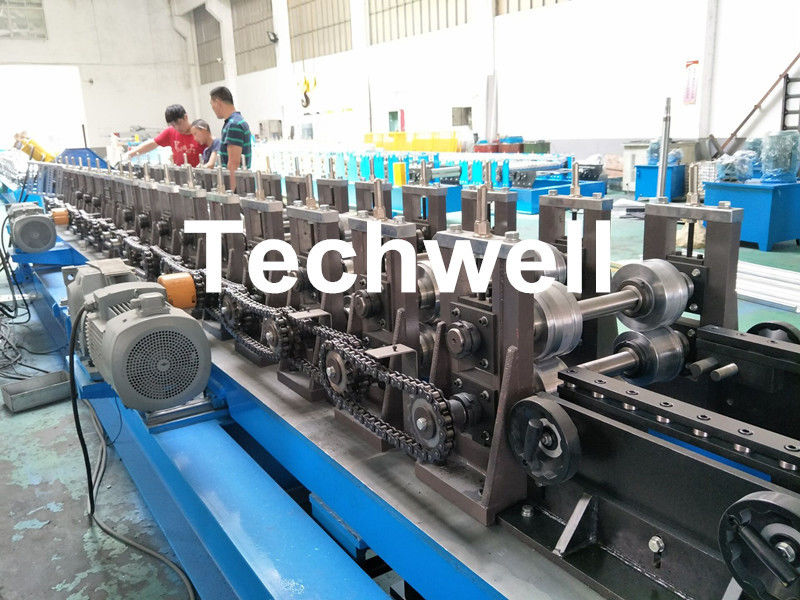

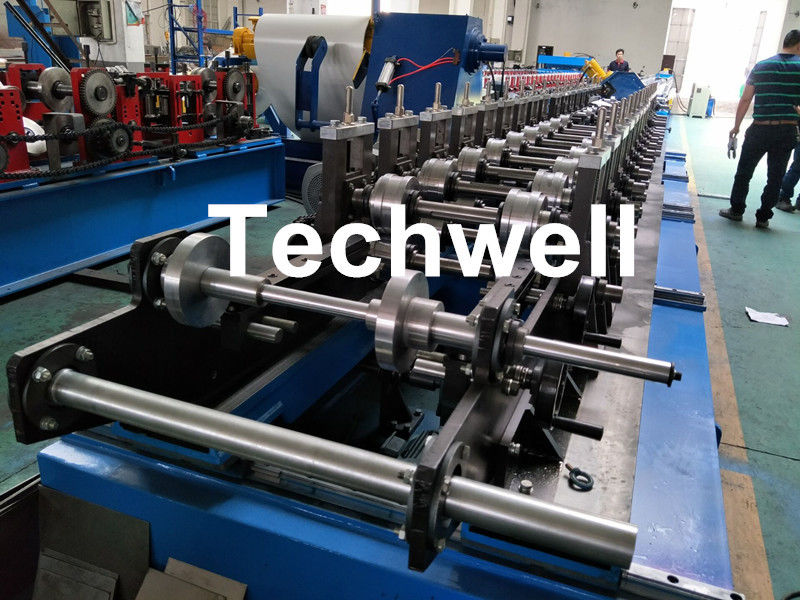

   More Machine Pictures
