Durable Seamless Gutter Machine With Welded Wall Plate Structure Forming Structure

China Durable Seamless Gutter Machine With Welded Wall Plate Structure Forming Structure supplier

Large Image :  Durable Seamless Gutter Machine With Welded Wall Plate Structure Forming Structure

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-GM5

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 60-70 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Detailed Product Description
Coil Thickness: 0.4-0.8mm Forming Stations: About 16 Stations
Shaft Material: 45# High Grade Steel Tempering Treatment (HB220-260) Machine Frame: High Grade Steel Welded And Tempering Treatment
Forming Motor: 5.5KW Hydraulic Station Power: 4.0KW

Gutter Roll Forming Machine With Welded Wall Plate Structure Forming Structure, Plc Frequency Control



   Main Technical Specifications



1. Forming Mateial Thickness: 0.4-0.8mm

2. Forming Material Type: PPGI, Aluminum

3. Machine Frame: high grade steel welded and tempering treatment

4. Forming Structure: Welded wall plte structure

5. Forming Motor: 5.5KW

6. Shaft Material: 45# high grade steel tempering treatment (HB220-260)

7. Shaft Diameter: 65mm

8. Bearing: HRB bearing (Top Chinese brand)

9. Roller Material: 45# high grade steel, and roller surface with hard chrome ≥ 0.05mm

10. Forming Speed: About 0-15m/min ( excluding cutting time )

11. Forming Stations: About 16 stations

12. Cutting Type: Hydraulic cutting after roll forming, Burr-free cutting

13. When cutting, Machine stop

14. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62

15. Hydraulic Station Power: 4KW

16. Hydraulic Pressure: 10Mpa



   Working Flow Chart



Decoiler --- Pinch Feeding --- Main Roll Forming --- Hydraulic Cutting --- Support Table

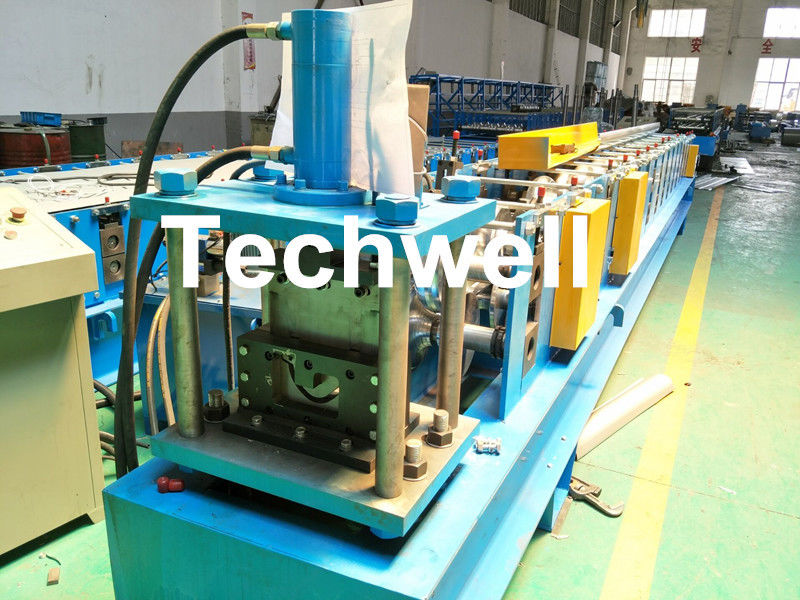

Durable Seamless Gutter Machine With Welded Wall Plate Structure Forming Structure





   Main Components



  • Decoiler / Uncoiler ------------------------------------------------------------1 Unit
  • Pinch Feeding -----------------------------------------------------------------1 Unit
  • Main Roll Forming ------------------------------------------------------------1 Unit
  • Hydraulic Cutting--------------------------------------------------------------1 Unit
  • Hydraulic Station--------------------------------------------------------------1 Unit
  • Electrical Control Board------------------------------------------------------1 Unit
  • Run-out Table------------------------------------------------------------------1 Unit



   Competitive Advantages



  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience



   More Machine Pictures

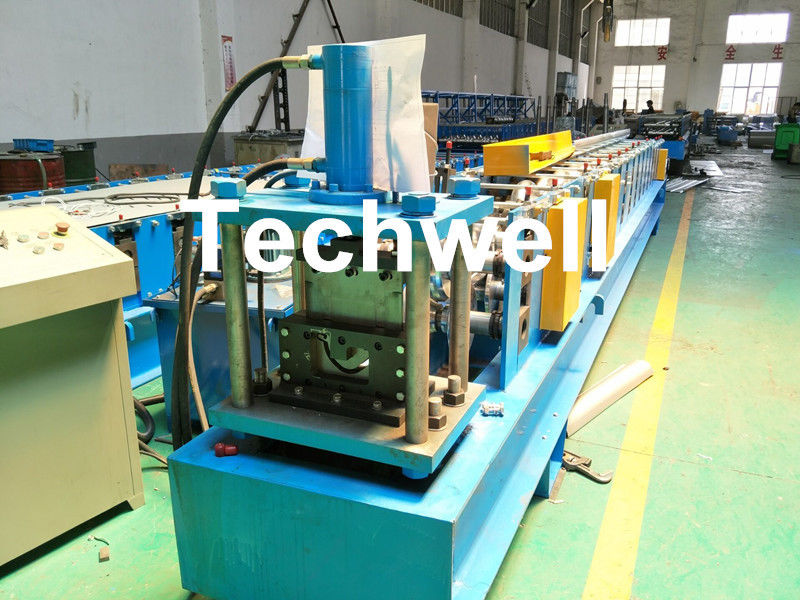

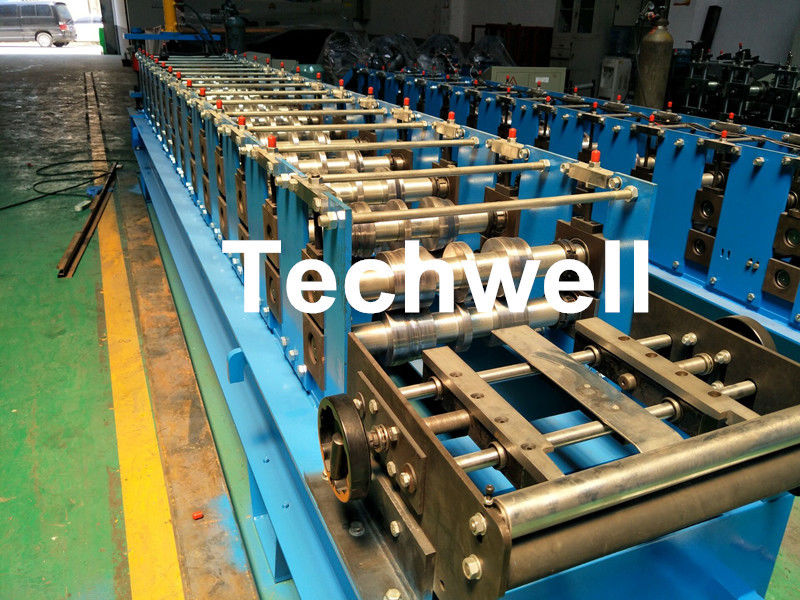

Durable Seamless Gutter Machine With Welded Wall Plate Structure Forming Structure
