18 forming stations Auto Changeover Cable Tray Roll Forming Machine with PLC Electrical Control

18 forming stations Auto Changeover Cable Tray Roll Forming Machine with PLC Electrical Control

Cable Tray Making Machine

cable tray manufacturing machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE, ISO

Model Number:

TW-CBT300

Contact Us

Request A Quote
Product Details
Forming Structure:
Iron Casting Type
Electric Source:
380V, 50HZ,3 Phase
Punching:
Punch Machine
Cutting:
Hydraulic Pre-Cutting
Driven System:
Chain Drive
Rolling Speed:
0-15m/min
Product Description

18 forming stations Auto Changeover Cable Tray Profile Forming Machine with PLC Electrical Control





   Main Technical Parameters



1. Coil Material: GI or Carbon Steel

2. Forming material thickness: 1.0-2.5mm

3. Decoil Type: Hydraulic Decoiler

4Electric releasing coil, hydraulic expanding, tension

5I.D: 508, 610mm

6. O.D: Max. 1500mm

7. Leveling Device: 2 Rollers pinch feeding, 7 rollers leveling

8. Leveling roller diameter: about Φ 90mm

9Leveling motor power: 4.0KW

10Feeding Type: Servo Feeding

11Servo motor power: 3KW

12Punching Type: Punch Machine

13. Punching Die: Cr12 Mov, quenching process

14. Punching Die size: according to drawing

15. Punching Power: 15KW

16Punching controlled by PLC

17CuttingHydraulic pre-cutting

18. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62

19Hydraulic Station Power: 15KW

20Shaft Material: 40Cr high grade Steel tempering treatment (HB220-260)

21. Shaft Diameter: Φ 85mm

22Roller Material: high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm

23Forming Station: 18 stations

24Forming Speed: 0-15m/min

25. Forming Motor: 15KW

26Size adjustment: electrical power adjustment

27Drive type: Chain drive





   Sample Products Pictures

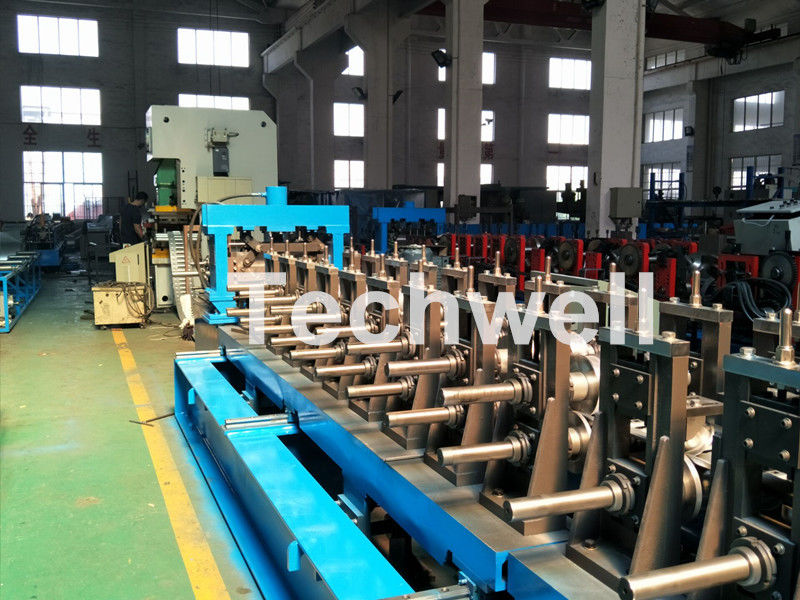

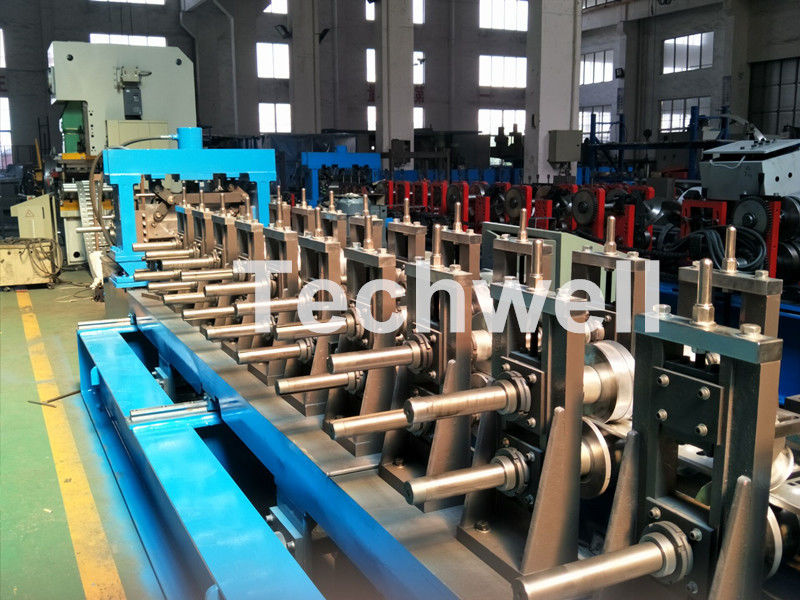

18 forming stations Auto Changeover Cable Tray Roll Forming Machine with PLC Electrical Control 0





   Main Components



  • Hydraulic Decoiler --------------------------------------------------------- 1 Unit
  • Leveling Device ------------------------------------------------------------ 1 Unit
  • Servo Feeding -------------------------------------------------------------- 1 Unit
  • Punching Machine ---------------------------------------------------------- 1 Unit
  • Hydraulic Pre-Cutting -------------------------------------------------------1 Unit
  • Main Roll Forming Machine ---------------------------------------------- 1 Unit
  • PLC Electrical Control Board -------------------------------------------- 1 Unit
  • Hydraulic Stations ---------------------------------------------------------- 1 Unit
  • Run Out Table --------------------------------------------------------------- 1 Unit



   Competitive Advantages



  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience



   Packing Cable Tray Machine Pictures

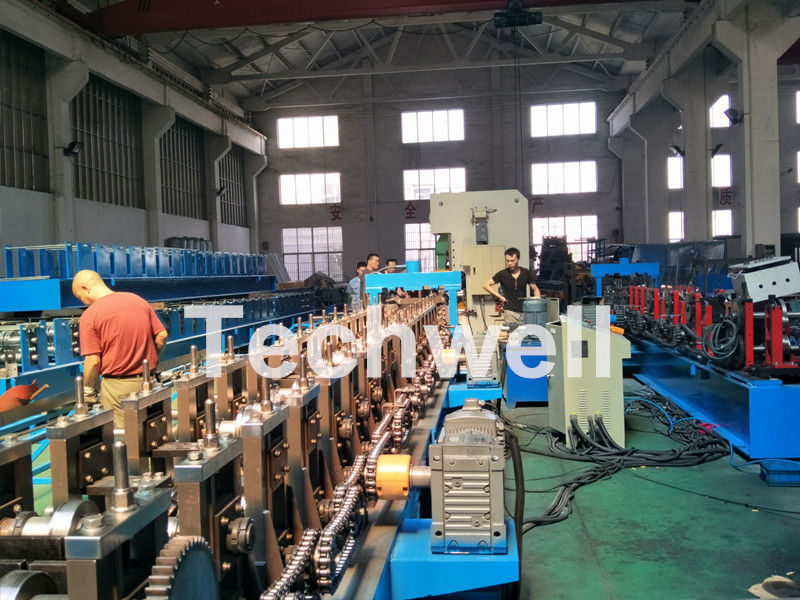

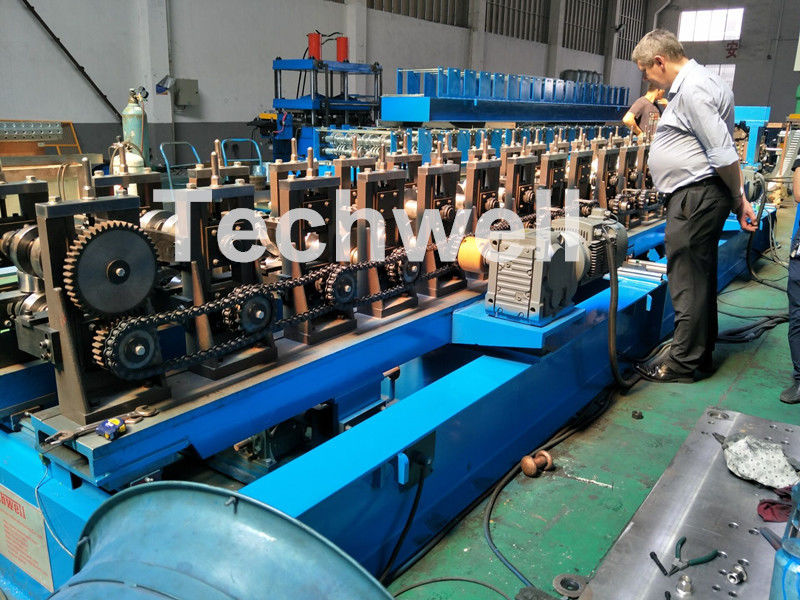

18 forming stations Auto Changeover Cable Tray Roll Forming Machine with PLC Electrical Control 1
