K Gutter, Round Gutter Cold Roll Forming Machine With Hydraulic Cutting PLC Control

China K Gutter, Round Gutter Cold Roll Forming Machine With Hydraulic Cutting PLC Control supplier
K Gutter, Round Gutter Cold Roll Forming Machine With Hydraulic Cutting PLC Control supplier K Gutter, Round Gutter Cold Roll Forming Machine With Hydraulic Cutting PLC Control supplier K Gutter, Round Gutter Cold Roll Forming Machine With Hydraulic Cutting PLC Control supplier K Gutter, Round Gutter Cold Roll Forming Machine With Hydraulic Cutting PLC Control supplier

Large Image :  K Gutter, Round Gutter Cold Roll Forming Machine With Hydraulic Cutting PLC Control

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-GM5

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 60-70 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Material: PPGI, Aluminum Forming Stations: About 15 Stations
PLC: Panasonic Brand Drive Type: Chain Of Transmission
Cutting Tolerance: +/-1.5mm Forming Frame Structure: Weded Wall Plate Structure

K Gutter, Round Gutter Cold Roll Forming Machine With Hydraulic Cutting PLC Control

   Summary

1. Gutter cold roll forming machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.

2. Components of Gutter cold roll forming machine
Gutter cold roll forming machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.


   Main Technical Parameters of Gutter Roll Former


 Item Gutter Roll Forming Machine
 Coil Material Thickness 0.4-0.8mm
 Coil Width Custom-made
 Yield Strength 250-350Mpa
 Material PPGI, Aluminum
 Decoiler / Uncoiler Decoiler Type Manual or Hydraulic or Auto
 Coil Width Max.1250mm
 I.D 508-610mm
 O.D Max. 1500mm
 Gutter Roll Forming Machine Forming Stations About 15 stations (depend on final profile)
 Roller Material 45# high grade steel, and roller surface with hard chrome ≥ 0.05mm
 Diameter of Shaft 65mm
 Shaft Material 45# high grade steel tempering treatment (HB220-260)
 Drive Type Chain of Transmission
 Forming Speed 0-15m/min (excluding cutting time)
 Main Power 5.5KW
 Cutting Device Cutting Type Hydraulic cutting
 Cutting Die Material Cr12Mov steel, HRC58-62
 Cutting Power 3KW
 Cutting Tolerance +/-1.5mm
 Encoder OMRON Brand
 Electrical Control Box PLC PANASONIC Brand
 Inverter YASKAWA Brand
 Touch screen PANASONIC
 Operation Type Touch screen + Button
 Hydraulic Station Hydraulic Station Famous Chinese brand
 Support Table Table type Simple non-power type
 Function To support the finished panels

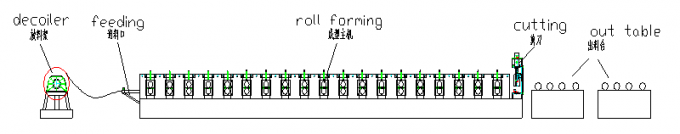

   Working Flow

Decoiler --- Pinch Feeding --- Main Roll Forming --- Hydraulic Cutting --- Support Table

K Gutter, Round Gutter Cold Roll Forming Machine With Hydraulic Cutting PLC Control


   Main Components


  • Decoiler / Uncoiler ------------------------------------------------------------1 Unit
  • Pinch Feeding -----------------------------------------------------------------1 Unit
  • Main Roll Forming ------------------------------------------------------------1 Unit
  • Hydraulic Cutting--------------------------------------------------------------1 Unit
  • Hydraulic Station--------------------------------------------------------------1 Unit
  • Electrical Control Board------------------------------------------------------1 Unit
  • Run-out Table------------------------------------------------------------------1 Unit

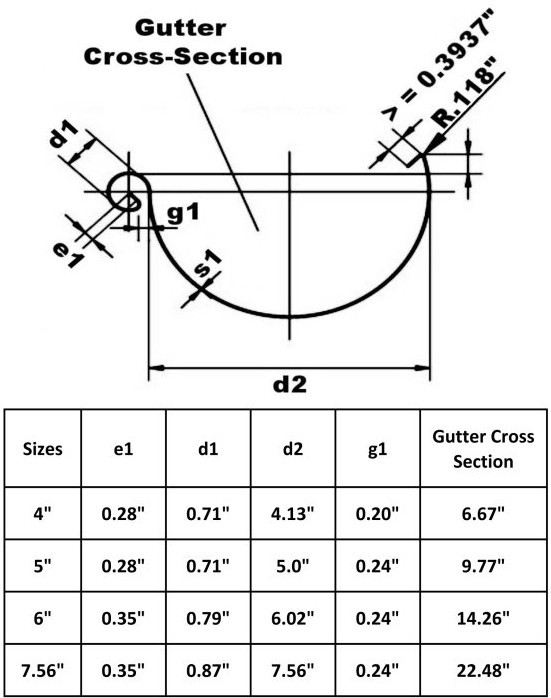

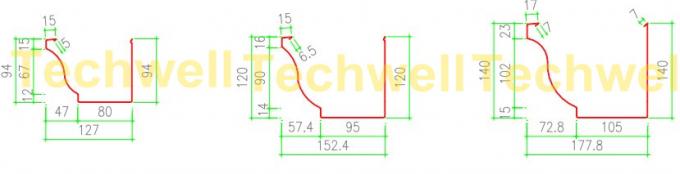

   Reference Profiles Drawing

K Gutter, Round Gutter Cold Roll Forming Machine With Hydraulic Cutting PLC Control
K Gutter, Round Gutter Cold Roll Forming Machine With Hydraulic Cutting PLC Control


   Application

Rainwater gutter, k gutter, box gutter , seamless gutter

   Competitive Advantages


  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

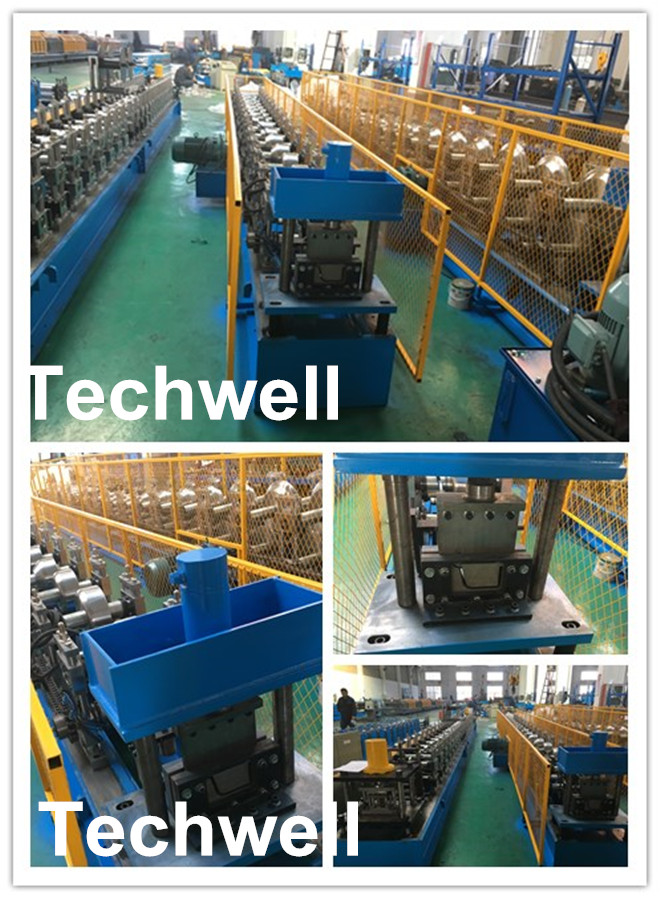

   More Machine Pictures

K Gutter, Round Gutter Cold Roll Forming Machine With Hydraulic Cutting PLC Control
