GCr15 Steel Sheet C Section Cold Roll Former With Hydraulic Cutting & Punching , PLC Control

Large Image : GCr15 Steel Sheet C Section Cold Roll Former With Hydraulic Cutting & Punching , PLC Control

Product Details:

Place of Origin:	China
Brand Name:	TECHWELL
Certification:	CE, ISO
Model Number:	TW-CZ300

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Contact Us
Packaging Details:	Standard packing
Delivery Time:	55-65 working days
Payment Terms:	40% T/T in advance, 60% T/T before shipment
Supply Ability:	20 Sets

Contact Now

Detailed Product Description

Raw Material:	Galvanized Steel Coils, Hot Rolled Coils,Cold Rolled Coils	Coil Thickness:	1.5-3.0mm
Hydraulic Power:	11KW	Cutter Material:	Cr12 Steel
Power Supplier:	380V, 3Phase, 50Hz	Forming Speed:	0-15m/min
High Light:	Z Purlin Roll Forming Machine , CZ Purlin Roll Forming Machine

GCr15 Steel Sheet C Section Cold Roll Former With Hydraulic Cutting & Punching, PLC Frequency Control System

Main Specifications

Material: GI, Carbon steel
Material thickness: 1.5-3.0mm
Decoiler: Manual or hydraulic decoiler ( customer can choose )
Weight capacity of decoiler: 5 Ton
Forming station: about 18
Principle axis: 80mm diameter
Forming speed: 0-15m/min
Drive type: gear box transmission
Roller material: GCr15 steel, quenched and heated process
Main power: 18 KW
Hydraulic power: 11KW
Punching: hydraulic punching
Electrical Control: PLC Frequency Control System with touch screen
PLC: PANASONIC Brand
Encoder: OMRON Brand
Transducer: PANASONIC Brand

Working Flow Chart

Decoiler --- Fedding & Leveling --- Roll Forming --- Punching --- Cut-to-length --- Run out table

Reference Profile Drawing

GCr15 Steel Sheet C Section Cold Roll Former With Hydraulic Cutting & Punching , PLC Control 0

Competitive Advantages

High Quality
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience
Simple to operate when assemble
Easy to handle the products
Direct manufacturer, provide with high quality and best price.

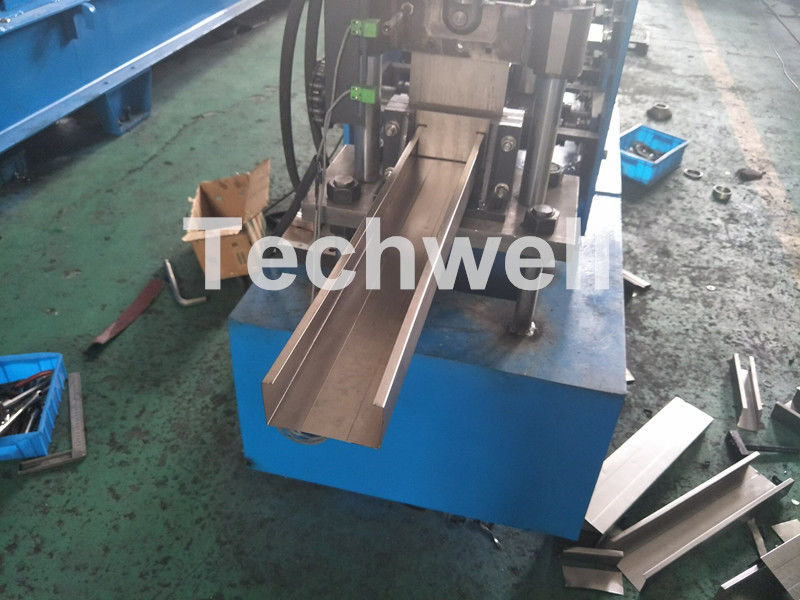

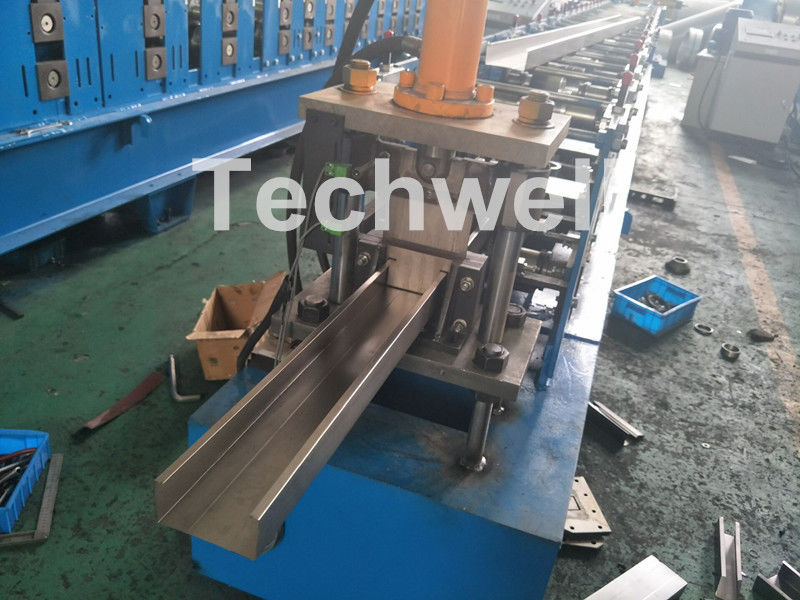

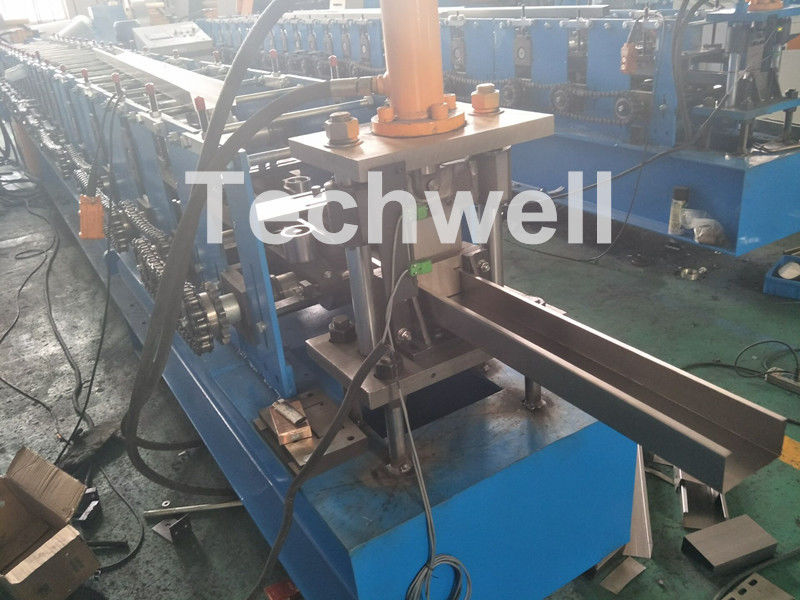

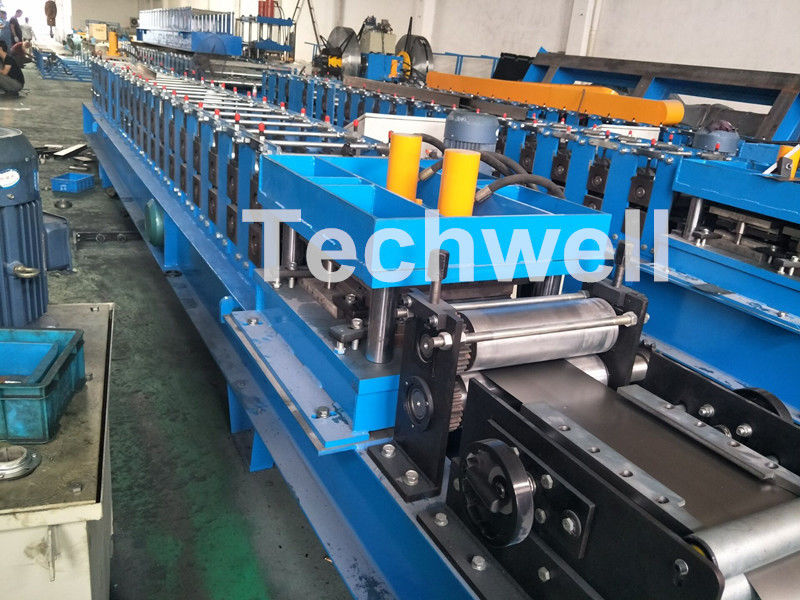

More Machine Pictures

GCr15 Steel Sheet C Section Cold Roll Former With Hydraulic Cutting & Punching , PLC Control 1
