Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: C80-350

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 70 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Material: G.i Coil Or Carbon Steel Material Thickness: 1.5-3.0mm
Length Of Purlin: >3m Feeding Stations: 2
Main Power: 20KW Machine Diameter: About 12000mm(L)x2300mm(W)x1600mm(H)


Cold / Hot Rolled Quick Interchangeable C Z Purlin Roll Former, C Z Purlin Roll Forming Machine


   Main Specifications of CZ Purlin Roll Former

  • Material: G.i Coil or Carbon steel, Hot Rolled, Cold Rolled
  • Material Thickness:1.5-3.0mm
  • Landscape orientation adjustment range of Hole distance : 45-500mm
  • Length of purlin: >3m
  • Forming Stations: about 17 Main rollers
  • Leveling Stations: 7
  • Feeding Stations: 2
  • Main Power: 20KW
  • Machine Diameter: about 12000mm(L)x2300mm(W)x1600mm(H) ( including main motor )
  • Weight of machine: about 18.5 Ton
  • One machine can produce differenct C/Z Purlins throught simple manual stepless adjustment, when to produce different profiles, no need to change the forming rollers. In the process, machine adopt automactic control model, it can auto pumch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc datas.
  • C/Z purlin roll former make up of decoiler, feeding, leveling, 2 sets hydraulic punching device, hydraulic cutting, speediness interchangeable forming machine, PLC control system, hydraulic stations, runout tables.
  • This line main forming drive adopt reducer motor and frequency conversion control, speed control…
  • It is quick and easy to operate the machine, and beautiful appearance, high production efficiency, forming speed up to 20m/min.



   Main Components

  • Decoiler --------------------------------------------------- 1 Unit
  • Feeding & Leveling ------------------------------------- 1 Unit
  • Hydraulic punching device ---------------------------- 1 Unit
  • Hydraulic cutting device ------------------------------- 1 Unit
  • Main roll forming machine ----------------------------- 1 Unit
  • Hydraulic Station ---------------------------------------- 1 Unit
  • PLC computer control --------------------------------- 1 Unit
  • Output table ---------------------------------------------- 1 Unit


Cold / Hot Rolled Quick Interchangeable C Z Purlin Roll Former, C Z Purlin Roll Forming Machine

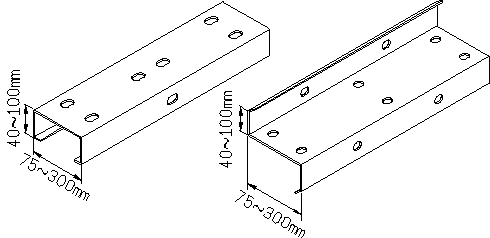

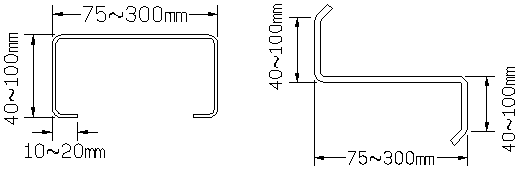

   Reference Drawing

Cold / Hot Rolled Quick Interchangeable C Z Purlin Roll Former, C Z Purlin Roll Forming Machine
Cold / Hot Rolled Quick Interchangeable C Z Purlin Roll Former, C Z Purlin Roll Forming Machine

Cold / Hot Rolled Quick Interchangeable C Z Purlin Roll Former, C Z Purlin Roll Forming Machine
Cold / Hot Rolled Quick Interchangeable C Z Purlin Roll Former, C Z Purlin Roll Forming Machine


   Our Advantage

  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience



   Video of C Z Purlin Roll Former




  Machine Picture

Cold / Hot Rolled Quick Interchangeable C Z Purlin Roll Former, C Z Purlin Roll Forming Machine
Cold / Hot Rolled Quick Interchangeable C Z Purlin Roll Former, C Z Purlin Roll Forming Machine
Cold / Hot Rolled Quick Interchangeable C Z Purlin Roll Former, C Z Purlin Roll Forming Machine



  Factory Pictures

Cold / Hot Rolled Quick Interchangeable C Z Purlin Roll Former, C Z Purlin Roll Forming Machine
Cold / Hot Rolled Quick Interchangeable C Z Purlin Roll Former, C Z Purlin Roll Forming Machine
Cold / Hot Rolled Quick Interchangeable C Z Purlin Roll Former, C Z Purlin Roll Forming Machine



Cold / Hot Rolled Quick Interchangeable C Z Purlin Roll Former, C Z Purlin Roll Forming Machine



  Certificate

Cold / Hot Rolled Quick Interchangeable C Z Purlin Roll Former, C Z Purlin Roll Forming Machine
