Automatic Control Cz Purlin Roll Forming Machine 20KW 18.5 Ton Easy Operate

China Automatic Control Cz Purlin Roll Forming Machine 20KW 18.5 Ton Easy Operate supplier
Automatic Control Cz Purlin Roll Forming Machine 20KW 18.5 Ton Easy Operate supplier Automatic Control Cz Purlin Roll Forming Machine 20KW 18.5 Ton Easy Operate supplier Automatic Control Cz Purlin Roll Forming Machine 20KW 18.5 Ton Easy Operate supplier Automatic Control Cz Purlin Roll Forming Machine 20KW 18.5 Ton Easy Operate supplier

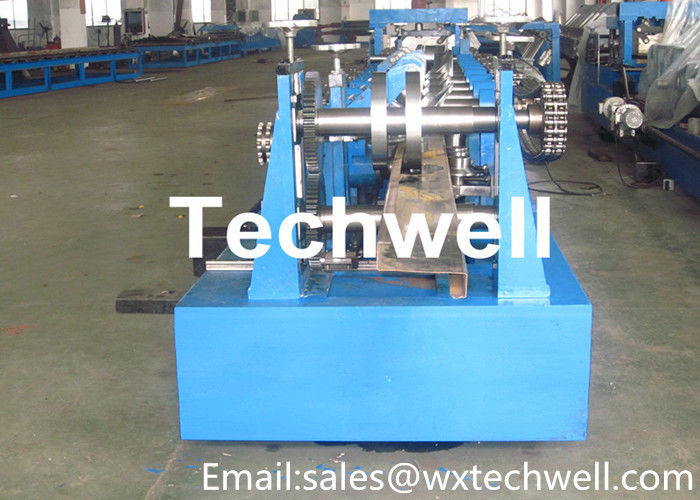

Large Image :  Automatic Control Cz Purlin Roll Forming Machine 20KW 18.5 Ton Easy Operate

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: C80-350

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard Packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Material: Carbon Steel, Hot Rolled, Cold Rolled Main Power: 20KW
Weight Of Machine: About 18.5 Ton Leveling Stations: 7
Feeding Stations: 2 Machine Diameter: About 11000mm(L)x2300mm(W)x1600mm(H) ( Including Main Motor )

Automatic Control CZ Purlin Forming Machine With PLC Control System C80-350





   Main Specification



Material thickness 1.5-3.0mm
Weight of Machine About 18.5 Ton
Main Power 20KW
Forming Stations About 17 Main Rollers
Machine Diameter

about 11000mm(L)x2300mm(W)x1600mm(H) ( including main motor )

Working Speed 20 m/min
Length of Purlin >3m
Leveling Stations 7
Feeding Stations 2



  • One machine can produce differenct C/Z Purlins throught simple manual stepless adjustment, when to produce different profiles, no need to change the forming rollers. In the process, machine adopt automactic control model, it can auto pumch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc datas.
  • C/Z purlin roll former make up of decoiler, feeding, leveling, 2 sets hydraulic punching device, hydraulic cutting, speediness interchangeable forming machine, PLC control system, hydraulic stations, runout tables.
  • This line main forming drive adopt reducer motor and frequency conversion control, speed control…
  • It is quick and easy to operate the machine, and beautiful appearance, high production efficiency, forming speed up to 20m/min.



   Components



Decoiler / Uncoiler 1 Unit
Feeding Guide & Leveling Device 1 Unit
Hydraulic Punching 1 Unit
Hydraulic Pre-cutting 1 Unit
Roll Forming Machine 1 Unit
Rectify Device 1 Unit
Hydraulic Station 1Unit
PLC Computer Control Box 1 Unit
Support Tables 1Unit



   Application



   Steel cz purlins, c/z purlins, steel structuere cz purlin, metal cz purlins



   Advantages



  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience



   Reference Drawing



Automatic Control Cz Purlin Roll Forming Machine 20KW 18.5 Ton Easy Operate





   Machine Pictures



Automatic Control Cz Purlin Roll Forming Machine 20KW 18.5 Ton Easy Operate
