Roof Wall Panel Cold Roll Forming Machine / Roof Wall Cladding Roll Forming Machine With PLC Control System

 1. Roofing sheet roll forming machines are extensively used in building steel-structure large-scale warehouses, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, hotels, villas, residences and different kinds of greenhouses.

 2. The Roof Wall Panel Sheet Roll Forming Machine is with fully automatic control system with PLC.

 3. Length, quantity of sheets is adjustable.

 4. Rollforming process: Decoiler, Rollforming, Cut to length.

 5. We also can do a custom roll forming machine, we can design machines according to your specifications and profile drawings, all our machines are customized.

1). 5 Ton Manual Decoiler

1. Decoiler Type: Manual type decoiler

2. Weight Capacity of Decoiler: 5Ton

3. Manual expanding

4. Passive uncoiling

5. I.D: 508mm

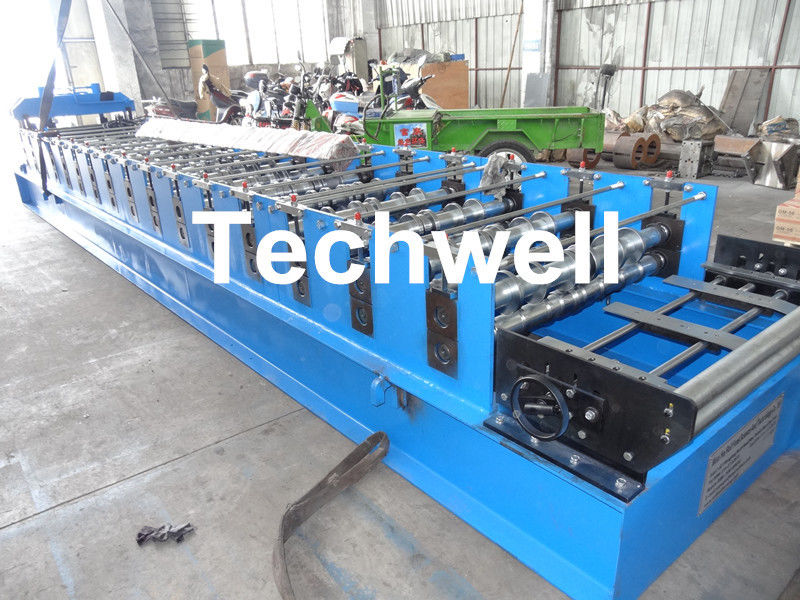

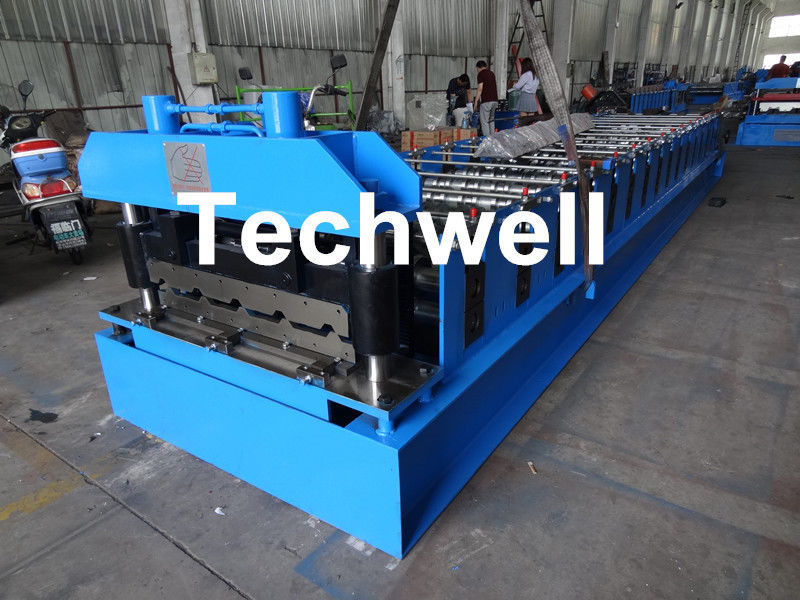

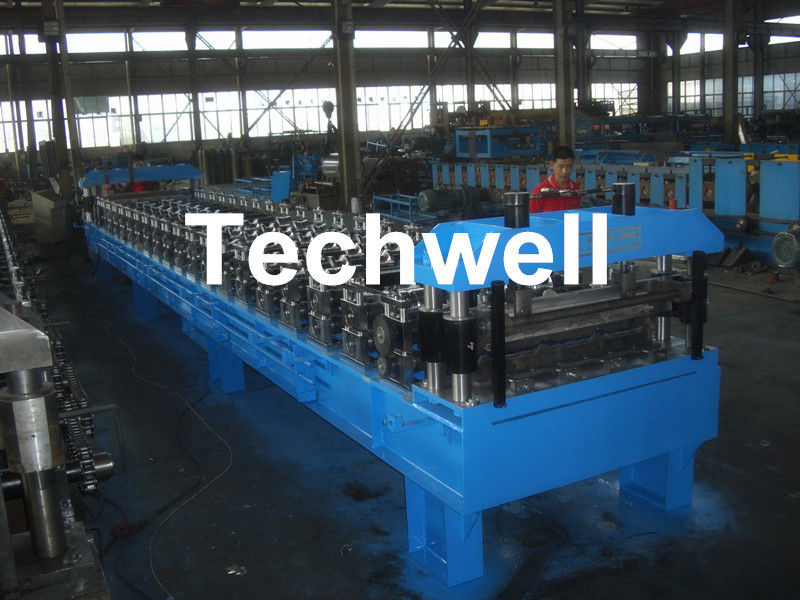

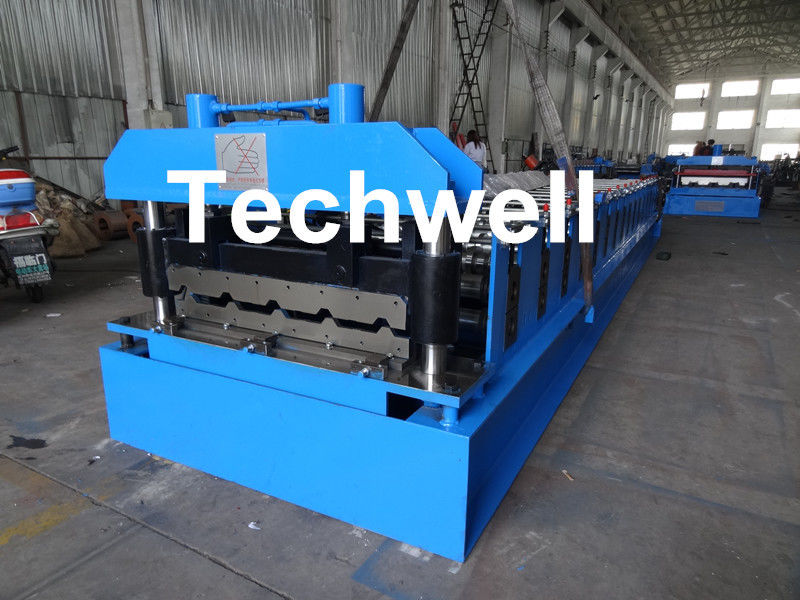

2). Main Roll Forming Part

1. Forming material thickness: 0.3-0.7mm

2. Forming material type: PPGI, GI

3. Machine frame: high grade steel welded and tempering treatment

4. Forming structure: Welded wall plate strcuture

5. Forming motor: 7.5KW

6. Shaft material: 45# high grade steel tempering treatment (HB220-260)

7. Shaft diameter: 75mm

8. Roller material: 45# high grade steel, and roller surface with hard chrome ≥ 0.05mm

9. Forming speed: about 0-15m/min (excluding cutting time)

10. Forming station: ≈ 18 stations

3). Hydraulic Cutting & Hydraulic Station

1. Cutting type: Hydraulic cutting after roll forming, Burr-free cutting

2. When cutting, Machine stop

3. Cutting blade: 1 SET

4. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62

5. Hydraulic station power: 4KW

6. Hydraulic pressure: 15Mpa

7. Cutting Tolerance: +/-1.5mm

4). Electrical Control System

1. The entire line is controlled by imported PLC, LCD touch screen human-machine interface. People interact with the PLC. Operator by setting the program to run automatically (programmable control) to monitor and control process, to achieve the operator to control the production line and modify the control parameters, and real-time monitoring of equipment status, operating parameters and fault indication. Work piece length digital setting, work piece length adjustable. Real-time monitoring of equipment operating status and fault indication.

2. Operation: manual / automatic. It is convenient to maintenance with the manual model and there are emergency stop bottom on it.

5). Run out Table

1. Roller type support table

2. to support the profile sheet after cutting
