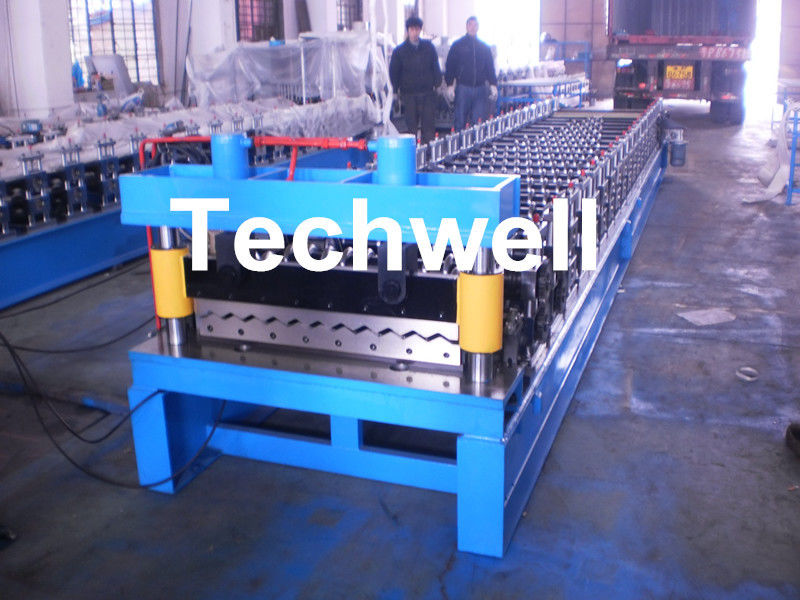

Corrugated Profile Roll Forming Machine, Corrugated Sheet Making Machine With PLC Control System
Product Description
|
1. The corrugated sheet roll forming machine is designed to manufacture high quality corrugated sheet, and the finished product has smooth and exquisite appearance. The corrugated sheet is widely used to build up roofs of industrial and civilian buildings, such as workshop, warehouse, hangar, gymnasium, theatre, engine house, exhibition hall, etc. In addition, this machine can be particularly designed when relevant drawings are provided. |
|
2. The Corrugated Panel Sheet Roll Forming Machine is with fully automatic control system with PLC. |
|
3. Length, quantity of sheets is adjustable |
|
4. We also can do a custom roll forming machine, we can design machines according to your specifications and profile drawings, all our machines are customized. |
Main Technical Parameters
| No. | Item | Parameter | Remark | |
| 1 | Suitable Material | Type | PPGI | |
| Width | 1250mm | |||
| Thickness | 0.3-1.0mm | |||
| Yield Strength | 345Mpa | |||
| 2 | Forming Station | 13-20 Stations | Depend on Profile Drawing | |
| 3 | Forming Speed | ≈ 0-20m/min Excluding Cutting | ||
| 4 | Roller Material | High grade 45# steel | With Hard Chrome | |
| 5 | Drive Type | Chain Drive | ||
| 6 | Shaft Diameter | Φ75mm | Solid Shaft | |
| 7 | Bearing | Hab Bearing | ||
| 8 | Cutting Model | Hydraulic Cutting | Stop to cutting | |
| 9 | Power Source | Type | 380V/3PH/50HZ | Customized |
| Main Power | ≈ 7.5KW | Depend on profile | ||
| Hydraulic Power | ≈ 3.0KW | Cutting power | ||
| 10 | Electric Control System | PLC -PANASONIC |
Operation: Screen + Button |
|
| Inverter -YASKAWA | ||||
| Touch Screen- MCGS | ||||
| Encoder- OMRON | ||||
Main Components
Working Flowing
Decoiler --- Fedding Guide --- Roll Forming --- Cut-to-length --- Run out table
