Galvanized / Carbon Steel CZ Shaped Roll Forming Machine For 0-15m/min Forming Speed

Galvanized / Carbon Steel CZ Shaped Roll Forming Machine For 0-15m/min Forming Speed

Z Purlin Roll Forming Machine

CZ Purlin Roll Forming Machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE, ISO

Model Number:

TW-CZ300

Contact Us

Request A Quote
Product Details
Raw Material:
Galvanized Steel Sheet
Weight Capacity Of Decoiler:
5 Ton
Punching Type:
Hydraulic Pre-punching
Forming Speed:
0-15m/min
Electrical Control:
PLC Frequency Control
Shaft Diameter:
80mm
Product Description

Galvanized / Carbon Steel CZ Shaped Cold Roll Forming Machine For 0-15m/min Forming Speed





   Summary of CZ Shaped Machine





 1. One machine can produce different C/Z Purlins through automatic, simple manual stepless adjustment, when to produce different profiles, no need to change the forming rollers. In the process, machine adopt automatic control model, it can auto punch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc data.



 2. C/Z purlin roll former make up of decoiler, feeding, leveling, 2 sets hydraulic punching device, hydraulic cutting, speediness interchangeable forming machine, PLC control system, hydraulic stations, run-out tables.



 3. The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.





   Main Technical Specifications



1. Coil material thickness: 1.5-3.0mm

2. Material: mild steel, GI

3. Weight capacity of decoiler: Max. 5 Ton

4. Coil width: Max. 1500mm

5. 2 rollers pinch feeding

6. 7 rollers leveling (Upper 3 roller, lower 4 rollers)

7. Leveling roller diameter: about Φ90mm

8. Motor power: about 4KW

9. Punching type: Hydraulic pre-punching type

10. Punching mould size: According to drawing

11. Hydraulic power: 11KW

12. Cutting type: Hydraulic pre-cutting

13. CuttingTolerance: +/-1.5mm

14. Encoder: OMRON Brand

15. Forming Stations: 16 Stations ( Depend on Profiles )

16. Roller material: GCr15 high grade steel ( HRC58-62 ), and roller surface with hard chrome ≥ 0.05mm

17. Diameter of shaft: Φ80mm

18. Shaft material: High grade 45# steel

19. Drive type: Chain transmission

20. Forming speed: 0-15m/min

21. Main power: 15KW

22. PLC: PANASONIC Brand or Custom-made





   Main Components



Decoiler 1 Unit
Pinch Feeding 1 Unit
7 Rollers Leveling 1 Unit
Hydraulic Pre-punching 1 Unit
Hydraulic cutting device 1 Unit
Main roll forming machine 1 Unit
Hydraulic Station 1 Unit
PLC computer control 1 Unit
Output table 1 Unit

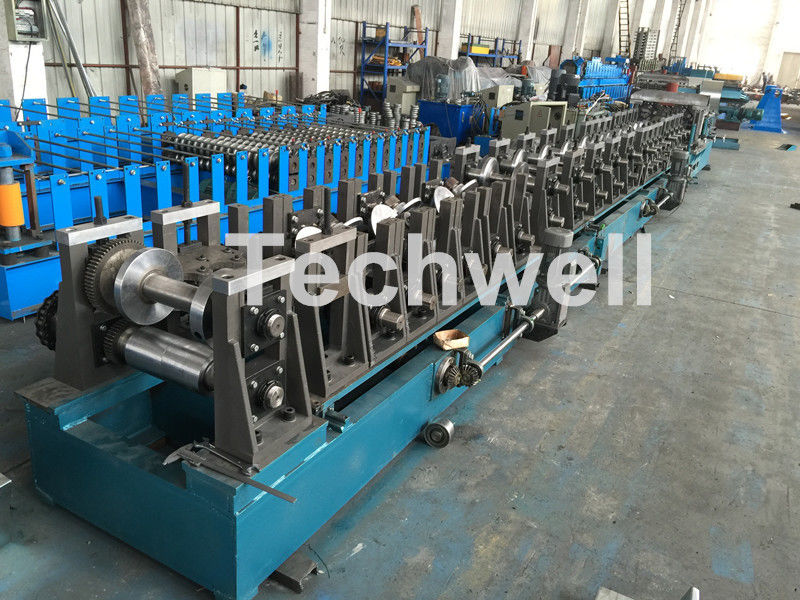

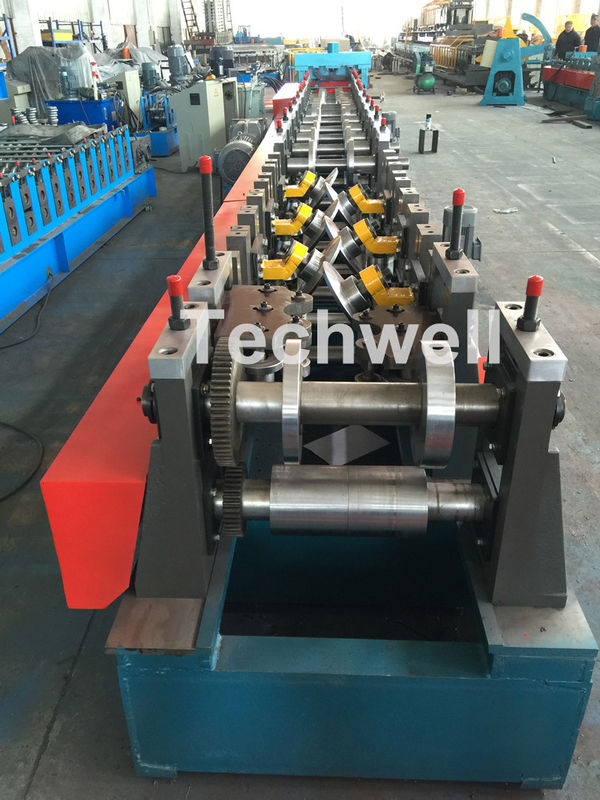

   Pictures Show Quick Interchangeable CZ Purlin Roll Former



Galvanized / Carbon Steel CZ Shaped Roll Forming Machine For 0-15m/min Forming Speed 0





   Reference Profile Drawing



Galvanized / Carbon Steel CZ Shaped Roll Forming Machine For 0-15m/min Forming Speed 1





   Competitive Advantages





  1. High Quality
  2. Good after Service
  3. 1 Year Warranty
  4. More Than 10 Years Experience
  5. Simple to operate when assemble
  6. Easy to handle the products
  7. Direct manufacturer, provide with high quality and best price.

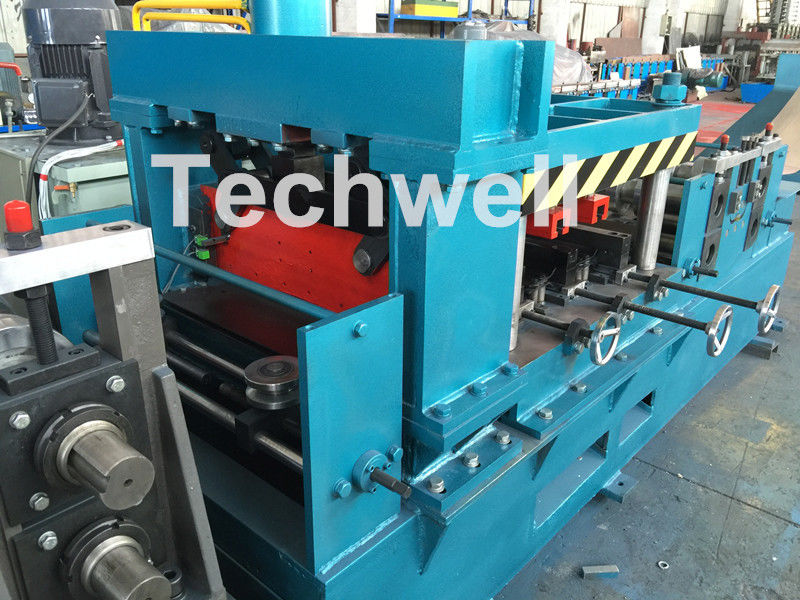

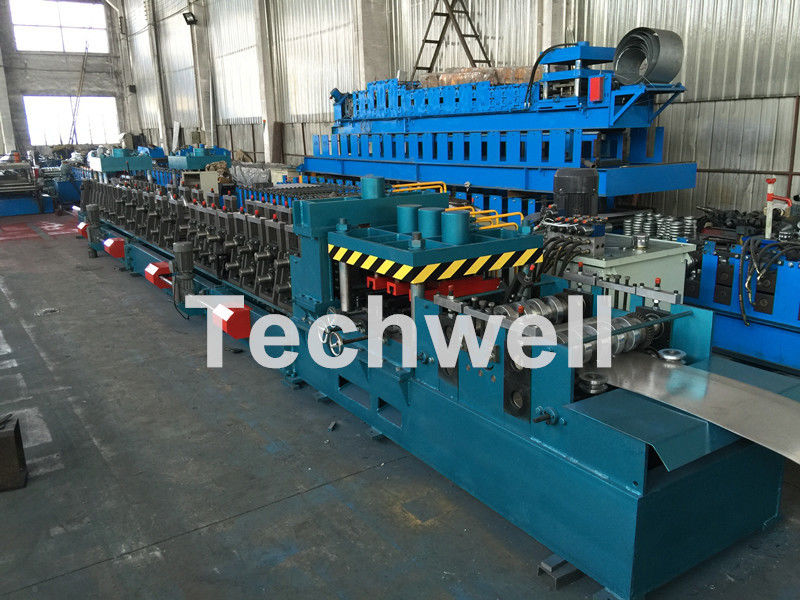

   More Machine Pictures
