Carbon Steel CZ Channel Roll Forming Machine For Thickness 1.5-3.0mm With PLC Touch Screen Control

China Carbon Steel CZ Channel Roll Forming Machine For Thickness 1.5-3.0mm With PLC Touch Screen Control supplier
Carbon Steel CZ Channel Roll Forming Machine For Thickness 1.5-3.0mm With PLC Touch Screen Control supplier Carbon Steel CZ Channel Roll Forming Machine For Thickness 1.5-3.0mm With PLC Touch Screen Control supplier Carbon Steel CZ Channel Roll Forming Machine For Thickness 1.5-3.0mm With PLC Touch Screen Control supplier Carbon Steel CZ Channel Roll Forming Machine For Thickness 1.5-3.0mm With PLC Touch Screen Control supplier

Large Image :  Carbon Steel CZ Channel Roll Forming Machine For Thickness 1.5-3.0mm With PLC Touch Screen Control

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TECHWELL

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Material Thickness: 1.5-3.0mm Feeding Type: 2 Rollers Pinch Feeding
Hydraulic Power: 11KW Shaft Material: High Grade 45# Steel
Forming Speed: 0-15m/min Main Power: 18KW

Carbon Steel CZ Section Cold Roll Forming Machine For Thickness 1.5-3.0mm With PLC Touch Screen Control





   CZ Profile Drawing / Finished Sample Pieces

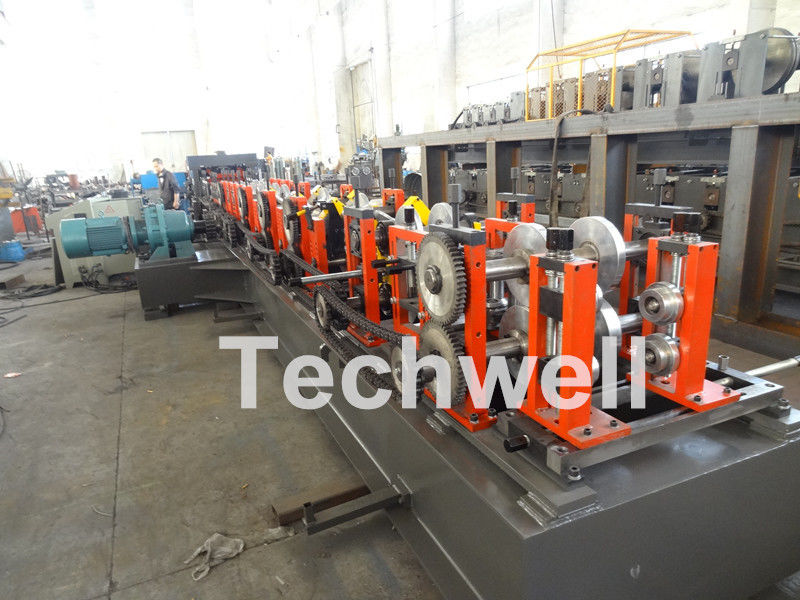

Carbon Steel CZ Channel Roll Forming Machine For Thickness 1.5-3.0mm With PLC Touch Screen Control

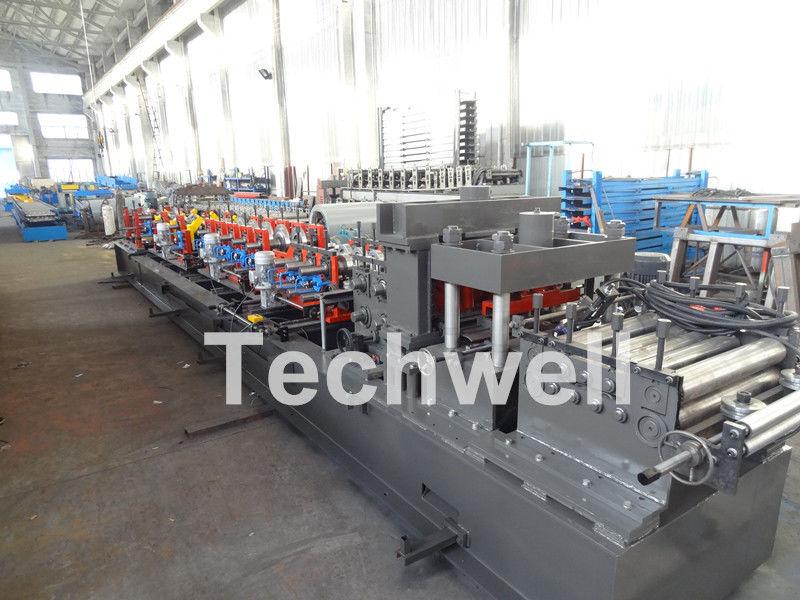

Carbon Steel CZ Channel Roll Forming Machine For Thickness 1.5-3.0mm With PLC Touch Screen Control





   Main Technical Specifications





 1). 5 Ton Manual Uncoiler

  1. Machine frame: welding structure with shot lastingtreatment

  2. Components: Base, brake device, inner hole support, Expanding / tighten device

  3. Weight capacity: 5 Ton

  4. I.D: 500mm

  5. Max. coil width: 500mm

  6. O.D: Max. 1500mm



 2). Pinch Feeding & Leveling Device

  1. 2 Rollers pinch feeding, 7 rollers leveling (Upper 3 rollers, lower 4 rollers)
  2. leveling roller diameter: about Φ 90mm
  3. Leveling roller material: high grade 40Cr
  4. Heat treatment of leveling roller: surface Hi-frequency quench treatment
  5. Leveling motor power: 4KW



 3). Hydraulic Pre-punching & Pre-Cutting & Hydraulic Station

  1. Punching Die: Cr12 Mov, quenching process
  2. Punching Die size: according to drawing
  3. Cutting Tolerance: +/-1.5mm
  4. Encoder: OMRON
  5. Hydraulic Power: 11KW



 4). Main Roll Forming Part

  1. Forming material thickness: 1.5-3.0mm
  2. Forming material type: GI or Carbon Steel
  3. Machine Frame: high grade steel welded and tempering treatment
  4. Shaft Material: high grade 45# steel
  5. Shaft Diameter: Φ 90mm
  6. Bearing: HRB bearing ( Top Chinese brand )
  7. Roller Material: high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm
  8. Forming Station: ≈ 16 stations
  9. Forming Speed: 0-15m/min excluding punching / cutting time
  10. Forming Motor: 18KW
  11. Drive type: Chain Drive
  12. Forming Speed: 0-15m/min



 5). PLC Control System

  1. The entire line is controlled by imported PLC, LCD touch screen human-machine interface. People interact with the PLC. Operator by setting the program to run automatically (programmable control) to monitor and control process, to achieve the operator to control the production line and modify the control parameters, and real-time monitoring of equipment status, operating parameters and fault indication. Work piece length digital setting, work piece length adjustable. Real-time monitoring of equipment operating status and fault indication.
  2. Operation: manual / automatic. It is convenient to maintenance with the manual model and there are emergency stop bottom on it.



 6). Run-out Table

  1. Form: Steel welding structure, no-power exit rack
  2. Quantity:1 pieces





   Main Components



Decoiler 1 Unit
Pinch Feeding 1 Unit
7 Rollers Leveling 1 Unit
Hydraulic Pre-punching 1 Unit
Hydraulic cutting device 1 Unit
Main roll forming machine 1 Unit
Hydraulic Station 1 Unit
PLC computer control 1 Unit
Output table 1 Unit

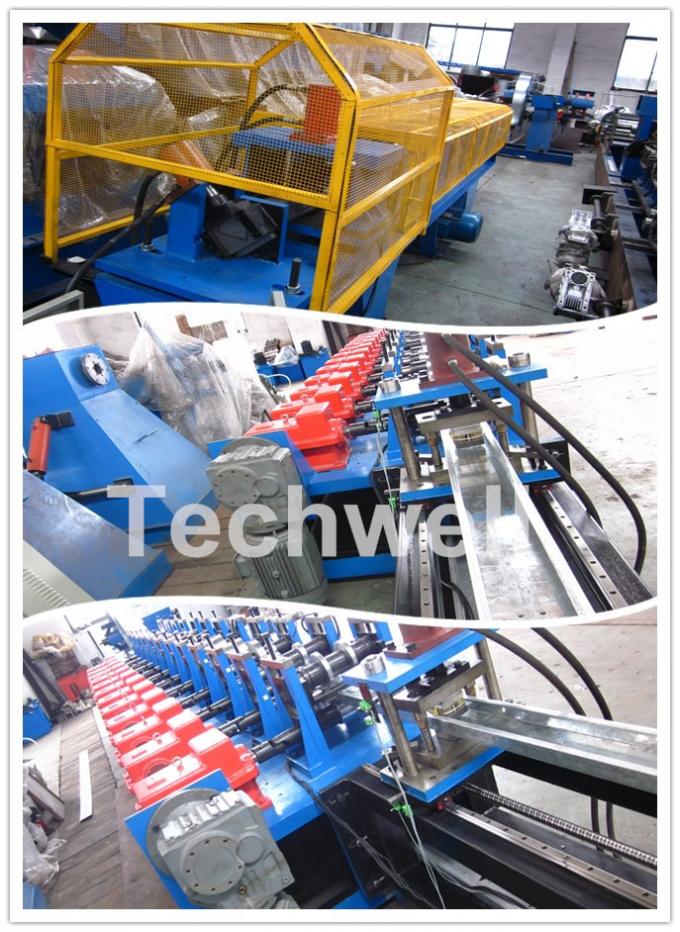

   More Machine Pictures

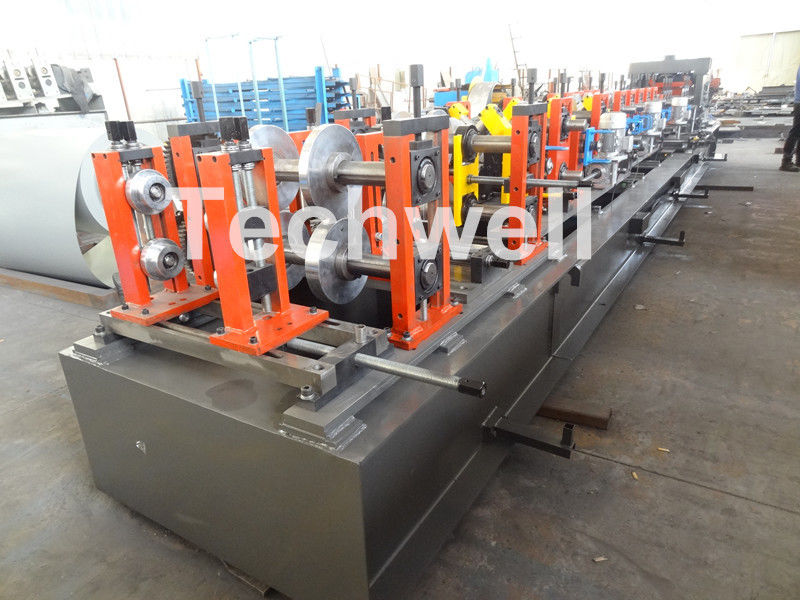

Carbon Steel CZ Channel Roll Forming Machine For Thickness 1.5-3.0mm With PLC Touch Screen Control





   Contacts of WUXI TECHWELL



Company

Wuxi Techwell Machinery Co., Ltd

Wuxi Techwell Industrial Co., Ltd

Website www.cold-rollformingmachine.com
www.roofrollformingmachine.com
www.wxtechwell.com
Mobile / Whatsapp / Wechat 0086-15861597732 ( Lemon Lee )
E-Mail / Skype sales@wxtechwell.com

Contact Details
Wuxi Techwell Machinery Co., Ltd

Contact Person: monica

Send your inquiry directly to us (0 / 3000)
