CZ Shaped Purlin Roll Forming Machine With 17 Forming Station TW-CZ300

China CZ Shaped Purlin Roll Forming Machine With 17 Forming Station TW-CZ300 supplier
CZ Shaped Purlin Roll Forming Machine With 17 Forming Station TW-CZ300 supplier CZ Shaped Purlin Roll Forming Machine With 17 Forming Station TW-CZ300 supplier CZ Shaped Purlin Roll Forming Machine With 17 Forming Station TW-CZ300 supplier CZ Shaped Purlin Roll Forming Machine With 17 Forming Station TW-CZ300 supplier

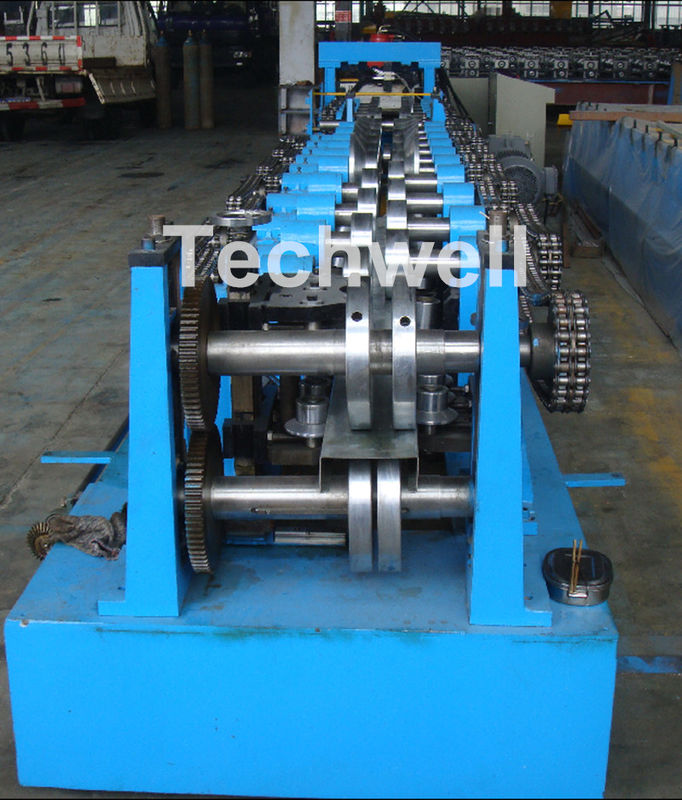

Large Image :  CZ Shaped Purlin Roll Forming Machine With 17 Forming Station TW-CZ300

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-CZ300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Raw Material: Galvanized Steel Sheet Shaft Diameter: 90mm
Axis Material: First Grade 45# Steel Electrical Control: PLC Frequency Control
Forming Speed: 0-15m/min Weight Capacity Of Decoiler: Max. 5 Ton

Purlin Cold Roll Forming Machine For making CZ Shaped Purlin With 17 Forming Station TW-CZ300





   Main Specifications



Coil Material Thickness 1.5-3.0mm
Material Mild steel. GI
Decoiler / Uncoiler Coil Width Max. 1500mm
I.D 400-530mm
O.D Max. 1500mm
Weight capacity of decoiler 5Ton Max.
Pinch Feeding & Leveling Device 2 Rollers pinch feeding
7 Rollers leveling Upper 3 roller, lower 4 rollers
Leveling roller diameter about Φ90mm
Motor power about 4KW
Hydraulic Punching Device Punching type Hydraulic pre-punching type
Punching mould size According to drawing
Hydraulic power 11KW
Cutting Cutting type Hydraulic pre-cutting
CuttingTolerance +/-1.5mm
Encoder OMRON Brand
Main Roll Forming Part Forming Stations 16 Stations ( Depend on Profiles )
Roller material GCr15 high grade steel ( HRC58-62 ), and roller surface with hard chrome ≥ 0.05mm
Diameter of shaft Φ90mm
Shaft material High grade 45# steel
Drive type Chain transmission
Forming speed 0-15m/min
Main power 18KW
Electrical control PLC PANASONIC Brand or Custom-made
Inverter YASKAWA Brand or Custom-made
Touch screen PANASONICE or Custom-made
Operation type Touch screen & Button





   Summary of CZ Purlin Roll Former



  1. One machine can produce different C/Z Purlins through automatic, simple manual stepless adjustment, when to produce different profiles, no need to change the forming rollers. In the process, machine adopt automatic control model, it can auto punch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc data.
  2. C/Z purlin roll former make up of decoiler, feeding, leveling, 2 sets hydraulic punching device, hydraulic cutting, speediness interchangeable forming machine, PLC control system, hydraulic stations, run-out tables.
  3. Forming Speed: 0-15m/min



   Working Flow Chart



CZ Shaped Purlin Roll Forming Machine With 17 Forming Station TW-CZ300





   Main Components



  • Decoiler ---------------------------------------------------------- 1 Unit
  • Pinch Feeding -------------------------------------------------- 1 Unit
  • 7 Rollers Leveling ---------------------------------------------- 1 Unit
  • Hydraulic Pre-punching --------------------------------------- 1 Unit
  • Hydraulic cutting device -------------------------------------- 1 Unit
  • Main roll forming machine ----------------------------------- 1 Unit
  • Hydraulic Station ----------------------------------------------- 1 Unit
  • PLC computer control ----------------------------------------- 1 Unit
  • Output table ------------------------------------------------------ 1 Unit



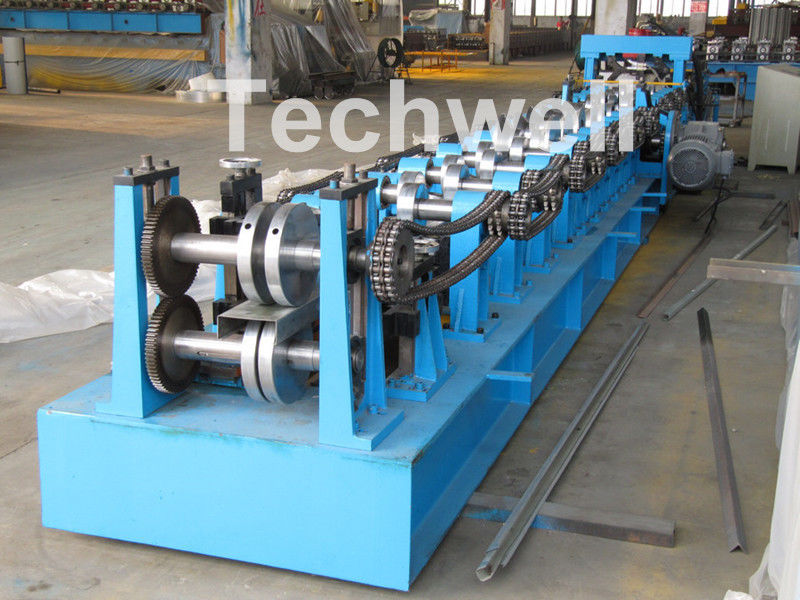

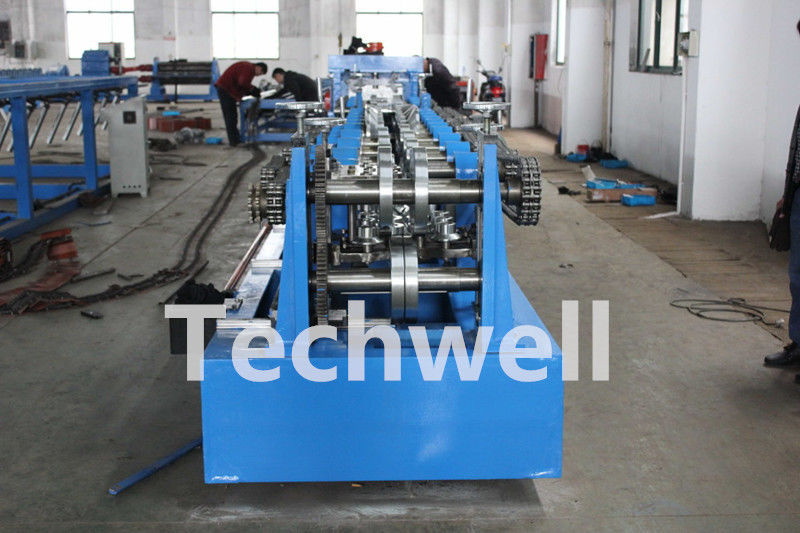

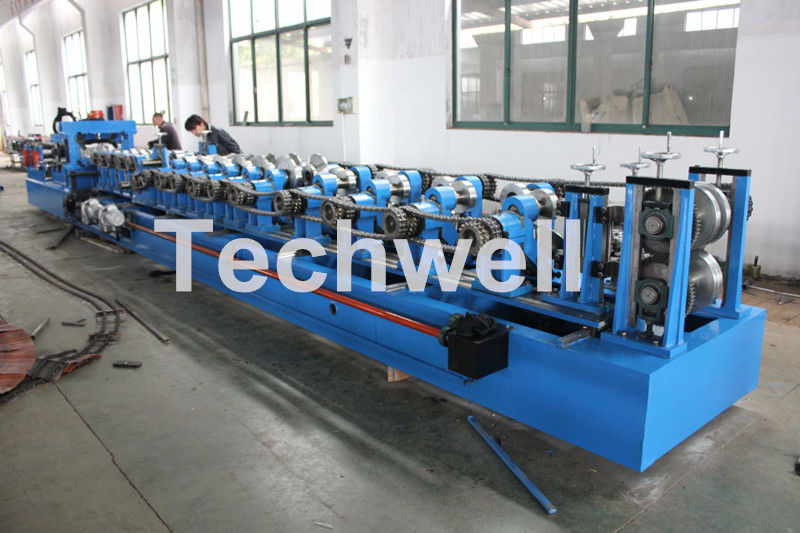

   Reference Workshop Machine Pictures
