1.5-3.0mm Forming Thickness , Quick Interchangeable CZ Purlin Roll Forming Machine With 7 Rollers Leveling Device

1.5-3.0mm Forming Thickness , Quick Interchangeable CZ Purlin Roll Forming Machine With 7 Rollers Leveling Device

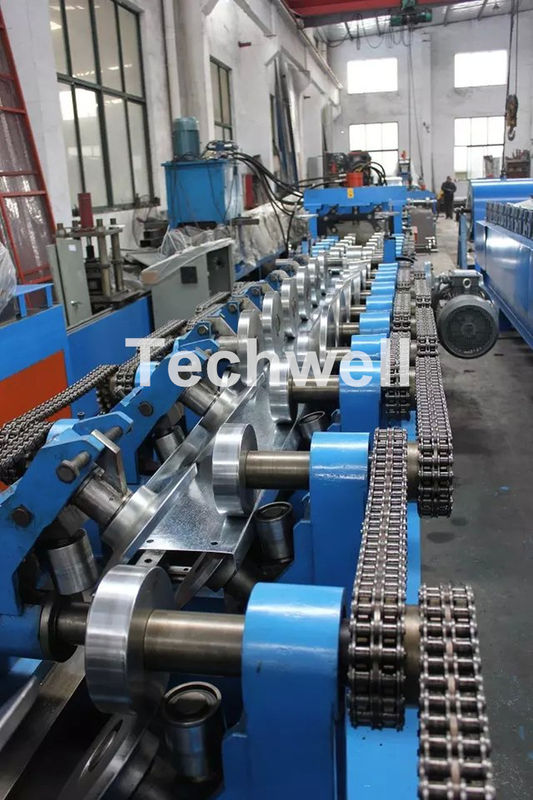

Z Purlin Roll Forming Machine

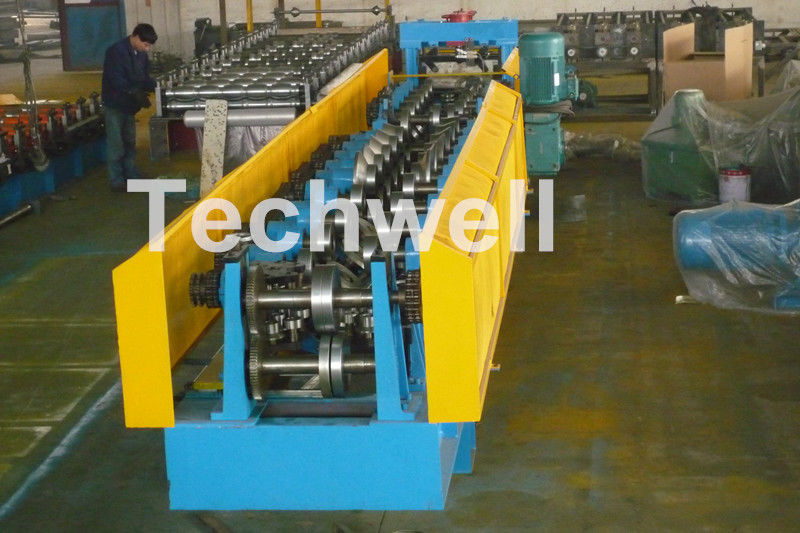

CZ Purlin Roll Forming Machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE, ISO

Model Number:

TW-CZ300

Contact Us

Request A Quote
Product Details
Decoiler:
Manual Or Hydraulic Decoiler ( Customer Can Choose )
Drive Type:
1.5' Chain Transmission
Electrical Control:
PLC Frequency Control System With Touch Screen
PLC:
PANASONIC Brand
Encoder:
OMRON Brand
Principle Axis:
80mm
Product Description

1.5-3.0mm Forming Thickness, Quick Interchangeable CZ Purlin Roll Forming Machine With 7 Rollers Leveling Device





   Main Technical Specifications



1. Coil material thickness: 1.5-3.0mm

2. Material: mild steel, GI

3. Weight capacity of decoiler: Max. 5 Ton

4. Coil width: Max. 1500mm

5. 2 rollers pinch feeding

6. 7 rollers leveling (Upper 3 roller, lower 4 rollers)

7. Leveling roller diameter: about Φ90mm

8. Motor power: about 4KW

9. Punching type: Hydraulic pre-punching type

10. Punching mould size: According to drawing

11. Hydraulic power: 11KW

12. Cutting type: Hydraulic pre-cutting

13. CuttingTolerance: +/-1.5mm

14. Encoder: OMRON Brand

15. Forming Stations: 16 Stations ( Depend on Profiles )

16. Roller material: GCr15 high grade steel ( HRC58-62 ), and roller surface with hard chrome ≥ 0.05mm

17. Diameter of shaft: Φ80mm

18. Shaft material: High grade 45# steel

19. Drive type: Chain transmission

20. Forming speed: 0-15m/min

21. Main power: 15KW

22. PLC: PANASONIC Brand or Custom-made





   Working Flow Chart



Decoiler → Feeding Guide → Leveling → Hydraulic Punching → Hydraulic Cutting → Main Roll Forming



Support Table



1.5-3.0mm Forming Thickness , Quick Interchangeable CZ Purlin Roll Forming Machine With 7 Rollers Leveling Device 0





   Reference Profile Drawing



1.5-3.0mm Forming Thickness , Quick Interchangeable CZ Purlin Roll Forming Machine With 7 Rollers Leveling Device 1





   Competitive Advantages



  1. High Quality
  2. Good after Service
  3. 1 Year Warranty
  4. More Than 10 Years Experience
  5. Simple to operate when assemble
  6. Easy to handle the products
  7. Direct manufacturer, provide with high quality and best price.

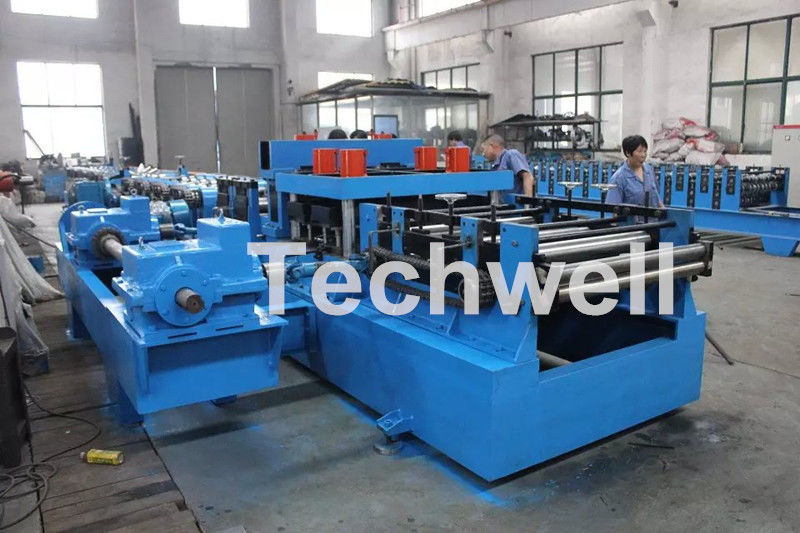

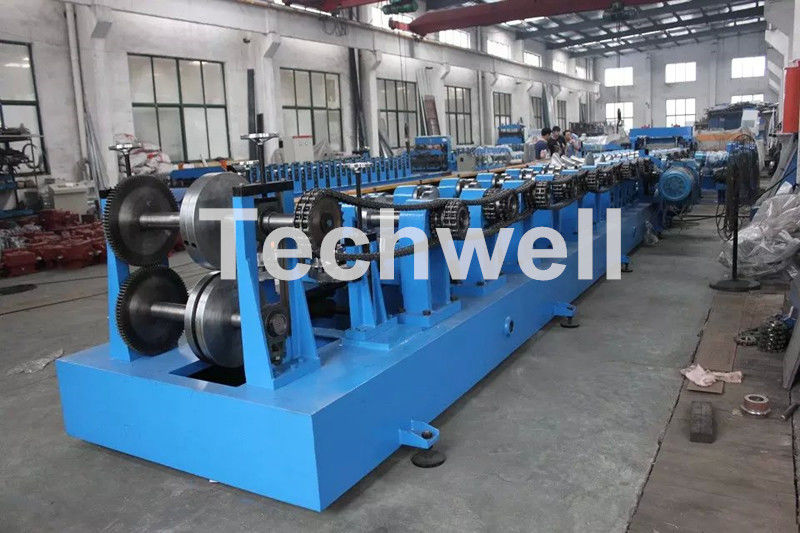

   More Reference Machine Pictures
