C Purlin Cold Roll Forming Machine With 18 Main Roller Stations For Thickness 1.5-3.0mm TW-C300

China C Purlin Cold Roll Forming Machine With 18 Main Roller Stations For Thickness 1.5-3.0mm TW-C300 supplier
C Purlin Cold Roll Forming Machine With 18 Main Roller Stations For Thickness 1.5-3.0mm TW-C300 supplier C Purlin Cold Roll Forming Machine With 18 Main Roller Stations For Thickness 1.5-3.0mm TW-C300 supplier C Purlin Cold Roll Forming Machine With 18 Main Roller Stations For Thickness 1.5-3.0mm TW-C300 supplier C Purlin Cold Roll Forming Machine With 18 Main Roller Stations For Thickness 1.5-3.0mm TW-C300 supplier

Large Image :  C Purlin Cold Roll Forming Machine With 18 Main Roller Stations For Thickness 1.5-3.0mm TW-C300

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-C300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Working Speed: 0-15m/min Forming Stations: About 18 Stations
Roller Material: GCr15 Steel, With Hard Chrome Diameter Of Shaft: Φ80mm
Drive Type: Chain Transmission Main Power: 15KW

C Purlin Cold Roll Forming Machine With 18 Main Roller Stations For Thickness 1.5-3.0mm TW-C300





   Main Technical Specifications



NO. Item Parameter Qty
1.

Coil material thickness

Material

1.5-3.0mm
Galvanized Coils, Cold Rolled Coils

2.

Decoiler (coil width)

I.D

O.D

Weight capacity of decoiler

Max. 1500mm
400-530mm
Max. 1500mm
Max. 5 Ton
1Unit
3. Pinch Feeding & Leveling Device

2 rollers pinch feeding

7 roller leveling (upper 3 rollers, lower 4 rollers)

leveling roller diameter: about Φ90mm

motor power: about 4KW

1 Unit
4. Hydraulic Punching Device

Punching type: Hydraulic pre-punching type

punching mould size: according to drawing

hydraulic power: 11KW

1 Unit
5. Main Roll Forming Part

Forming stations: 18 Stations ( Depend on Profiles )

roller material: GCr15 high grade steel ( HRC58-62 ), and roller surface with hard chrome ≥ 0.05mm

Diameter of shaft: Φ80mm

Shaft material: High grade 45# steel

Drive type: Chain transmission

Forming speed: 0-15m/min

Main power: 15KW

1 Unit
6. Cutting

Cutting type: hydraulic cutting

When cutting, machine stop

cutting tolerance: +/-1.5mm

encoder: OMRON brand

1 Unit
7. Electrical Control

PLC: PANASONIC Brand or Custom-made

Inverter: YASKAWA Brand or Custom-made

Touch screen: PANASONICE or Custom-made

Operation type: Touch screen & Button

1 Unit





   Working Flow Chart



Decoiler → Feeding Guide → Leveling → Hydraulic Punching →  Main Roll Forming → Hydraulic Cutting →



Support Table



C Purlin Cold Roll Forming Machine With 18 Main Roller Stations For Thickness 1.5-3.0mm TW-C300





   Reference Profile Drawing



C Purlin Cold Roll Forming Machine With 18 Main Roller Stations For Thickness 1.5-3.0mm TW-C300





   Competitive Advantages



  1. High Quality
  2. Good after Service
  3. 1 Year Warranty
  4. More Than 10 Years Experience
  5. Simple to operate when assemble
  6. Easy to handle the products
  7. Direct manufacturer, provide with high quality and best price.

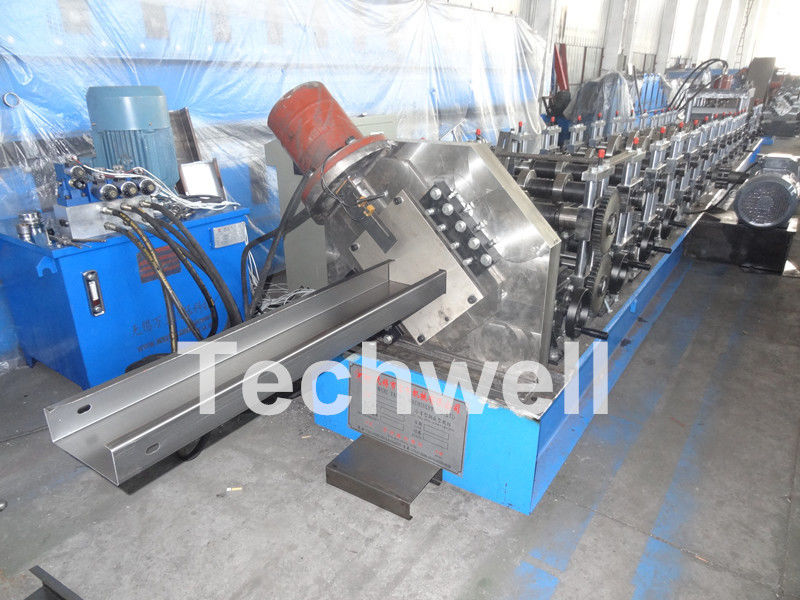

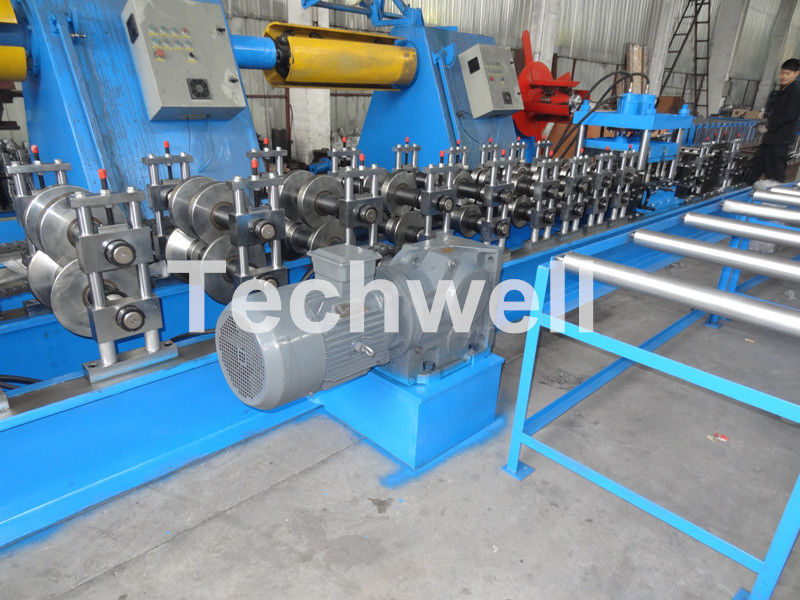

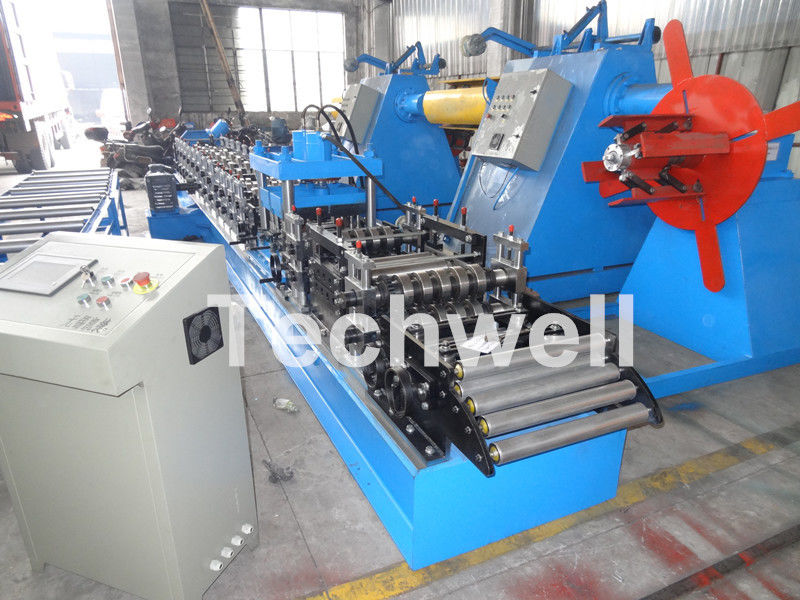

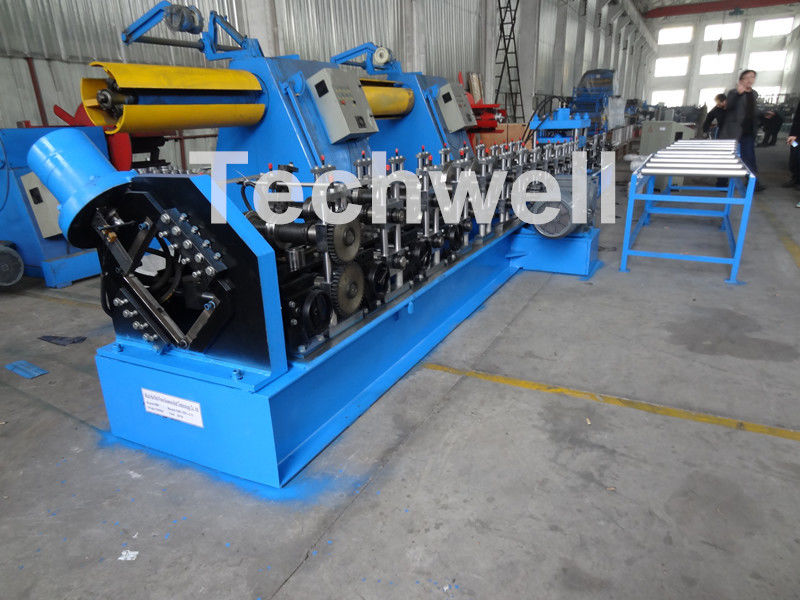

   More Machine Pictures



C Purlin Cold Roll Forming Machine With 18 Main Roller Stations For Thickness 1.5-3.0mm TW-C300
