C Section Cold Roll Forming Machine / C Channel Roll Forming Machine With 1.5-3.0mm Forming Thickness

China C Section Cold Roll Forming Machine / C Channel Roll Forming Machine With 1.5-3.0mm Forming Thickness supplier
C Section Cold Roll Forming Machine / C Channel Roll Forming Machine With 1.5-3.0mm Forming Thickness supplier C Section Cold Roll Forming Machine / C Channel Roll Forming Machine With 1.5-3.0mm Forming Thickness supplier C Section Cold Roll Forming Machine / C Channel Roll Forming Machine With 1.5-3.0mm Forming Thickness supplier C Section Cold Roll Forming Machine / C Channel Roll Forming Machine With 1.5-3.0mm Forming Thickness supplier

Large Image :  C Section Cold Roll Forming Machine / C Channel Roll Forming Machine With 1.5-3.0mm Forming Thickness

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-C300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Raw Material: Galvanized Steel Sheet Forming Strcuture: Guiding Column
Forming Speed: 0-15m/min Shaft Diameter: Φ 85mm
Forming Motor: 15KW Drive Type: Chain Drive

C Section Cold Roll Forming Machine / C Channel Roll Forming Machine With 1.5-3.0mm Forming Thickness





   Main Technical Specifications





 1). 5 Ton Manual Uncoiler

  1. Machine frame: welding structure with shot lastingtreatment

  2. Components: Base, brake device, inner hole support, Expanding / tighten device

  3. Weight capacity: 5 Ton

  4. I.D: 500mm

  5. Max. coil width: 500mm

  6. O.D: Max. 1500mm



 2). Pinch Feeding & Leveling Device

  1. 2 Rollers pinch feeding, 7 rollers leveling (Upper 3 rollers, lower 4 rollers)
  2. leveling roller diameter: about Φ 90mm
  3. Leveling roller material: high grade 40Cr
  4. Heat treatment of leveling roller: surface Hi-frequency quench treatment
  5. Leveling motor power: 4KW



 3). Main Roll Forming Part

  1. Forming material thickness: 1.5-3.0mm
  2. Forming material type: GI or Carbon Steel
  3. Machine Frame: high grade steel welded and tempering treatment
  4. Shaft Material: high grade 45# steel
  5. Shaft Diameter: Φ 85mm
  6. Bearing: HRB bearing ( Top Chinese brand )
  7. Roller Material: high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm
  8. Forming Station: ≈ 16 stations
  9. Forming Speed: 0-15m/min excluding punching / cutting time
  10. Forming Motor: 15KW
  11. Drive type: Chain Drive
  12. Forming Speed: 0-15m/min



 4). Hydraulic Cutting & Hydraulic Station

  1. Cutting type: hydraulic cutting
  2. When cutting, machine stop
  3. cutting tolerance: 10m+/-1.5mm
  4. Encoder: OMRON brand
  5. Hydraulic Power: 11KW



 5). PLC Control System

  1. The entire line is controlled by imported PLC, LCD touch screen human-machine interface. People interact with the PLC. Operator by setting the program to run automatically (programmable control) to monitor and control process, to achieve the operator to control the production line and modify the control parameters, and real-time monitoring of equipment status, operating parameters and fault indication. Work piece length digital setting, work piece length adjustable. Real-time monitoring of equipment operating status and fault indication.
  2. Operation: manual / automatic. It is convenient to maintenance with the manual model and there are emergency stop bottom on it.



 6). Run-out Table

  1. Form: Steel welding structure, no-power exit rack
  2. Quantity:1 pieces





   Summary of C Purlin Roll Former



1. This C purlin roll forming machine adopt coil production material to form C Profiles through 5 Ton manual decoiler, pinch feeding, leveling rollers, main roll forming part, hydraulic cutting, hydraulic station, PLC control system and Non-power type support table.



2. The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.



3. Forming Speed: about 0-15 m/min ( excluding cutting time);





   Main Components



  • Decoiler ---------------------------------------------------------- 1 Unit
  • Pinch Feeding -------------------------------------------------- 1 Unit
  • 7 Rollers Leveling ---------------------------------------------- 1 Unit
  • Main roll forming machine ----------------------------------- 1 Unit
  • Hydraulic cutting device -------------------------------------- 1 Unit
  • Hydraulic Station ----------------------------------------------- 1 Unit
  • PLC computer control ----------------------------------------- 1 Unit
  • Output table ------------------------------------------------------ 1 Unit



   Reference Profile Drawing



C Section Cold Roll Forming Machine / C Channel Roll Forming Machine With 1.5-3.0mm Forming Thickness
C Section Cold Roll Forming Machine / C Channel Roll Forming Machine With 1.5-3.0mm Forming Thickness





   Applications



C purlin, c shaped purlin, c channel, lip channel, c section, c profile, c shape, steel c purlin, c purlin steel structure





   More Machine Pictures

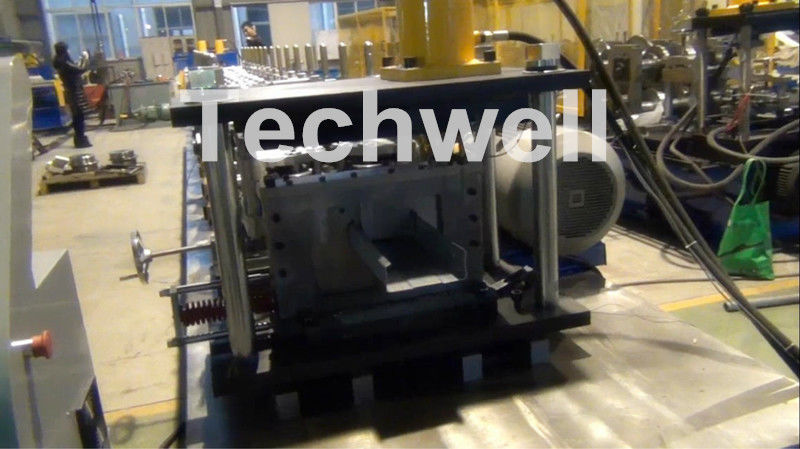

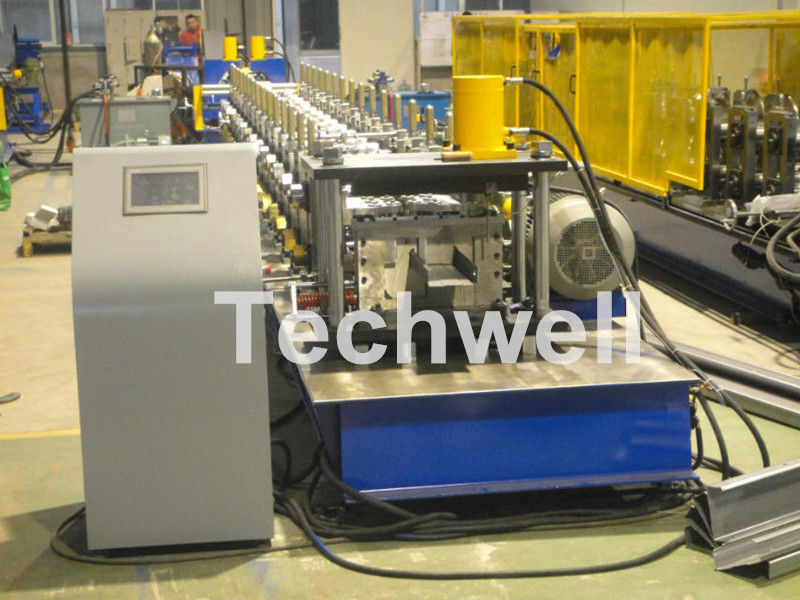

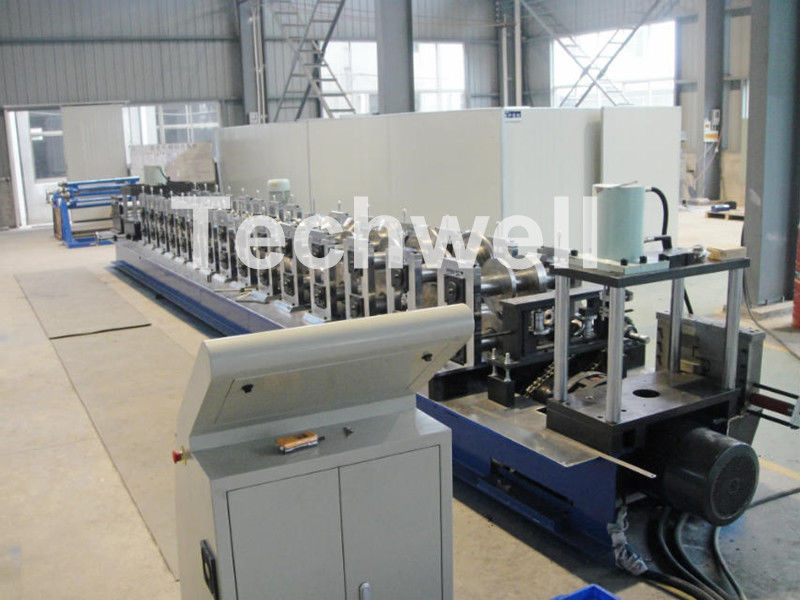

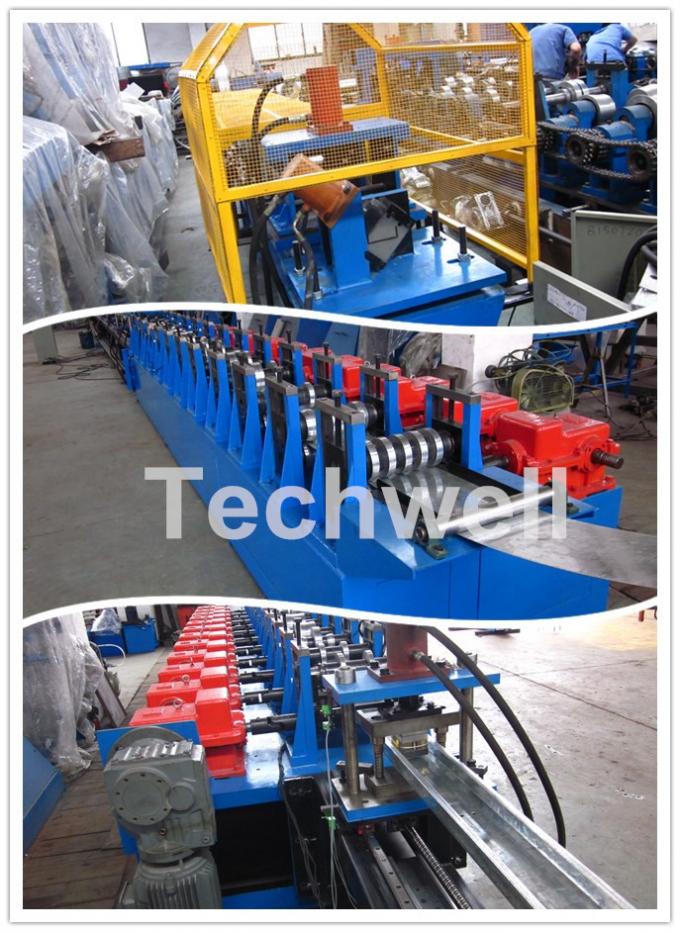

C Section Cold Roll Forming Machine / C Channel Roll Forming Machine With 1.5-3.0mm Forming Thickness
