High Productivity Z Shaped Roll Forming Machine With 0-15m/min Forming Speed , Guiding Column Machine Structure

China High Productivity Z Shaped Roll Forming Machine With 0-15m/min Forming Speed , Guiding Column Machine Structure supplier
High Productivity Z Shaped Roll Forming Machine With 0-15m/min Forming Speed , Guiding Column Machine Structure supplier High Productivity Z Shaped Roll Forming Machine With 0-15m/min Forming Speed , Guiding Column Machine Structure supplier High Productivity Z Shaped Roll Forming Machine With 0-15m/min Forming Speed , Guiding Column Machine Structure supplier High Productivity Z Shaped Roll Forming Machine With 0-15m/min Forming Speed , Guiding Column Machine Structure supplier

Large Image :  High Productivity Z Shaped Roll Forming Machine With 0-15m/min Forming Speed , Guiding Column Machine Structure

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-CZ300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Decoiler: Manual Or Hydraulic Decoiler ( Customer Can Choose ) Drive Type: 1.5' Chain Transmission
Principle Axis: 85mm Material Thickness: 1.5-3.0mm
Forming Stations: About 18 Main Rollers Main Power: 15KW

High Productivity Z Shaped Roll Forming Machine With 0-15m/min Forming Speed, Guiding Column Machine Structure





   Z Purlin Roll Former Profile Drawing

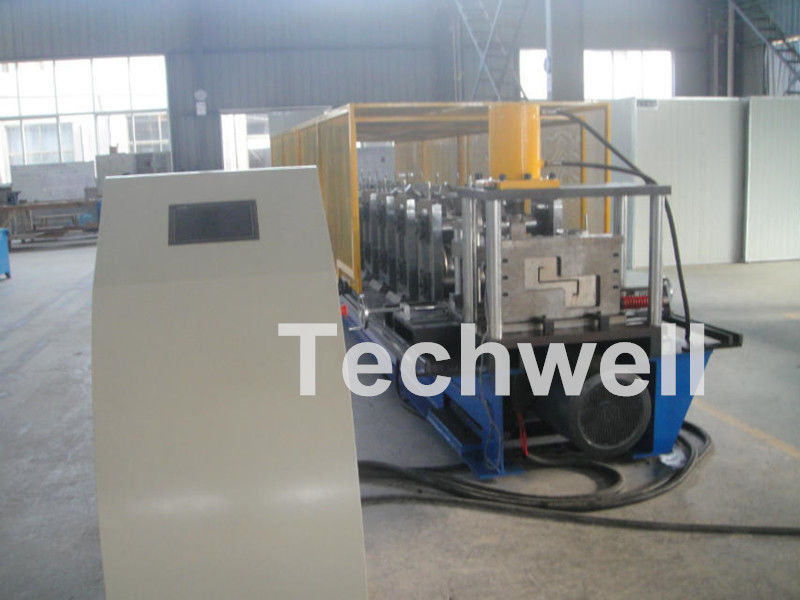

High Productivity Z Shaped Roll Forming Machine With 0-15m/min Forming Speed , Guiding Column Machine Structure
High Productivity Z Shaped Roll Forming Machine With 0-15m/min Forming Speed , Guiding Column Machine Structure





   Main Specifications



1. Coil material thickness: 1.5-3.0mm

2. Material: mild steel, GI

3. Weight capacity of decoiler: Max. 5 Ton

4. Coil width: Max. 1500mm

5. 2 rollers pinch feeding

6. 7 rollers leveling (Upper 3 roller, lower 4 rollers)

7. Leveling roller diameter: about Φ90mm

8. Motor power: about 4KW

9. Punching type: Hydraulic pre-punching type

10. Punching mould size: According to drawing

11. Hydraulic power: 11KW

12. Cutting type: Hydraulic pre-cutting

13. CuttingTolerance: +/-1.5mm

14. Encoder: OMRON Brand

15. Forming Stations: 16 Stations ( Depend on Profiles )

16. Roller material: GCr15 high grade steel ( HRC58-62 ), and roller surface with hard chrome ≥ 0.05mm

17. Diameter of shaft: Φ85mm

18. Shaft material: High grade 45# steel

19. Drive type: Chain transmission

20. Forming speed: 0-15m/min

21. Main power: 15KW





   Working Flow Chart



Decoiler → Feeding Guide → Leveling → Main Roll Forming → Hydraulic Cutting → Support Table



High Productivity Z Shaped Roll Forming Machine With 0-15m/min Forming Speed , Guiding Column Machine Structure





   Main Components



Decoiler 1 Unit
Pinch Feeding 1 Unit
7 Rollers Leveling 1 Unit
Main roll forming machine 1 Unit
Hydraulic cutting device 1 Unit
Hydraulic Station 1 Unit
PLC computer control 1 Unit
Output table 1 Unit





   Competitive Advantages



  1. High Quality
  2. Good after Service
  3. 1 Year Warranty
  4. More Than 10 Years Experience
  5. Simple to operate when assemble
  6. Easy to handle the products
  7. Direct manufacturer, provide with high quality and best price.



   More Reference Machine Pictures

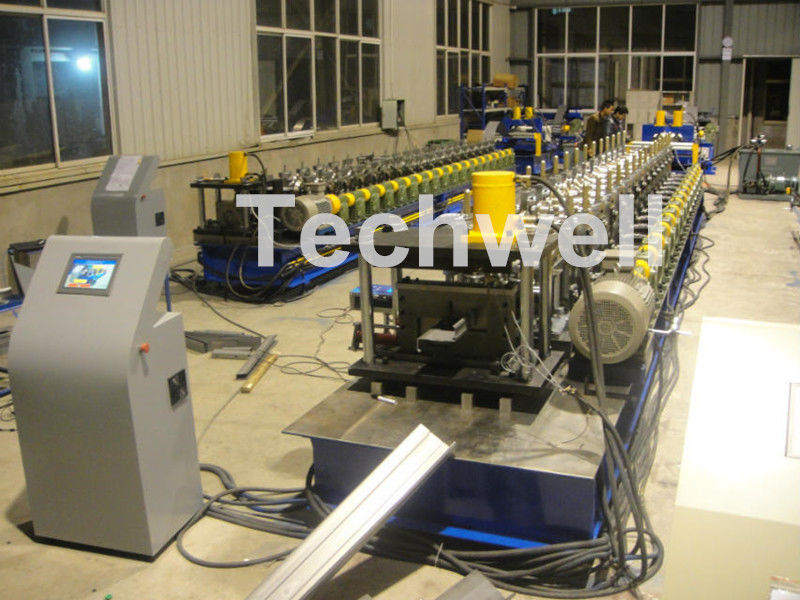

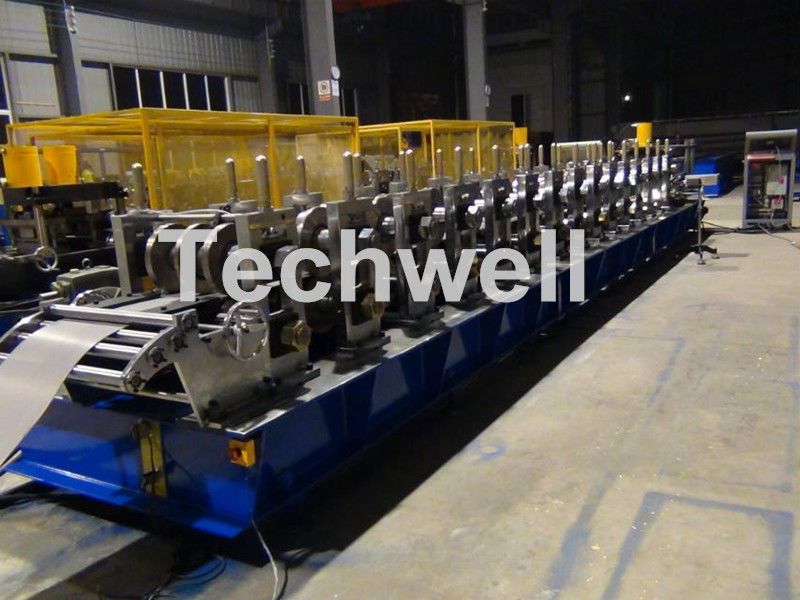

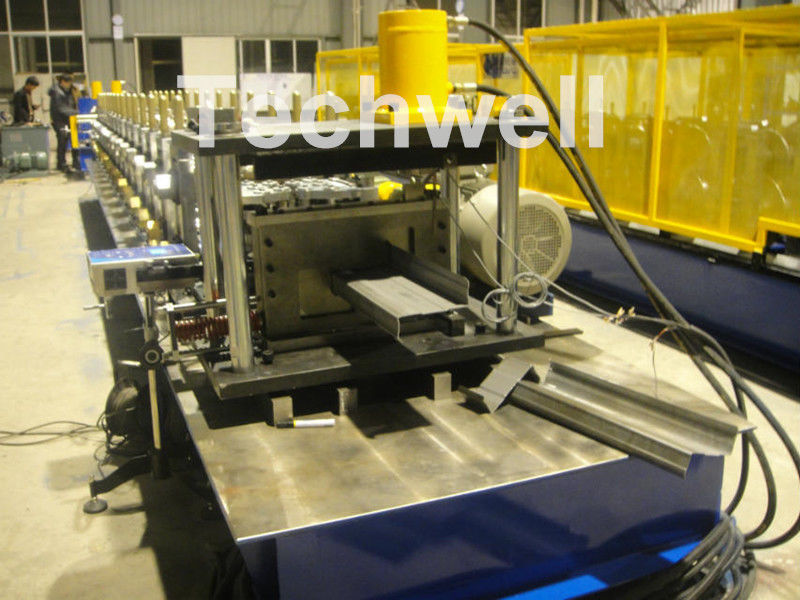

High Productivity Z Shaped Roll Forming Machine With 0-15m/min Forming Speed , Guiding Column Machine Structure





   Contacts of WUXI TECHWELL



Company

Wuxi Techwell Machinery Co., Ltd

Wuxi Techwell Industrial Co., Ltd

Website www.cold-rollformingmachine.com
www.roofrollformingmachine.com
www.wxtechwell.com
Mobile / Whatsapp / Wechat 0086-15861597732 ( Lemon Lee )
E-Mail / Skype sales@wxtechwell.com





Contact Details
Wuxi Techwell Machinery Co., Ltd

Contact Person: monica

Send your inquiry directly to us (0 / 3000)
