GI , Carbon Steel U Shape Cold Roll Forming Machine With Manual Or Hydraulic Decoiler , 10-15m/min Forming Speed

China GI , Carbon Steel U Shape Cold Roll Forming Machine With Manual Or Hydraulic Decoiler , 10-15m/min Forming Speed supplier
GI , Carbon Steel U Shape Cold Roll Forming Machine With Manual Or Hydraulic Decoiler , 10-15m/min Forming Speed supplier GI , Carbon Steel U Shape Cold Roll Forming Machine With Manual Or Hydraulic Decoiler , 10-15m/min Forming Speed supplier GI , Carbon Steel U Shape Cold Roll Forming Machine With Manual Or Hydraulic Decoiler , 10-15m/min Forming Speed supplier GI , Carbon Steel U Shape Cold Roll Forming Machine With Manual Or Hydraulic Decoiler , 10-15m/min Forming Speed supplier

Large Image :  GI , Carbon Steel U Shape Cold Roll Forming Machine With Manual Or Hydraulic Decoiler , 10-15m/min Forming Speed

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-U100

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Raw Material: GI, Carbon Steel Material Thickness: 1.5-3.0mm
Axis Diameter: 75mm Forming Station: 12 Stations
Forming Speed: 0-15m/min Electrical Control: PLC Frequency Control System

GI, Carbon Steel U Shape Cold Roll Forming Machine With Manual Or Hydraulic Decoiler, 10-15m/min Forming Speed





   Main Specifications





 1). 5 Ton Manual Uncoiler

  1. Machine frame: welding structure with shot lastingtreatment

  2. Components: Base, brake device, inner hole support, Expanding / tighten device

  3. Weight capacity: 5 Ton

  4. I.D: 500mm

  5. Max. coil width: 500mm

  6. O.D: Max. 1500mm



 2). Pinch Feeding & Leveling Device

  1. 2 Rollers pinch feeding,
  2. 7 rollers leveling (Upper 3 rollers, lower 4 rollers)



 3). Main Roll Forming Part

  1. Forming material thickness: 1.5-3.0mm
  2. Forming material type: GI or Carbon Steel
  3. Machine Frame: high grade steel welded and tempering treatment
  4. Shaft Material: high grade 45# steel
  5. Shaft Diameter: Φ 80mm
  6. Bearing: HRB bearing ( Top Chinese brand )
  7. Roller Material: high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm
  8. Forming Station: ≈ 12 stations
  9. Forming Speed: 0-15m/min excluding punching / cutting time
  10. Forming Motor: 11KW
  11. Drive type: Chain Drive
  12. Forming Speed: 0-15m/min



 4). Hydraulic Cutting & Hydraulic Station

  1. Cutting type: hydraulic cutting
  2. When cutting, machine stop
  3. cutting tolerance: 10m+/-1.5mm
  4. Encoder: OMRON brand
  5. Hydraulic Power: 5.5KW



 5). PLC Control System

  1. The entire line is controlled by imported PLC, LCD touch screen human-machine interface. People interact with the PLC. Operator by setting the program to run automatically (programmable control) to monitor and control process, to achieve the operator to control the production line and modify the control parameters, and real-time monitoring of equipment status, operating parameters and fault indication. Work piece length digital setting, work piece length adjustable. Real-time monitoring of equipment operating status and fault indication.
  2. Operation: manual / automatic. It is convenient to maintenance with the manual model and there are emergency stop bottom on it.

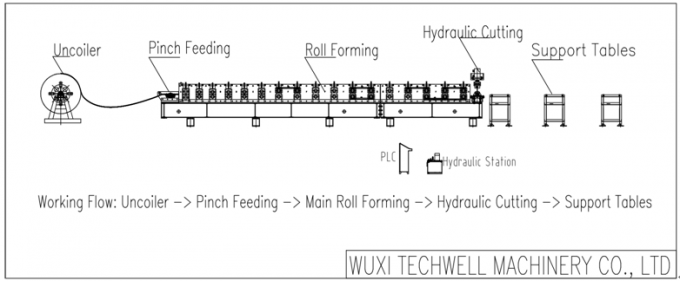

   Working Flow Chart of U Section



Decoiler --- Fedding & Leveling --- Roll Forming --- Cut-to-length --- Run out table



GI , Carbon Steel U Shape Cold Roll Forming Machine With Manual Or Hydraulic Decoiler , 10-15m/min Forming Speed





   Main Components



  • Decoiler ------------------------------------------------- 1 Unit
  • Feeding & Leveling ----------------------------------- 1 Unit
  • Main roll forming machine ----------------------------1 Unit
  • Hydraulic cutting device ------------------------------ 1 Unit
  • Hydraulic Station --------------------------------------- 1 Unit
  • PLC computer control --------------------------------- 1 Unit
  • Output table --------------------------------------------- 1 Unit



   Applications



u purlin, u shaped purlin, u channel, u section, u profile, u shape, steel u purlin,u purlin steel structure





   Competitive Advantages



  1. High Quality
  2. Good after Service
  3. 1 Year Warranty
  4. More Than 10 Years Experience
  5. Simple to operate when assemble
  6. Easy to handle the products
  7. Direct manufacturer, provide with high quality and best price.

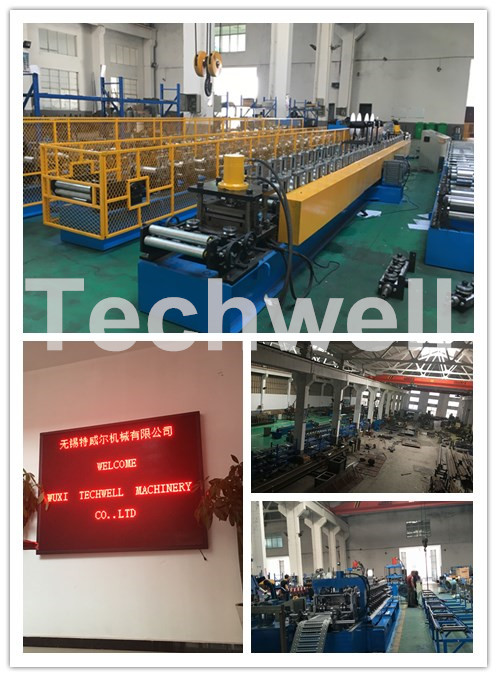

   Workshop Reference Machine Photos



GI , Carbon Steel U Shape Cold Roll Forming Machine With Manual Or Hydraulic Decoiler , 10-15m/min Forming Speed





   Contacts of WUXI TECHWELL



Company

Wuxi Techwell Machinery Co., Ltd

Wuxi Techwell Industrial Co., Ltd

Website www.cold-rollformingmachine.com
www.roofrollformingmachine.com
www.wxtechwell.com
Mobile / Whatsapp / Wechat 0086-15861597732 ( Lemon Lee )
E-Mail / Skype sales@wxtechwell.com



Contact Details
Wuxi Techwell Machinery Co., Ltd

Contact Person: monica

Send your inquiry directly to us (0 / 3000)
