380mm PU Foam Insulated Exterior Decorative Wall Panel Production Line With Coat Machine

PU Foam Insulated Exterior Decorative Wall Panel Production Line is Mainly for making Interior, Exterior Wall Cladding Panels.

The Panel Profile:

Introduction of Exterior PU Foam Decorative Wall Cladding Panel Making Machine:

• The Production line dimension: ≈ 55m * 2m * 2m ( L * W * H) excluding coat machine.
• Total power: ≈ 60KW
• Whole line adopt PLC program control, with the communication module and inverter synchronization, highly automatically. Main machine adopt touch screen, simple operation. Production line from uncoiler, roll forming, pu foaming, solidifying, automatically cutting, runout table

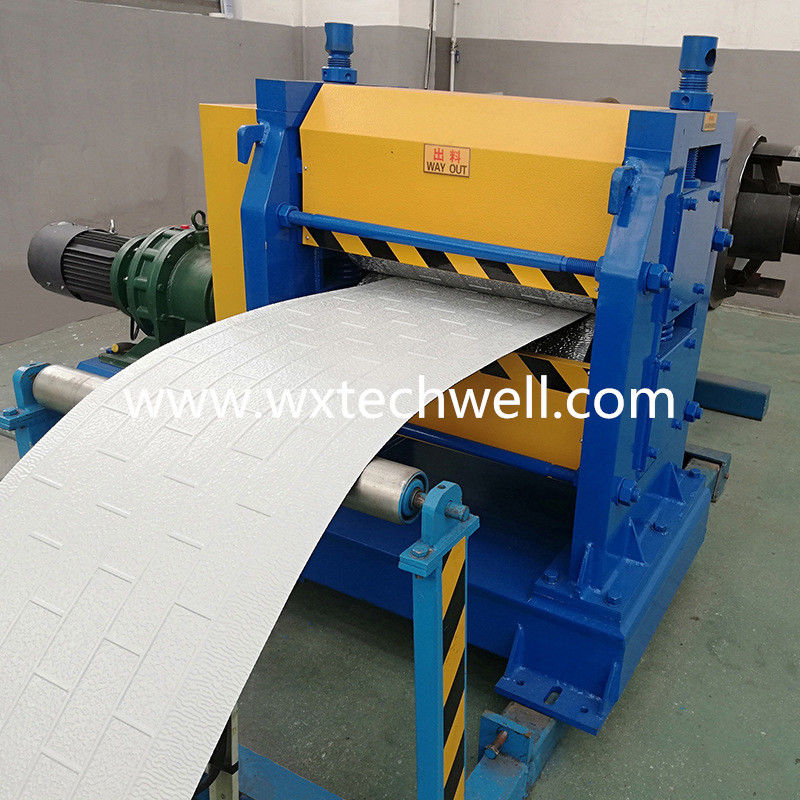

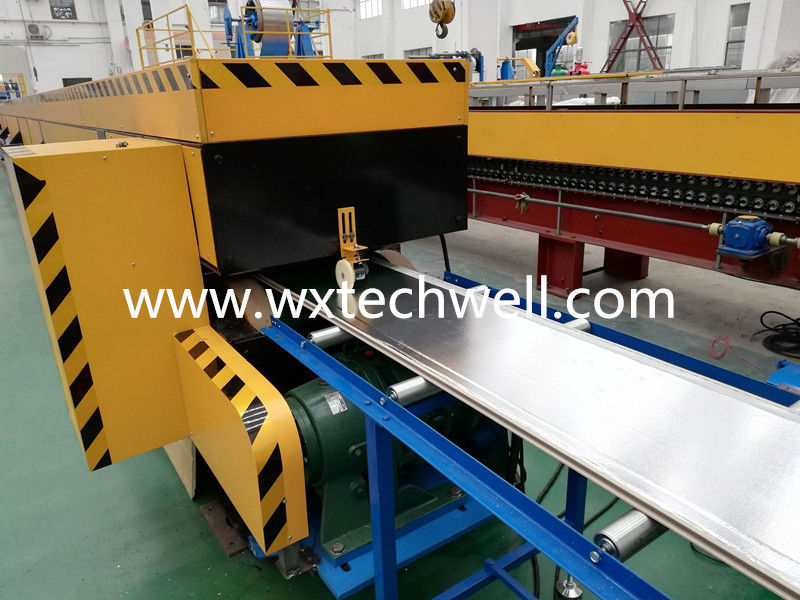

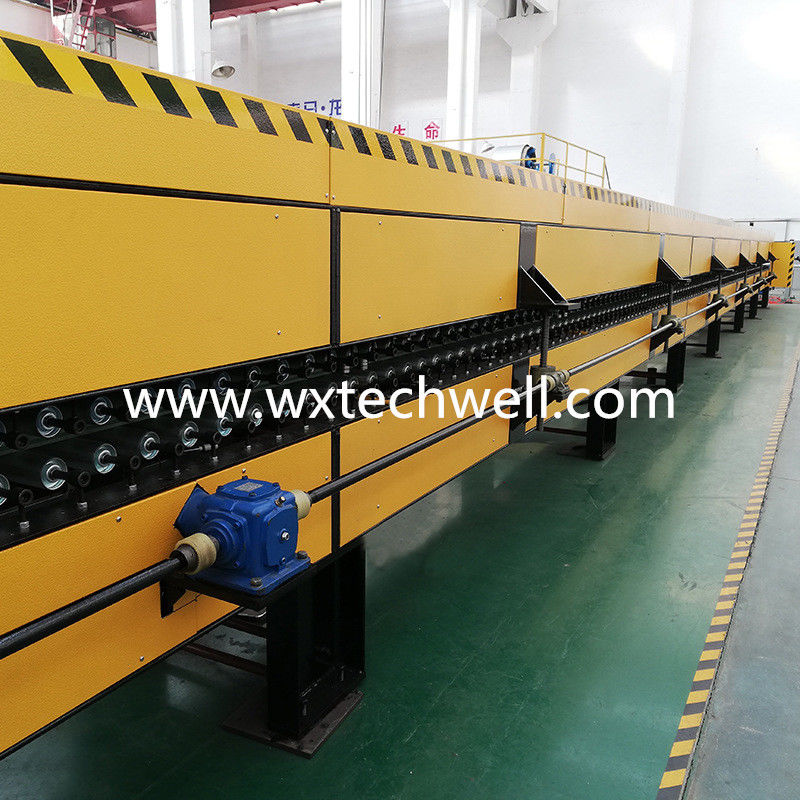

• Whole line make up ofdecoiler, embossing machine, roll forming machine, Pre-heating, 22m Belt conveyor machine, Tracking cutting, PLC control system, PU foaming machine, Hydraulic system Coating machine and run-out tables.

The Working Flow Chart of PU Foam Exterior Insulated Wall Panel Production Line:

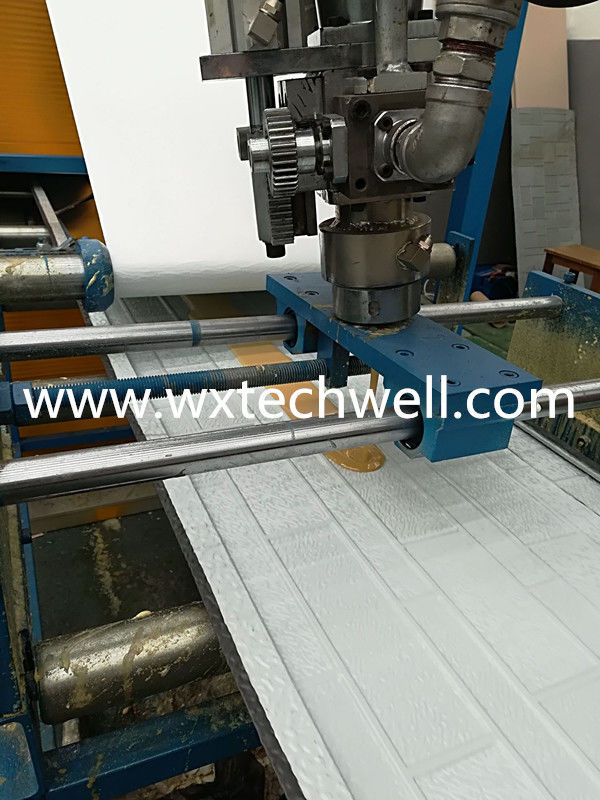

Uncoiler -----> Embossing Machine -----> Roll Forming -----> Pre-heating -----> High Pressure PU foaming -----> Aluminum foil feeding and film-covering device -----> 22m Rubber Belt Conveyor -----> PLC control system -----> Flying saw cutting ----> Runout Table

The specification of the Insulated Decorative Wall Panel Production Line:

The application of Decrative insulated wall panels:

The finished panels are the newest energy-saving and economical friendly products that can be widely used in commercial, industry and civilian buildings like the Temporary building, villa, Bungalow, office building,  countyard wall, public building, prefab house, of decorating the interior and exterior walls, ceilings, thermal insulation layer of walls, roofs of houses and icy houses etc, and also use to the re-decoration of the old buildings.
