100-600mm Perforated Cable Tray Making Machine With Hydraulic Punching Pre Cutting

100-600mm Perforated Cable Tray Making Machine With Hydraulic Punching Pre Cutting

100mm Cable Tray Making Machine

PLC Cable Tray Making Machine

Hydraulic Punching cable tray machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE, ISO

Model Number:

TW-CBT600

Contact Us

Request A Quote
Product Details
Material:
Hot-dip Galvanizing Steel Strip
Material Thickness:
1.0-2.0mm
Profile Web Size:
100-600mm
Profile Height Size:
50-100mm
Profile Size Changing:
Auto Size Changing Controlled By PLC
Forming Motor:
15KW
Machine Frame:
High Grade Steel Welded And Tempering Treatment
Forming Stations:
About 18 Stations
Product Description

100-600mm Perforated Cable Tray Making Machine With Hydraulic Punching & Pre-cutting





   Cable Tray Profile Drawings

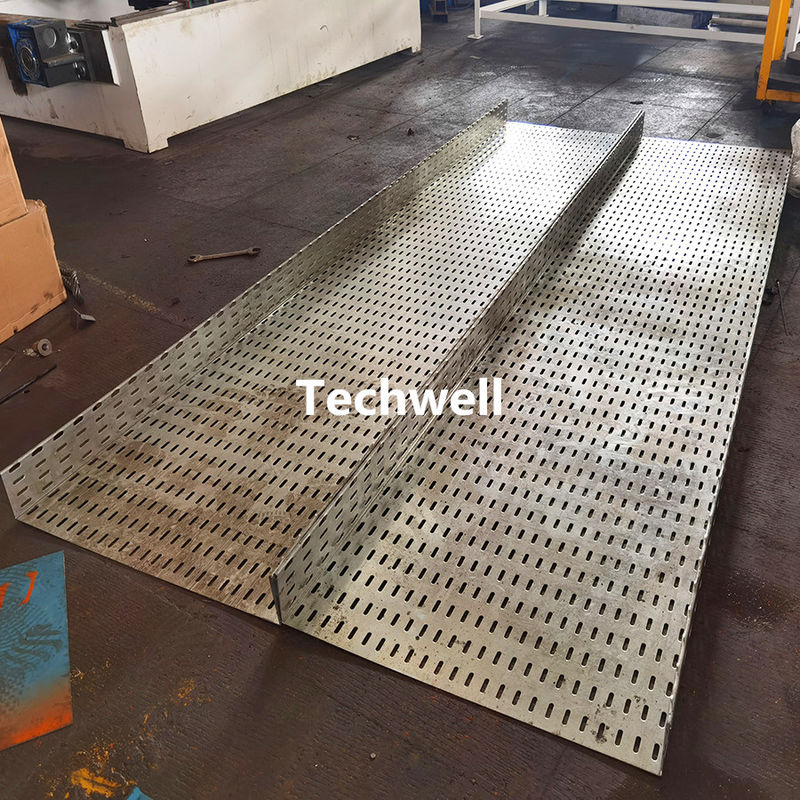

100-600mm Perforated Cable Tray Making Machine With Hydraulic Punching Pre Cutting 0

100-600mm Perforated Cable Tray Making Machine With Hydraulic Punching Pre Cutting 1











   Introduction



Cable Tray making machine line is commonly used for cable management in commercial and industrial construction. This roll former could produce different types of cable trays with web size 100-600mm, height 50-100mm, such as, Solid bottom cable tray, Trough cable tray, Channel cable tray, Perforated cable tray, Non perforated cable tray and Trunking cable tray etc. The profile is with different raw materials such as, hot-dip galvanized steel, pre-galvanized steel, hot-rolled and cold-rolled steel, stainless steel and aluminum. Normally Thickness range of material is from 0.6mm to 1.2mm or 1.0mm - 2.0 mm, even uptp 2.5mm. You could set up 10 different lengths for cable tray. Our roll forming machine could produce wide range of sizes, and automatically change by motors from one size to the other not only at width but also at height. The only step is put your required data into our touch screen and wait for few seconds. And other wise innovation is that one machine could make cable trays and covers of corresponding size. Change time is only 30 minutes, easy to operate, low-cost and save area. We have experience of exporting our cable tray roll formers to Argentina, Russia, Australia etc.



Cable tray roll forming machine is used to produce sheet metal by continuous cold rolling.This type of colored tile forming machine is composed decoiler, Pront-cutting device, feeding device, machine base, punching device, roll forming unit, and back- cutting device, run out table, hydraulic system and electronic control system.





   Main Technical Specifications



Raw Material Cold-Rolled Steel, Hot-Rolled Steel
Yield Strength 235 Mpa
Thickness 1.0-2.0 mm
Raw Material Coil According to different type cable tray
Plate Length 3 Meters
Coil ID Φ508±20 mm
Coil OD ≤Φ1100 mm
Coil Weight ≤ 5 Tons
Roll Forming Speed 0-10 M/min (according to Plate Length 6 meters)
Length Tolerance ±2 mm
Power Source 380 V±10%, 50-60 Hz (according to buyer’s request)
Total Power About 45 KW



   Main Components



Decoiler 1 Unit
Leveling Machine 1 Unit
Punching; Marking; Cutting Machine 1 Unit
Transmission table 1 Unit
Roll Former 1 Unit
Un-powered Support Table 1 Unit
Hydraulic Drive Control System 1 Unit
Electric Control System 1 Unit
Control Panel System 1 Unit



   Reference Cable Tray Making Machine Pictures

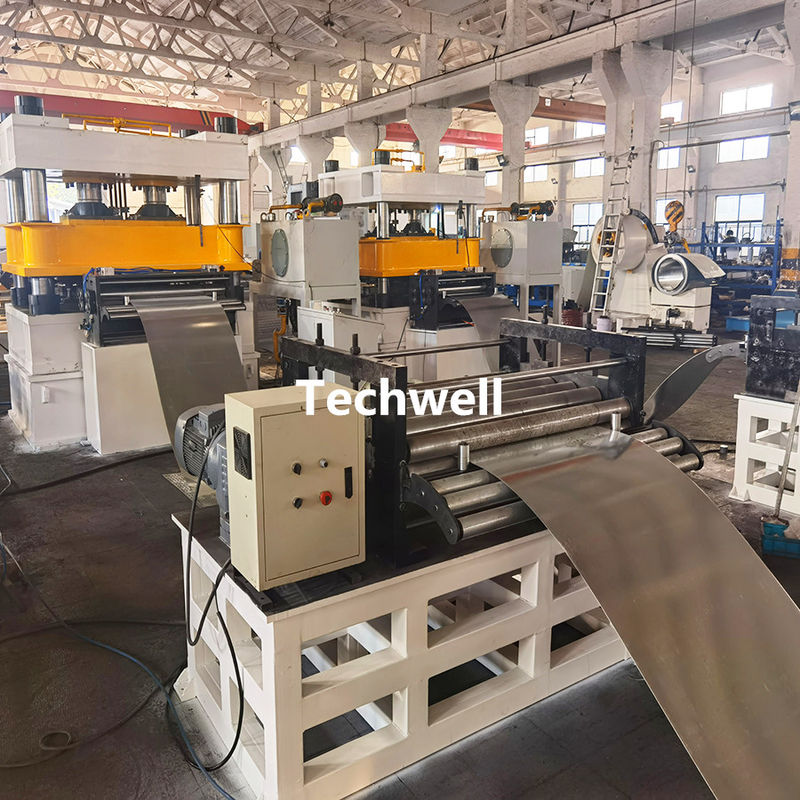

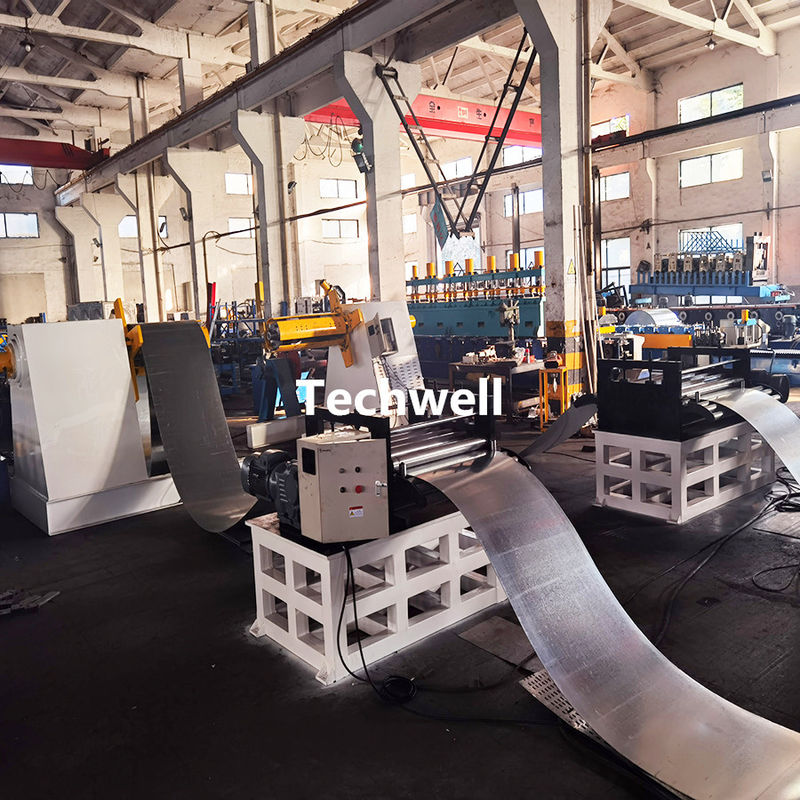

100-600mm Perforated Cable Tray Making Machine With Hydraulic Punching Pre Cutting 2

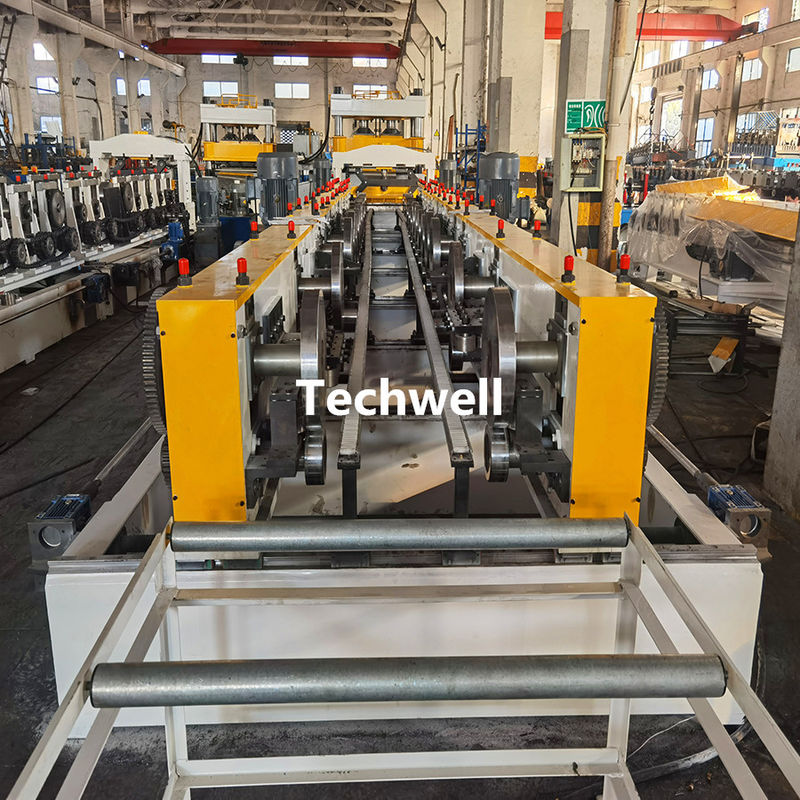

100-600mm Perforated Cable Tray Making Machine With Hydraulic Punching Pre Cutting 3
