Cable Ladder making machines, cable Ladder roll forming machine, cable tray production line from Wuxi Techwell Industrial factory make different sizes of cable trays, for examle the cable tray profile web width from 100-600mm, height from 50-100mm. It is easy to change one size to the other size by moving whole line rollers.
A cable tray system is used to support insulated electrical cables used for power distribution, control and communication. Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction.
Cable Ladder Profile Drawings
Introduction
Cable Tray making machine line is commonly used for cable management in commercial and industrial construction. This roll former could produce different types of cable trays with web size 100-600mm, height 50-100mm, such as, Solid bottom cable tray, Trough cable tray, Channel cable tray, Perforated cable tray, Non perforated cable tray and Trunking cable tray etc. The profile is with different raw materials such as, hot-dip galvanized steel, pre-galvanized steel, hot-rolled and cold-rolled steel, stainless steel and aluminum. Normally Thickness range of material is from 0.6mm to 1.2mm or 1.0mm - 2.0 mm, even uptp 2.5mm. You could set up 10 different lengths for cable tray. Our roll forming machine could produce wide range of sizes, and automatically change by motors from one size to the other not only at width but also at height. The only step is put your required data into our touch screen and wait for few seconds. And other wise innovation is that one machine could make cable trays and covers of corresponding size. Change time is only 30 minutes, easy to operate, low-cost and save area. We have experience of exporting our cable tray roll formers to Argentina, Russia, Australia etc.
Cable tray roll forming machine is used to produce sheet metal by continuous cold rolling.This type of colored tile forming machine is composed decoiler, Pront-cutting device, feeding device, machine base, punching device, roll forming unit, and back- cutting device, run out table, hydraulic system and electronic control system.
Layout of Cable Ladder Production Line
Main Technical Specifications
| Raw Material | Cold-Rolled Steel, Hot-Rolled Steel |
| Yield Strength | 235 Mpa |
| Thickness | 1.0-2.0 mm |
| Raw Material Coil | According to different type cable tray |
| Plate Length | 3 Meters |
| Coil ID | Φ508±20 mm |
| Coil OD | ≤Φ1100 mm |
| Coil Weight | ≤ 5 Tons |
| Roll Forming Speed | 0-10 M/min (according to Plate Length 6 meters) |
| Length Tolerance | ±2 mm |
| Power Source | 380 V±10%, 50-60 Hz (according to buyer’s request) |
| Total Power | About 45 KW |
Main Components
| Decoiler | 1 Unit |
| Leveling Machine | 1 Unit |
| Punching; Marking; Cutting Machine | 1 Unit |
| Roll Former with cutting device | 1 Unit |
| Un-powered Support Table | 1 Unit |
| Hydraulic Drive Control System | 1 Unit |
| Electric Control System | 1 Unit |
| Control Panel System | 1 Unit |

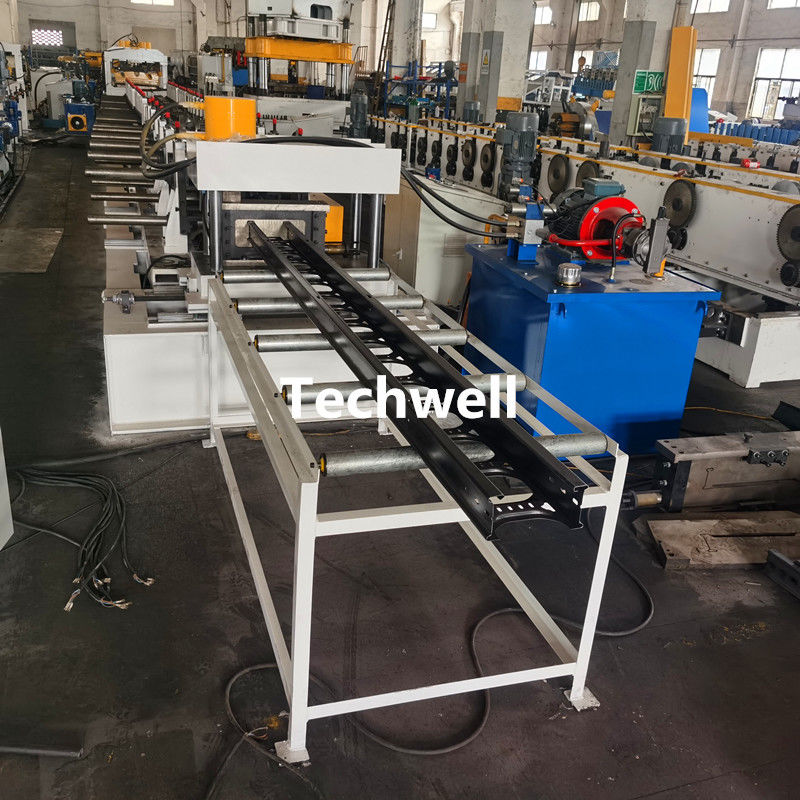

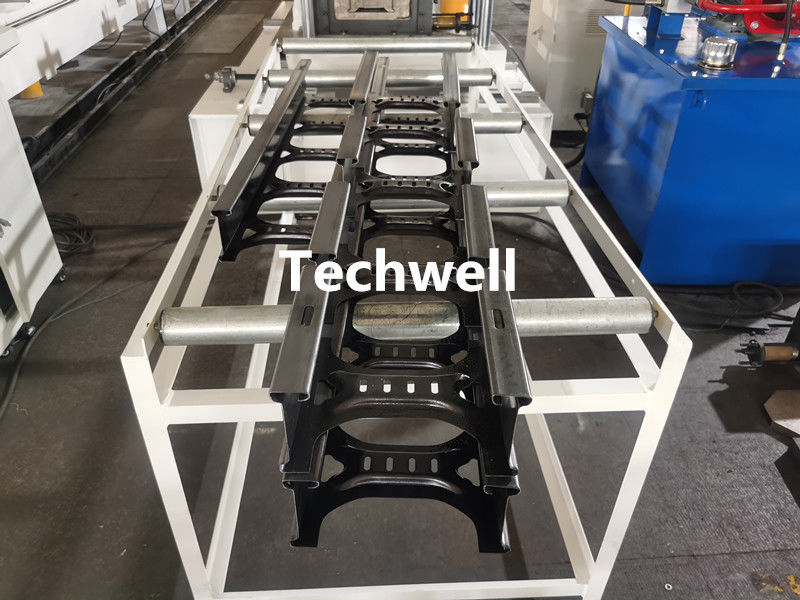

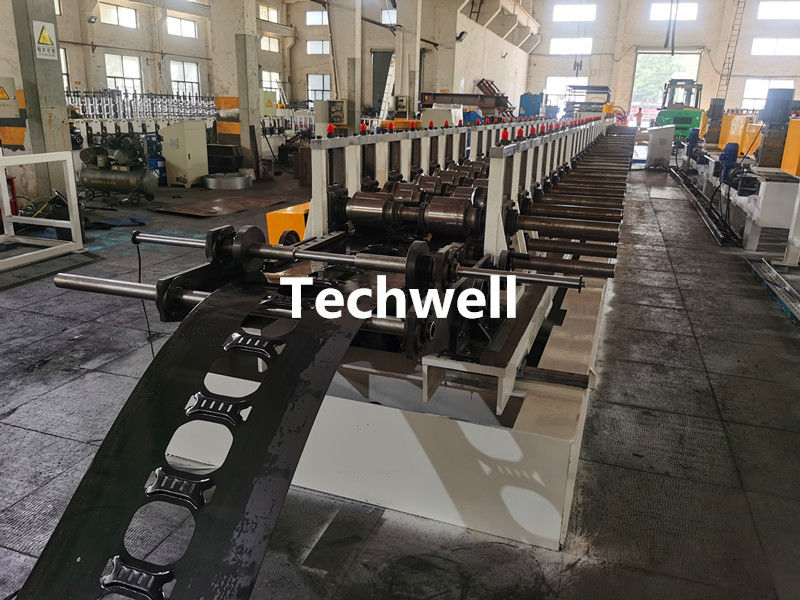

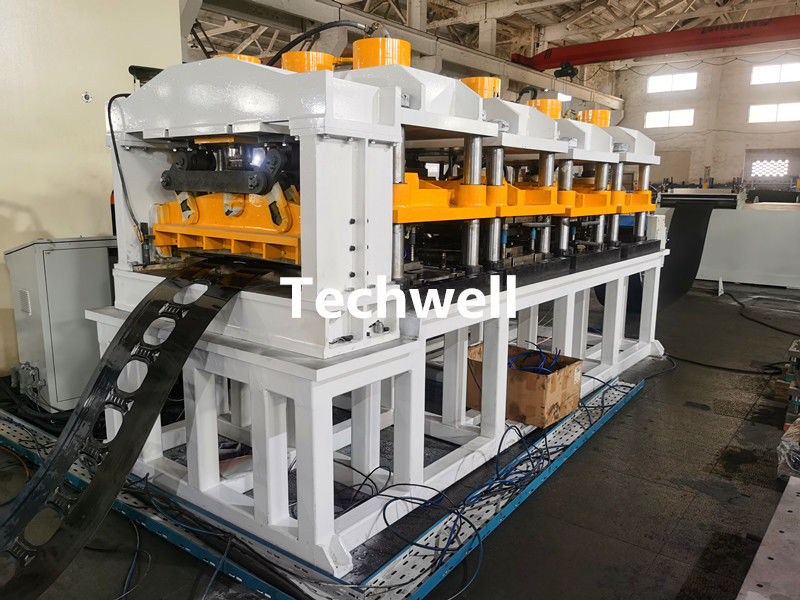

Reference Cable Tray Making Machine Pictures
